5.18 Insulation Characteristics Curves

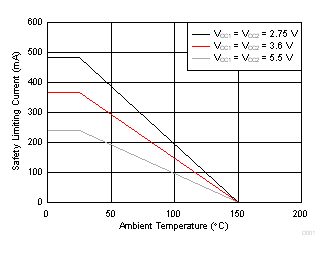

ISO7710 Thermal Derating Curve for Limiting Current per VDE for DW-16 PackageFigure 5-1 Thermal Derating Curve for Limiting Current per VDE for DW-16 Package

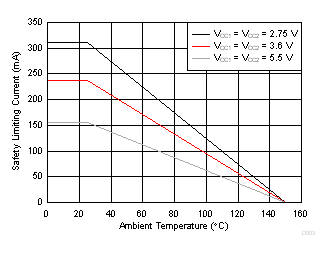

ISO7710 Thermal Derating Curve for Limiting Current per VDE for D-8 PackageFigure 5-3 Thermal Derating Curve for Limiting Current per VDE for D-8 Package

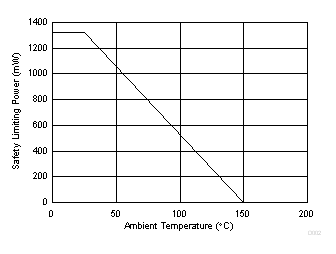

ISO7710 Thermal Derating Curve for Limiting Power per VDE for DW-16 PackageFigure 5-2 Thermal Derating Curve for Limiting Power per VDE for DW-16 Package

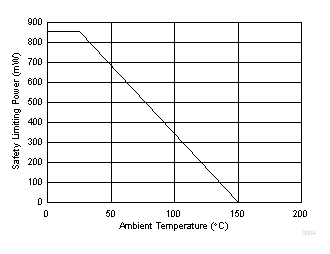

ISO7710 Thermal Derating Curve for Limiting Power per VDE for D-8 PackageFigure 5-4 Thermal Derating Curve for Limiting Power per VDE for D-8 Package
