Specifications

Absolute Maximum Ratings

see (1)
MIN MAX UNIT
VCC1, VCC2 Supply voltage(2) –0.5 6 V
VIO Voltage at INx, OUTx –0.5 VCC + 0.5(3) V
IO Output current –15 15 mA
TJ(Max) Maximum junction temperature 150 °C
Tstg Storage temperature –65 150 °C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltage values except differential I/O bus voltages are with respect to network ground terminal and are peak voltage values.
Maximum voltage must not exceed 6 V.

ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±4000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±1500
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

Recommended Operating Conditions

MIN NOM MAX UNIT
VCC1, VCC2 Supply voltage 2.7 5.5 V
IOH High-level output current (VCC ≥ 3 V) –4 mA
High-level output current (VCC < 3 V) -2 mA
IOL Low-level output current 4 mA
VIH High-level input voltage 2 5.5 V
VIL Low-level input voltage 0 0.8 V
tui Input pulse duration ≥ 4.5-V Operation 20 ns
< 4.5-V Operation 25
1 / tui Signaling rate ≥ 4.5-V Operation 0 50 Mbps
< 4.5-V Operation 0 40
TJ (1) Junction temperature –40 136 °C
TA Ambient temperature -40 25 125 °C
To maintain the recommended operating conditions for TJ, see the Power Dissipation Characteristics table.

Thermal Information

THERMAL METRIC(1) ISO7420FCC UNIT
D (SOIC)
8 PINS
RθJA Junction-to-ambient thermal resistance 115.1 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 60.1 °C/W
RθJB Junction-to-board thermal resistance 56.4 °C/W
ψJT Junction-to-top characterization parameter 17.2 °C/W
ψJB Junction-to-board characterization parameter 55.8 °C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

Electrical Characteristics: VCC1 and VCC2 = 5 V ± 10%

TA = –40°C to 125°C
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VOH High-level output voltage IOH = –4 mA; see Figure 12. VCC2 – 0.5 4.8 V
IOH = –20 μA; see Figure 12. VCC2 – 0.1 5
VOL Low-level output voltage IOL = 4 mA; see Figure 12. 0.2 0.4 V
IOL = 20 μA; see Figure 12. 0 0.1
VI(HYS) Input threshold voltage hysteresis 450 mV
IIH High-level input current INx = VCC1 10 μA
IIL Low-level input current INx = 0 V –10 μA
CMTI Common-mode transient immunity VI = VCC1 or 0 V; see Figure 14. 25 60 kV/μs
SUPPLY CURRENT (ALL INPUTS SWITCHING WITH SQUARE WAVE CLOCK SIGNAL FOR DYNAMIC ICC MEASUREMENT)
ICC1 Supply current for VCC1 and VCC2 DC to 1 Mbps DC Input: VI = VCC1 or 0 V,
AC Input: CL = 15pF
0.5 1.1 mA
ICC2 3 4.6
ICC1 10 Mbps CL = 15pF 1 1.5
ICC2 4 6
ICC1 25 Mbps 1.7 2.5
ICC2 6 8.5
ICC1 50 Mbps 2.7 4
ICC2 8.5 12

Electrical Characteristics: VCC1 and VCC2 = 3.3 V ± 10%

TA = –40°C to 125°C
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VOH High-level output voltage IOH = –4 mA; see Figure 12. VCC2 – 0.5 3 V
IOH = –20 μA; see Figure 12. VCC2 – 0.1 3.3
VOL Low-level output voltage IOL = 4 mA; see Figure 12. 0.2 0.4 V
IOL = 20 μA; see Figure 12. 0 0.1
VI(HYS) Input threshold voltage hysteresis 425 mV
IIH High-level input current INx = VCC1 10 μA
IIL Low-level input curre INx = 0 V -10 μA
CMTI Common-mode transient immunity VI = VCC1 or 0 V; see Figure 14. 25 40 kV/μs
SUPPLY CURRENT (ALL INPUTS SWITCHING WITH SQUARE WAVE CLOCK SIGNAL FOR DYNAMIC ICC MEASUREMENT)
ICC1 Supply current for VCC1 and VCC2 DC to 1 Mbps DC Input: VI = VCC1 or 0 V,
AC Input: CL = 15pF
0.3 0.8 mA
ICC2 2.4 3.3
ICC1 10 Mbps CL = 15pF 0.6 1.2
ICC2 3.1 4.5
ICC1 25 Mbps 1 2
ICC2 4.2 6.1
ICC1 40 Mbps 1.3 2.3
ICC2 5.3 7.5

Electrical Characteristics: VCC1 and VCC2 = 2.7 V

TA = –40°C to 125°C
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VOH High-level output voltage IOH = –2 mA; see Figure 12. VCC2 – 0.3 2.5 V
IOH = –20 μA; see Figure 12. VCC2 – 0.1 2.7
VOL Low-level output voltage IOL = 4 mA; see Figure 12. 0.2 0.4 V
IOL = 20 μA; see Figure 12. 0 0.1
VI(HYS) Input threshold voltage hysteresis 350 mV
IIH High-level input current INx = VCC1 10 μA
IIL Low-level input current INx = 0 V –10 μA
CMTI Common-mode transient immunity VI = VCC1 or 0 V; see Figure 14. 25 35 kV/μs
SUPPLY CURRENT (ALL INPUTS SWITCHING WITH SQUARE WAVE CLOCK SIGNAL FOR DYNAMIC ICC MEASUREMENT)
ICC1 Supply current for VCC1 and VCC2 DC to 1 Mbps DC Input: VI = VCC1 or 0 V,
AC Input: CL = 15pF
0.15 0.4 mA
ICC2 2.1 3.1
ICC1 10 Mbps CL = 15pF 0.4 0.7
ICC2 2.7 4
ICC1 25 Mbps 0.7 1.2
ICC2 3.6 5
ICC1 40 Mbps 1 1.7
ICC2 4.4 6.3

Power Dissipation Characteristics

THERMAL METRIC ISO7420FCC UNIT
D (SOIC)
8 PINS
PD Device power dissipation VCC1 = VCC2 = 5.5 V, TJ = 150°C, CL = 15 pF,
Input a 50-Mbps 50% duty-cycle square wave
120 mW

Switching Characteristics: VCC1 and VCC2 = 5 V ± 10%

TA = –40°C to 125°C
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tPLH, tPHL Propagation delay time See Figure 12. 10 20 37 ns
PWD(1) Pulse width distortion |tPHL – tPLH| 2.5 5 ns
tsk(o) (2) Channel-to-channel output skew time 2 ns
tsk(pp) (3) Part-to-part skew time 12 ns
tr Output signal rise time See Figure 12. 2.5 ns
tf Output signal fall time 2.5 ns
tGS Pulse width of glitches suppressed by the input filter 12 ns
tfs Fail-safe output delay time from input data or power loss See Figure 13. 8 μs
Also known as pulse skew.
tsk(o) is the skew between outputs of a single device with all driving inputs connected together and the outputs switching in the same direction while driving identical loads.
tsk(pp) is the magnitude of the difference in propagation delay times between any terminals of different devices switching in the same direction while operating at identical supply voltages, temperature, input signals and loads.

Switching Characteristics: VCC1 and VCC2 = 3.3 V ± 10%

over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tPLH, tPHL Propagation delay time See Figure 12. 10 22 40 ns
PWD(1) Pulse width distortion |tPHL – tPLH| 3 ns
tsk(o) (2) Channel-to-channel output skew time 2 ns
tsk(pp) (3) Part-to-part skew time 19 ns
tr Output signal rise time See Figure 12. 3 ns
tf Output signal fall time 3 ns
tGS Pulse width of glithes suppressed by the input filter 12.5 ns
tfs Fail-safe output delay time from input power loss See Figure 13. 8 μs
Also known as pulse skew.
tsk(o) is the skew between outputs of a single device with all driving inputs connected together and the outputs switching in the same direction while driving identical loads.
tsk(pp) is the magnitude of the difference in propagation delay times between any terminals of different devices switching in the same direction while operating at identical supply voltages, temperature, input signals and loads.

Switching Characteristics: VCC1 and VCC2 = 2.7 V

TA = –40°C to 125°C
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tPLH, tPHL Propagation delay time See Figure 12. 15 26 45 ns
PWD(1) Pulse width distortion |tPHL – tPLH| 3 ns
tsk(o) (2) Channel-to-channel output skew time 2 ns
tsk(pp) (3) Part-to-part skew time 22 ns
tr Output signal rise time See Figure 12. 3 ns
tf Output signal fall time 3 ns
tGS Pulse width of glitches suppressed by the input filter 13.5 ns
tfs Fail-safe output delay time from input power loss See Figure 13. 8 μs
Also known as pulse skew.
tsk(o) is the skew between outputs of a single device with all driving inputs connected together and the outputs switching in the same direction while driving identical loads.
tsk(pp) is the magnitude of the difference in propagation delay times between any terminals of different devices switching in the same direction while operating at identical supply voltages, temperature, input signals and loads.

Typical Characteristics

ISO7420FCC C001_SLLSED3.png Figure 1. Supply Current Per Channel vs Data Rate

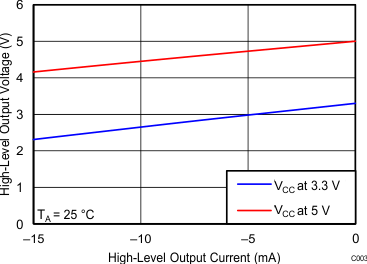

ISO7420FCC C003_SLLSED3.gif Figure 3. High-Level Output Voltage vs High-Level Output Current
ISO7420FCC C005_SLLSED3.png Figure 5. VCC1 and VCC2 Undervoltage Threshold vs Free-Air Temperature

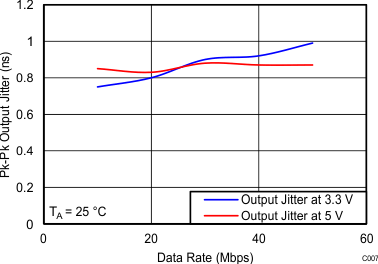

ISO7420FCC C007_SLLSED3.gif Figure 7. Output Jitter vs Data Rate
ISO7420FCC C002_SLLSED3.png Figure 2. Supply Current for Both Channels vs Data Rate

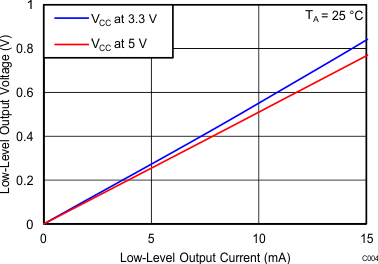

ISO7420FCC C004_SLLSED3.gif Figure 4. Low-Level Output Voltage vs Low-Level Output Current
ISO7420FCC C006_SLLSED3.png Figure 6. Propagation Delay Time vs Free-Air Temperature

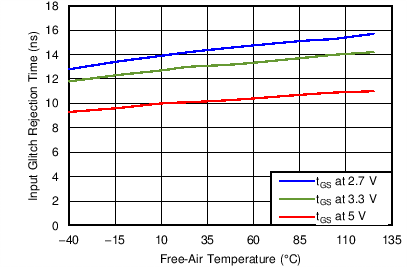

ISO7420FCC C008_SLLSED3.png Figure 8. Input Glitch Suppression Time vs Free-Air Temperature
ISO7420FCC typ_eye_at_50_Mbps_5_SLLSED3.png Figure 9. Eye Diagram at 50 Mbps, 5V at 25°C
ISO7420FCC typ_eye_at_40_Mbps_2_SLLSED3.png Figure 11. Eye Diagram at 40 Mbps, 2.7V at 25°C
ISO7420FCC typ_eye_at_40_Mbps_3_SLLSED3.png Figure 10. Eye Diagram at 40 Mbps, 3.3V at 25°C
