7 Parameter Measurement Information

ISO7320C ISO7320FC ISO7321C ISO7321FC switch_test_circuit_sllsek8.gif
1. The input pulse is supplied by a generator having the following characteristics: PRR ≤ 50 kHz, 50% duty cycle, tr ≤ 3 ns, tf ≤ 3 ns, ZO = 50 Ω. At the input, a 50-Ω resistor is required to terminate the Input Generator signal. It is not needed in actual application.
2. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
Figure 11. Switching Characteristic Test Circuit and Voltage Waveforms
ISO7320C ISO7320FC ISO7321C ISO7321FC failsafe_LLSE83.gif
A. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
Figure 12. Fail-Safe Output Delay-Time Test Circuit and Voltage Waveforms

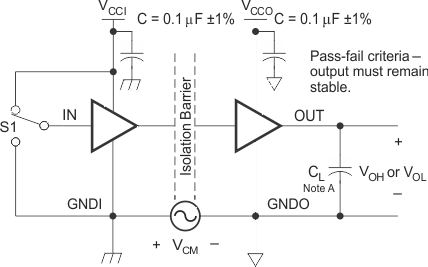

ISO7320C ISO7320FC ISO7321C ISO7321FC com_tran_imm_test_circ_sllsek9.gif
1. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
Figure 13. Common-Mode Transient Immunity Test Circuit
