Insulation Characteristics Curves

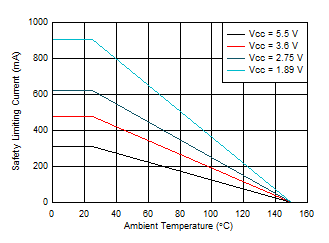

Figure 6-1 Thermal Derating Curve for Safety Limiting Current for DW-16 Package

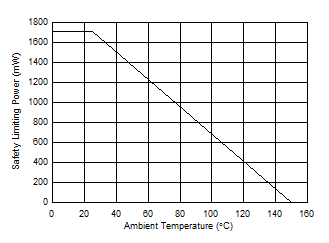

Figure 6-2 Thermal Derating Curve for Safety Limiting Power for DW-16 Package
