Detailed Design Procedure

Unlike optocouplers, which require external components to improve performance, provide bias, or limit current, the ISO6731 device only requires two external bypass capacitors to operate.

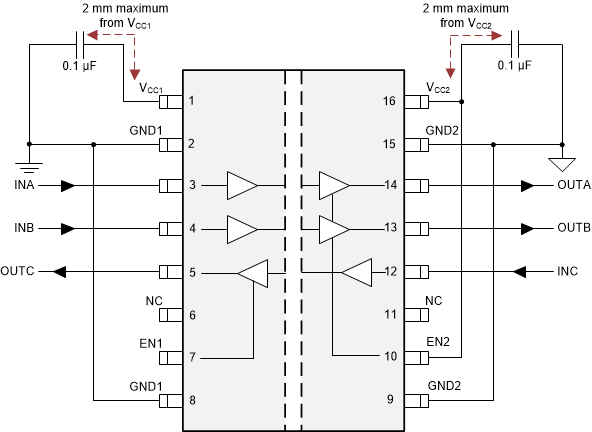

GUID-20201229-CA0I-VT5C-QRZR-MZNSH5ZSGCP4-low.gifFigure 9-2 Typical ISO6731 Circuit Hook-up
