6.7 Typical Characteristics

At TA = 25°C, VS = 12 V, VCM = 12 V, and VSENSE = 100 mV, unless otherwise noted.
INA901-SP tc_g-frq_cl1k_bos938.gif
CLOAD = 1000 pF
Figure 1. Gain vs Frequency

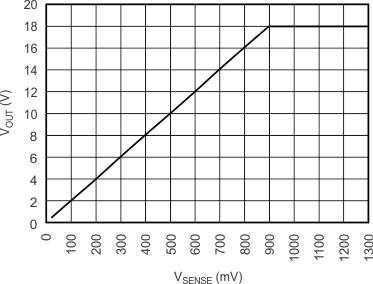

INA901-SP tc_gplot_bos938.gif
VS = 18 V
Figure 3. Gain Plot

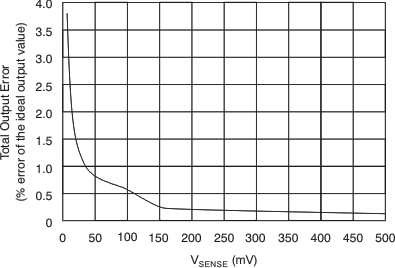

INA901-SP tc_err-vsense_bos381.gif
Figure 5. Total Output Error vs VSENSE
INA901-SP tc_pos_swing-io_bos381.gif
Figure 7. Positive Output Voltage Swing vs Output Current
INA901-SP tc_iq-vcm_bos381.gif
Figure 9. Quiescent Current vs Common-Mode Voltage
INA901-SP tc_histo_bos381.gif
Figure 11. PRE OUT Output Resistance Production Distribution
INA901-SP tc_step_sm_bos381.gif
Figure 13. Small-Signal Step Response
(10-mV to 20-mV Input)
INA901-SP tc_g-frq_cl0_bos938.gif
CLOAD = 1000 pF CLOAD = 0 pF
Figure 2. Gain vs Frequency
INA901-SP tc_cmrr_psrr-frq_bos381.gif
Figure 4. Common-Mode and Power-Supply Rejection vs Frequency
INA901-SP tc_err-vcm_bos381.gif
Figure 6. Output Error vs Common-Mode Voltage
INA901-SP tc_iq-vo_bos381.gif
Figure 8. Quiescent Current vs Output Voltage
INA901-SP tc_cur-vs_bos381.gif
Figure 10. Output Short-Circuit Current vs Supply Voltage
INA901-SP tc_buf_g-frq_bos381.gif
Figure 12. Buffer Gain vs Frequency

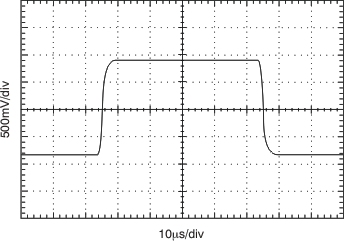

INA901-SP tc_step_lg_bos381.gif
Figure 14. Large-Signal Step Response
(10-mV to 100-mV Input)
