Application Curve

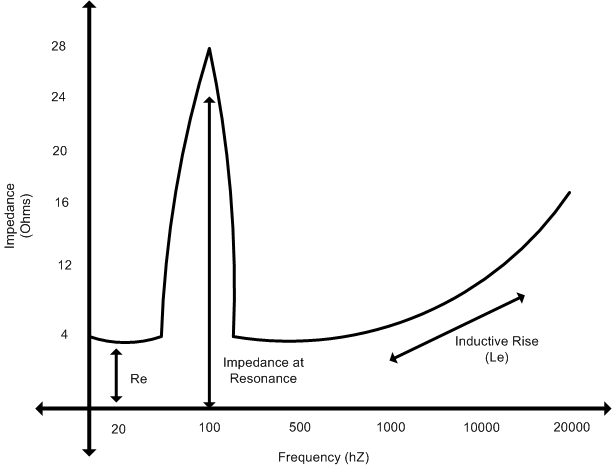

A typical example output response of speaker of 4-Ω impedance measurement from 20 Hz to 20 kHz is as shown in Figure 44.

INA253 FigAudioApps.gifFigure 44. Speaker Impedance Measurement
