7 Specifications

7.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted) (1)
MIN MAX UNIT
Supply voltage VS 18 V
Current-shunt monitor analog inputs, VIN+ and VIN– Differential (VIN+) – (VIN–) –18 18 V
Common-mode –16 80 V
Comparator analog input CMP1 IN+, CMP1 IN-/0.6-V REF, CMP2 IN+, CMP2 IN-/0.6-V REF GND – 0.3 (VS) + 0.3 V
Comparator reset CMP1 RESET GND – 0.3 (VS) + 0.3
Analog output OUT GND – 0.3 (VS) + 0.3 V
Comparator output CMP1 OUT, CMP2 OUT GND – 0.3 (VS) + 0.3 V
1.2-V REF and CMP2 DELAY pins GND – 0.3 (VS) up to 10 V
Input current into any pin 5 mA
Operating temperature –55 150 °C
Junction temperature 150 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per AEC Q100-002(1) ±2000 V
Charged-device model (CDM), per AEC Q100-011 ±500
(1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
VCM Common-mode input voltage –16 12 80 V
VS Operating supply voltage 2.7 12 18 V
TA Operating free-air temperature –40 25 125 ºC

7.4 Thermal Information

THERMAL METRIC(1) INA203-Q1 UNIT
PW (TSSOP)
14 PINS
RθJA Junction-to-ambient thermal resistance 112.6 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 37.2 °C/W
RθJB Junction-to-board thermal resistance 55.4 °C/W
ψJT Junction-to-top characterization parameter 2.7 °C/W
ψJB Junction-to-board characterization parameter 54.7 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 150 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics: Current-Shunt Monitor

At TA = 25°C, VS = 12 V, VCM = 12 V, VSENSE = 100 mV, RL = 10 kΩ to GND, RPULL-UP = 5.1 kΩ each connected from CMP1 OUT and CMP2 OUT to VS, and CMP1 IN+ = 1 V and CMP2 IN+ = GND, unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
INPUT
VSENSE Full-scale sense input voltage VSENSE = VIN+  – VIN– 0.15 (VS  – 0.25)/Gain V
VCM Common-mode input range TA = –40°C to +125°C –16 80 V
CMRR Common-mode rejection ratio VCM = –16 V to +80 V 80 100 dB
Over temperature VCM = 12 V to 80 V TA = 25°C to 125°C 100 123 dB
TA = –40°C to +25°C 90 100 dB
VOS Offset voltage, RTI(1) ±0.5 ±2.5 mV
TA = 25°C to 125°C ±3 mV
TA = –40°C to +25°C ±3.5 mV
dVOS/dT Versus temperature TMIN to TMAX TA = –40°C to +125°C 5 μV/°C
PSR Versus power supply VOUT = 2 V, VCM = +18 V TA = –40°C to +125°C 2.5 100 μV/V
IB Input bias current, VIN– Pin TA = –40°C to +125°C ±9 ±16 μA
OUTPUT (VSENSE  ≥ 20 mV)
G Gain 20 V/V
Gain error VSENSE = 20 mV to 100 mV ±0.2% ±1%
Over temperature VSENSE = 20 mV to 100 mV TA = –40°C to +125°C ±2%
Total output error(2) VSENSE = 120 mV, VS = +16 V ±0.75% ±2.2%
Over temperature VSENSE = 120 mV, VS = +16 V TA = –40°C to +125°C ±3.5%
Nonlinearity error(3) VSENSE = 20 mV to 100 mV ±0.002%
RO Output impedance, Pin 2 1.5 Ω
Maximum capacitive load No sustained oscillation 10 nF
OUTPUT (VSENSE < 20 mV)(4)
VOUT Output voltage –16 V ≤ VCM < 0 V 300 mV
0 V ≤ VCM ≤ VS, VS = 5 V 0.4 V
VS < VCM ≤ 80 V 300 mV
VOLTAGE OUTPUT(5)
Output swing to the positive rail VIN– = 11 V, VIN+ = 12 V TA = –40°C to +125°C (VS) – 0.15 (VS) – 0.25 V
Output Swing to GND(6) VIN– = 0 V, VIN+ = –0.5 V TA = –40°C to +125°C (VGND) + 0.004 (VGND) + 0.05 V
FREQUENCY RESPONSE
BW Bandwidth CLOAD = 5 pF 500 kHz
Phase margin CLOAD < 10 nF 40 Degrees
SR Slew rate 1 V/μs
Settling time (1%) VSENSE = 10 mVPP to 100 mVPP,
CLOAD = 5 pF		 2 μs
NOISE, RTI
Output Voltage Noise Density 40 nV/√Hz
(1) Offset is extrapolated from measurements of the output at 20 mV and 100 mV VSENSE.
(2) Total output error includes effects of gain error and VOS.
(3) Linearity is best fit to a straight line.
(4) For details on this region of operation, see the Accuracy Variations section.
(5) See Typical Characteristics curve Positive Output Voltage Swing vs Output Current (Figure 8).
(6) Specified by design; not production tested.

7.6 Electrical Characteristics: Comparator

At TA = +25°C, VS = +12 V, VCM = +12 V, VSENSE = 100 mV, RL = 10 kΩ to GND, and RPULL-UP = 5.1 kΩ each connected from CMP1 OUT and CMP2 OUT to VS, unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
OFFSET VOLTAGE
Offset voltage Comparator common-mode voltage = threshold voltage 2 mV
Offset voltage drift, comparator 1 TA = –40°C to +125°C ±2 μV/°C
Offset voltage drift, comparator 2 TA = –40°C to +125°C 5.4 μV/°C
Threshold Rising Edge on Non-Inverting input, TA = +25°C 590 608 620 mV
Over temperature TA = –40°C to +125°C 586 625 mV
Hysteresis(1), CMP1 TA = –40°C to +85°C –8 mV
Hysteresis(1), CMP2 TA = –40°C to +85°C 8 mV
INPUT BIAS CURRENT(2)
CMP1 IN+, CMP2 IN+ 0.005 10 nA
Over temperature TA = –40°C to +125°C 15 nA
INPUT IMPEDANCE
Pins 3 and 6 10 kΩ
INPUT RANGE
CMP1 IN+ and CMP2 IN+ 0 V to VS – 1.5 V V
Pins 3 and 6(3) 0 V to VS – 1.5 V V
OUTPUT
Large-signal differential voltage gain CMP VOUT 1 V to 4 V, RL ≥ 15 kΩ connected to 5 V 200 V/mV
High-level output current VID = 0.4 V, VOH = VS 0.0001 1 μA
Low-level output voltage VID = –0.6 V, IOL = 2.35 mA 220 300 mV
RESPONSE TIME(4)
Comparator 1 RL to 5 V, CL = 15 pF, 100 mV input step with 5 mV overdrive 1.3 μs
Comparator 2 RL to 5 V, CL = 15 pF, 100 mV input step with 5 mV overdrive, CDELAY pin open 1.3 μs
RESET
RESET threshold(5) 1.1 V
Logic input impedance 2 MΩ
Minimum RESET pulse width 1.5 μs
RESET propagation delay 3 μs
Comparator 2 delay equation(6) CDELAY = tD/5 μF
tD Comparator 2 delay CDELAY = 0.1 μF 0.5 s
(1) Hysteresis refers to the threshold (the threshold specification applies to a rising edge of a noninverting input) of a falling edge on the noninverting input of the comparator; refer to Figure 1.
(2) Specified by design; not production tested.
(4) The comparator response time specified is the interval between the input step function and the instant when the output crosses 1.4 V.
(5) The CMP1 RESET input has an internal 2 MΩ (typical) pull-down. Leaving the CMP1 RESET open results in a LOW state, with transparent comparator operation.
(6) The Comparator 2 delay applies to both rising and falling edges of the comparator output.

7.7 Electrical Characteristics: Reference

At TA = +25°C, VS = +12 V, VCM = +12 V, VSENSE = 100 mV, RL = 10 kΩ to GND, and RPULL-UP = 5.1 kΩ each connected from CMP1 OUT and CMP2 OUT to VS, unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
REFERENCE VOLTAGE
1.2 VREFOUT output voltage 1.188 1.2 1.212 V
dVOUT/dT Reference drift(1) TA = –40°C to +85°C 40 100 ppm/°C
0.6 VREF Output voltage (Pins 3 and 6) 0.6 V
dVOUT/dT Reference drift(1) TA = –40°C to +85°C 40 100 ppm/°C
LOAD REGULATION
dVOUT/dILOAD Sourcing 0 mA < ISINK < 0.5 mA VREFOUT – 1.2 V 0.4 2 mV/mA
Sinking 0 mA < ISOURCE < 0.5 mA 0.4 mV/mA
LOAD CURRENT
ILOAD 1 mA
LINE REGULATION
dVOUT/dVS 2.7 V < VS < 18 V 30 μV/V
CAPACITIVE LOAD
Reference output maximum capacitive load No sustained oscillations 10 nF
OUTPUT IMPEDANCE
Pins 3 and 6 10 kΩ
(1) Specified by design; not production tested.

7.8 Electrical Characteristics: General

All specifications at TA = +25°C, VS = +12 V, VCM = +12 V, VSENSE = 100 mV, RL = 10 kΩ to GND, RPULL-UP = 5.1 kΩ each connected from CMP1 OUT and CMP2 OUT to VS, and CMP1 IN+ = 1 V and CMP2 IN+ = GND, unless otherwise noted.
GENERAL PARAMETERS CONDITIONS MIN TYP MAX UNIT
POWER SUPPLY
VS Operating Power Supply TA = –40°C to +125°C 2.7 18 V
IQ Quiescent current VOUT = 2 V 1.8 2.2 mA
Over temperature VSENSE = 0 mV TA = –40°C to +125°C 2.8 mA
Comparator power-on reset threshold(1) 1.5 V
(1) The INA203-Q1 is designed to power-up with the comparator in a defined reset state as long as CMP1 RESET is open or grounded. The comparator will be in reset as long as the power supply is below the voltage shown here. The comparator assumes a state based on the comparator input above this supply voltage. If CMP1 RESET is high at power-up, the comparator output comes up high and requires a reset to assume a low state, if appropriate.
INA203-Q1 hysteresis_bos393.gif Figure 1. Comparator Hysteresis

7.9 Typical Characteristics

All specifications at TA = +25°C, VS = +12 V, VCM = +12 V, and VSENSE = 100 mV, unless otherwise noted.
INA203-Q1 tc_g-frq_1k_bos393.gif
Figure 2. Gain vs Frequency

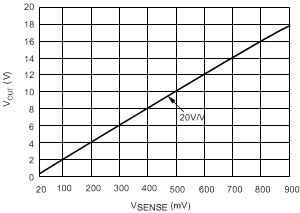

INA203-Q1 tc_g_plot_bos393.gif
Figure 4. Gain Plot
INA203-Q1 tc_err-vsense_bos393.gif
Figure 6. Total Output Error vs VSENSE
INA203-Q1 tc_pos_v-curr_bos393.gif
Figure 8. Positive Output Voltage Swing vs Output Current
INA203-Q1 tc_iq-vcm_bos393.gif
Figure 10. Quiescent Current vs Common-Mode Voltage
INA203-Q1 tc_step_20g_10-20_bos393.gif
Figure 12. Step Response
INA203-Q1 tc_step_20g_90-100_bos393.gif
Figure 14. Step Response
INA203-Q1 tc_comp_trip-vs_bos393.gif
Figure 16. Comparator Trip Point vs Supply Voltage
INA203-Q1 tc_comp-odrive_bos393.gif
Figure 18. Comparator 1 Propagation Delay vs Overdrive Voltage
INA203-Q1 tc_comp_v-vs_bos393.gif
Figure 20. Comparator Reset Voltage vs supply Voltage
INA203-Q1 tc_cmp2-cap_bos393.gif
Figure 22. Comparator 2 Propagation Delay vs Capacitance
INA203-Q1 tc_cmp2_delay_bos393.gif
Figure 24. Comparator 2 Propagation Delay
INA203-Q1 tc_g-frq_bos393.gif
Figure 3. Gain vs Frequency
INA203-Q1 tc_cmrr_psrr-frq_bos393.gif
Figure 5. Common-Mode and Power-Supply Rejection vs Frequency
INA203-Q1 tc_err-volt_bos393.gif
Figure 7. Total Output Error vs Common-Mode Voltage
INA203-Q1 tc_iq-vo_bos393.gif
Figure 9. Quiescent Current vs Output Voltage
INA203-Q1 tc_curr-vs_bos393.gif
Figure 11. Output Short-Circuit Current vs Supply Voltage
INA203-Q1 tc_step_20g_10-100_bos393.gif
Figure 13. Step Response
INA203-Q1 tc_comp-isink_bos393.gif
Figure 15. Comparator VOL vs ISINK
INA203-Q1 tc_comp_trip-tmp_bos393.gif
Figure 17. Comparator Trip Point vs Temperature
INA203-Q1 tc_cmp2-odrive_bos393.gif
Figure 19. Comparator 2 Propagation Delay vs Overdrive Voltage

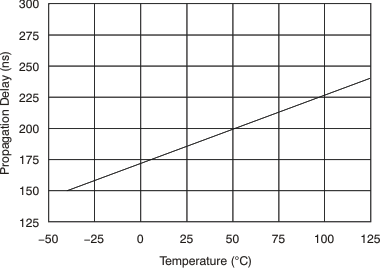

INA203-Q1 tc_comp_delay-tmp_bos393.gif
Figure 21. Comparator 1 Propagation Delay vs Temperature
INA203-Q1 tc_comp_prop_bos393.gif
Figure 23. Comparator 1 Propagation Delay

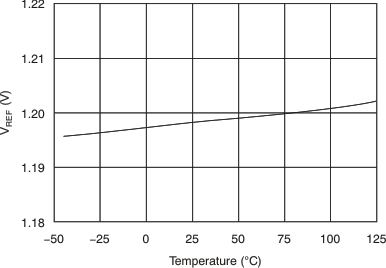

INA203-Q1 tc_vref-tmp_bos393.gif
Figure 25. Reference Voltage vs Temperature
