6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
V+ Supply voltage INA139 –0.3 60 V
INA169 –0.3 75 V
VIN+, VIN– Analog inputs, INA139 Common mode(2) –0.3 60 V
Differential (VIN+) – (VIN–) –40 2
Analog inputs, INA169 Common mode(2) –0.3 75 V
Differential (VIN+) – (VIN–) –40 2
Analog output, Out(2) –0.3 40 V
Input current into any pin 10 mA
Operating temperature –55 125 °C
TJ Junction temperature 150 °C
Tstg Storage temperature –65 125 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input voltage at any pin may exceed the voltage shown if the current at that pin is limited to 10mA.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) ±1000 V
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
INA139
V+ 2.7 5 40 V
Common mode voltage 2.7 12 40 V
INA169
V+ 2.7 5 60 V
Common mode voltage 2.7 12 60 V

6.4 Thermal Information

THERMAL METRIC(1) INA1x9 UNIT
DBV (SOT-23)
5 PINS
RθJA Junction-to-ambient thermal resistance 168.3 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 73.8 °C/W
RθJB Junction-to-board thermal resistance 28.1 °C/W
ψJT Junction-to-top characterization parameter 2.5 °C/W
ψJB Junction-to-board characterization parameter 27.6 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

6.5 Electrical Characteristics

All other characteristics at TA = –40°C to 85°C, V+ = 5 V, VIN+ = 12 V, and ROUT = 25 kΩ, unless otherwise noted.
PARAMETER TEST CONDITIONS INA139NA INA169NA UNIT
MIN TYP MAX MIN TYP MAX
INPUT
Full-Scale Sense Voltage VSENSE = VIN+ – VIN– 100 500 100 500 mV
Common-Mode Input Range 2.7 40 2.7 60 V
Common-Mode Rejection VIN+ = 2.7 V to 40 V, VSENSE = 50 mV
VIN+ = 2.7 V to 60 V, VSENSE = 50 mV 		100 115 dB
Offset Voltage(1) RTI 100 120 dB
±0.2 ±1 ±0.2 ±1 mV
vs Temperature TMIN to TMAX 1 1 µV/°C
vs Power Supply, V+ V+ = 2.7 V to 40 V, VSENSE = 50 mV 0.5 10 µV/V
V+ = 2.7 V to 60 V, VSENSE = 50 mV 0.1 10
Input Bias Current 10 10 µA
OUTPUT
Transconductance vs Temperature VSENSE = 10 mV – 150 mV
VSENSE = 10 mV, 		990 1000 1010 990 1000 1010 µA/V
10 10 nA/°C
Nonlinearity Error VSENSE = 10 mV to 150 mV ±0.01% ±0.1% ±0.01% ±0.1%
Total Output Error VSENSE = 100 mV ±0.5% ±2% ±0.5% ±2%
Output Impedance 1 || 5 1 || 5 GΩ || pF
Voltage Output Swing to Power Supply, V+ (V+) – 0.9 (V+) – 1.2 (V+) – 0.9 (V+) – 1.2 V
Swing to Common Mode, VCM VCM – 0.6 VCM –1 VCM – 0.6 VCM – 1 V
FREQUENCY RESPONSE
Bandwidth ROUT = 10 kΩ 440 440 kHz
ROUT = 20 kΩ 220 220 kHz
Settling Time (0.1%) 5-V Step, ROUT = 10 kΩ 2.5 2.5 µs
5-V Step, ROUT = 20 kΩ 5 5 µs
NOISE
Output-Current Noise Density 20 20 pA/√Hz
Total Output-Current Noise BW = 100 kHz 7 7 nA RMS
POWER SUPPLY
Operating Range, V+ 2.7 40 2.7 60 V
Quiescent Current VSENSE = 0, IO = 0 60 125 60 125 µA
TEMPERATURE RANGE
Specification, TMIN to TMAX –40 85 –40 85 °C
Operating –55 125 –55 125 °C
Storage –65 150 –65 150 °C
Thermal Resistance, θJA 200 200 °C/W
(1) Defined as the amount of input voltage, VSENSE, to drive the output to zero.

6.6 Typical Characteristics

At TA = 25°C, V+ = 5 V, VIN+ = 12 V, and RL = 125 kΩ, unless otherwise noted.
INA139 INA169 graph_1_sbos181.gif

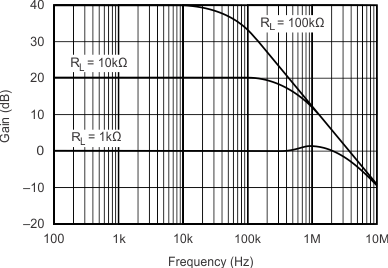

Figure 1. Gain vs Frequency
INA139 INA169 graph_3_sbos181.gif

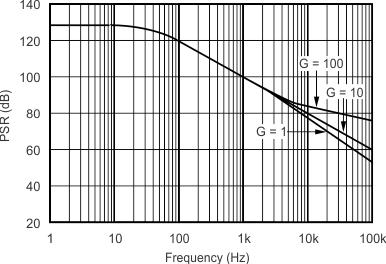

Figure 3. Power-Supply Rejection vs Frequency
INA139 INA169 graph_5_sbos181.gif

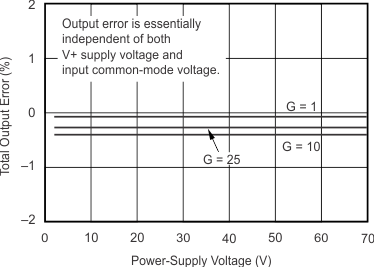

Figure 5. Total Output Error vs Power-Supply Voltage
INA139 INA169 graph_7_sbos181.gif

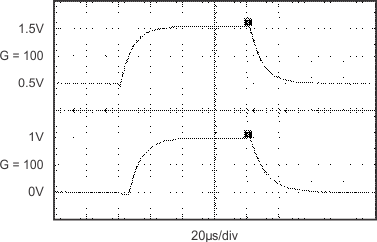

Figure 7. Step Response
INA139 INA169 graph_2_sbos181.gif

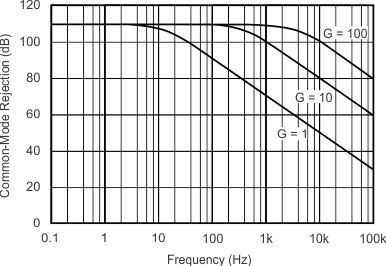

Figure 2. Common-Mode Rejection vs Frequency
INA139 INA169 graph_4_sbos181.gif

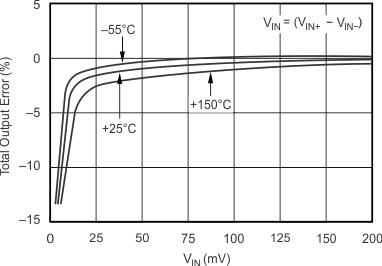

Figure 4. Total Output Error vs VIN
INA139 INA169 graph_6_sbos181.gif

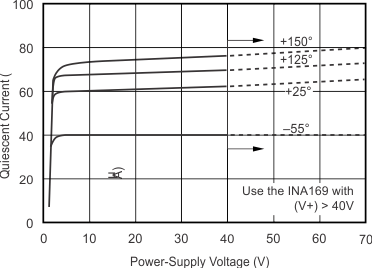

Figure 6. Quiescent Current vs Power-Supply Voltage
INA139 INA169 graph_8_sbos181.gif

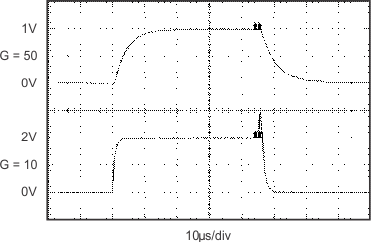

Figure 8. Step Response
