6.7 Typical Characteristics

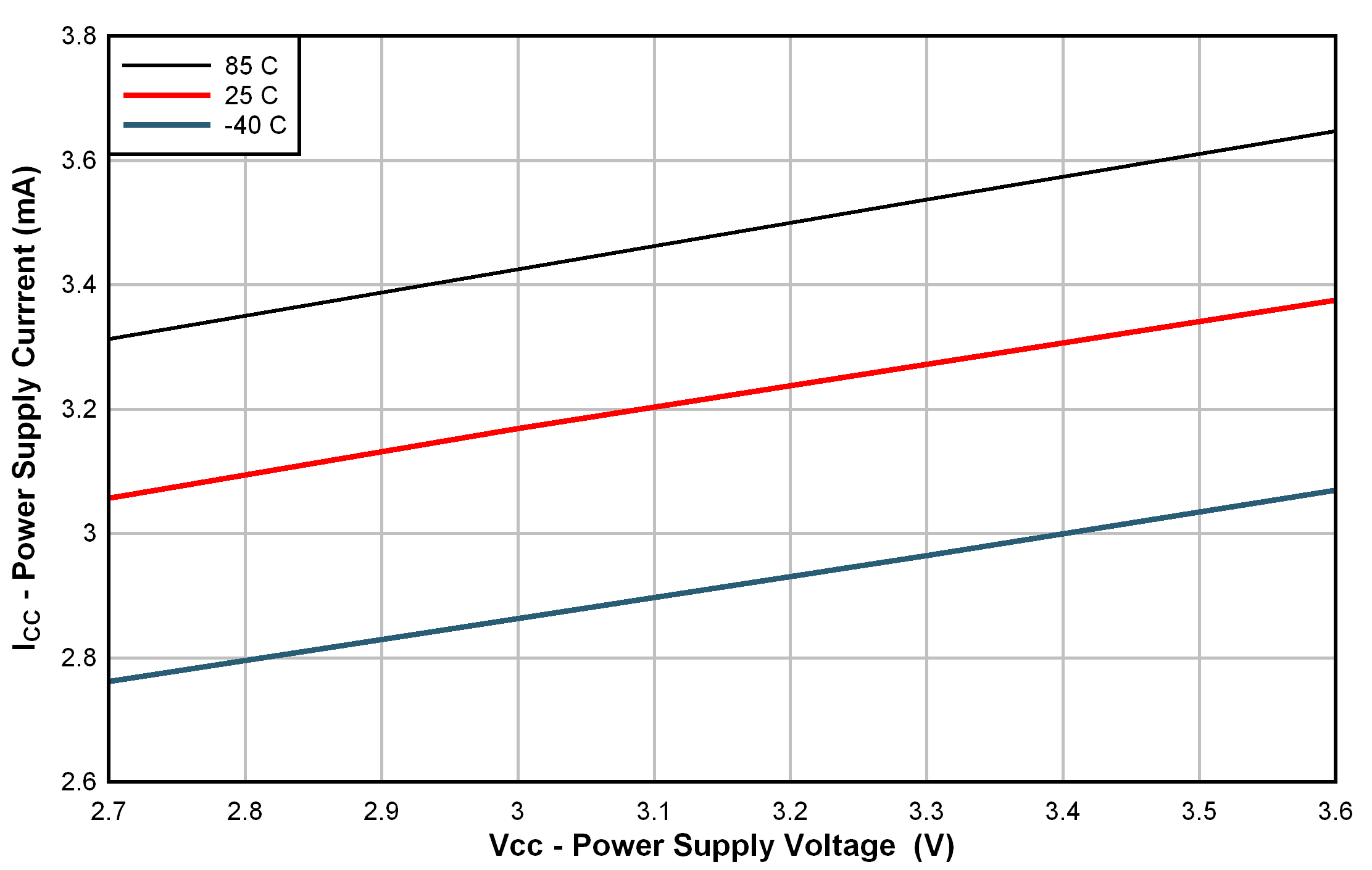

Figure 1. Power Supply Current vs Power Supply Voltage
Figure 3. Output High Voltage vs Power Supply Voltage
Figure 5. Differential Propagation Delay High to Low vs Power Supply Voltage at 1 MHz
Figure 7. Differential Propagation Delay Low to High vs Power Supply Voltage at 1 MHz

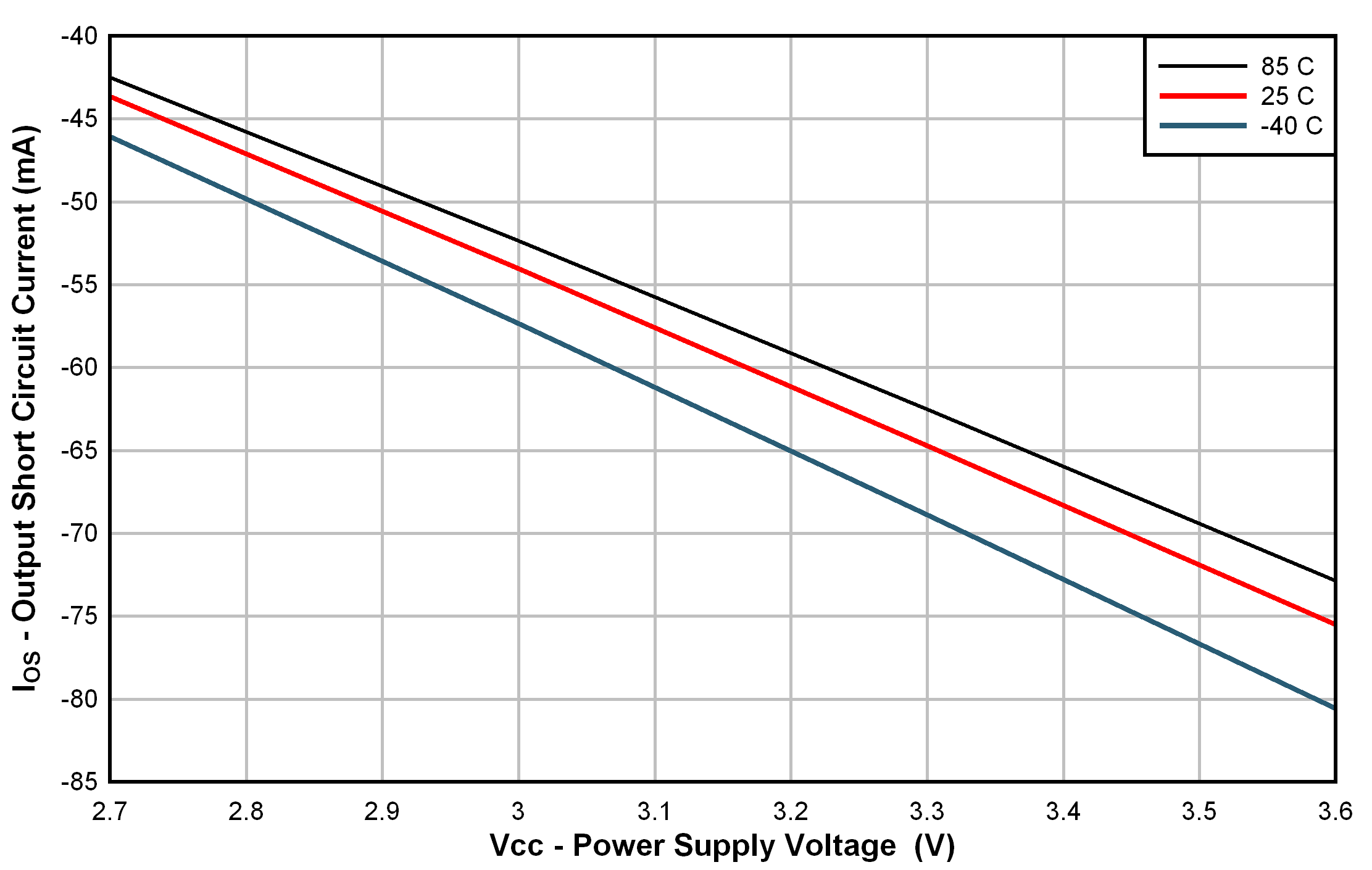

Figure 2. Output Short-Circuit Current vs Power Supply Voltage

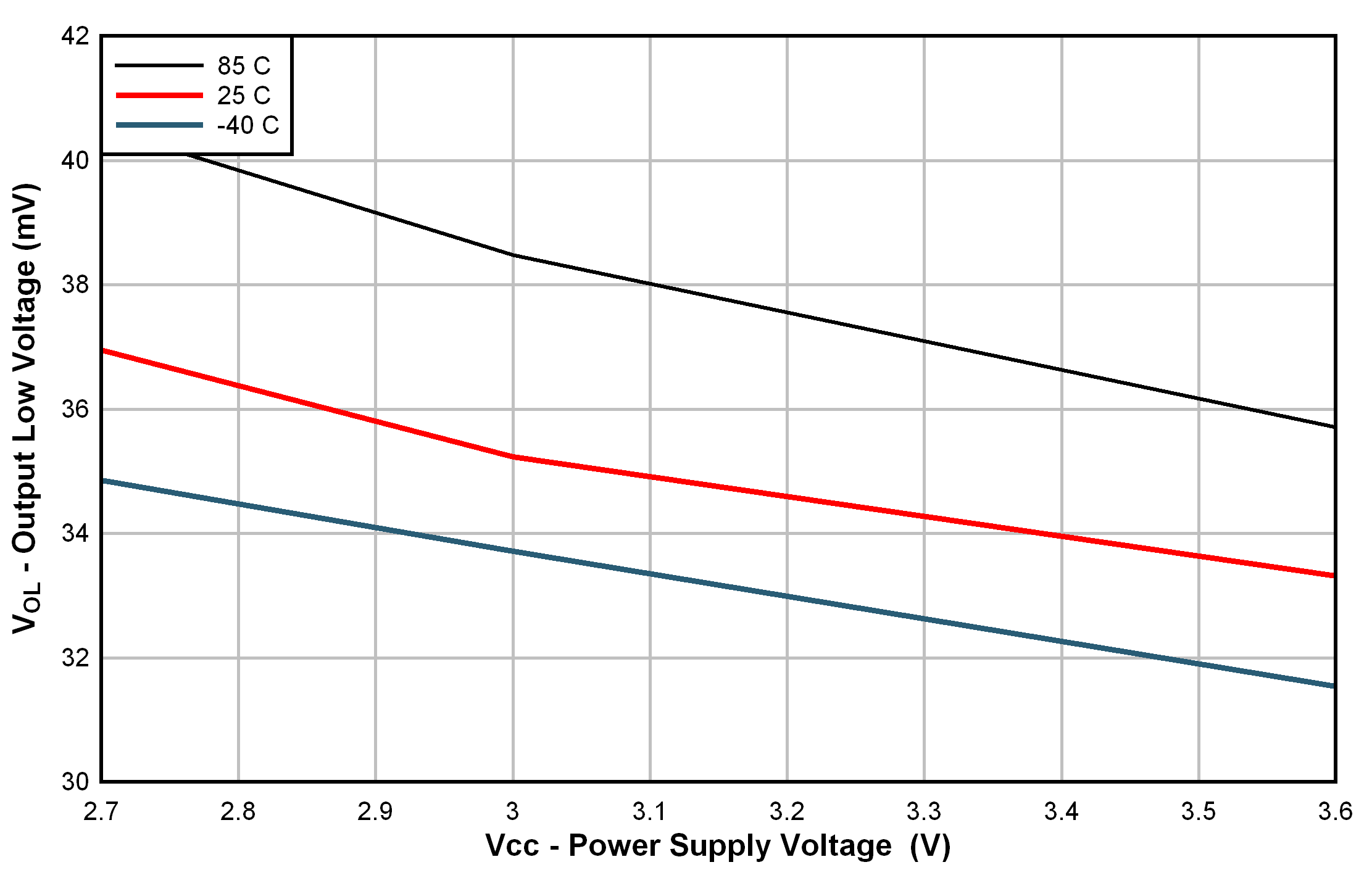

Figure 4. Output Low Voltage vs Power Supply Voltage
Figure 6. Differential Propagation Delay High to Low vs Power Supply Voltage at 250 MHz
Figure 8. Differential Propagation Delay Low to High vs Power Supply Voltage at 250 MHz
