6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VPVDD Supply voltage Relative to PGND –0.3 65 V
PVDDRAMP Maximum supply voltage ramp rate Voltage rising up to PVDDMAX 1 V/µs
VPGND Maximum voltage between PGND and GND –0.3 0.3 V
IIN_MAX Maximum current, all digital and analog input pins except nFAULT and nOCTW pins –1 1 mA
IIN_OD_MAX Maximum sinking current for open-drain pins (nFAULT and nOCTW Pins) 7 mA
VOPA_IN Voltage range for SPx and SNx pins –0.6 0.6 V
VLOGIC Input voltage range for logic/digital pins (INH_A, INL_A, INH_B, INL_B, INH_C, INL_C, EN_GATE, M_PWM, M_OC, OC_ADJ, GAIN, DC_CAL) –0.3 7 V
VGVDD Maximum voltage for GVDD pin 13.2 V
VAVDD Maximum voltage for AVDD pin 8 V
VDVDD Maximum voltage for DVDD pin 3.6 V
VREF Maximum reference voltage for current amplifier 7 V
IREF Maximum current for REF Pin 100 µA
TJ Maximum operating junction temperature –40 150 °C
Tstg Storage temperature –55 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

MIN NOM MAX UNIT
VPVDD DC supply voltage PVDD1 for normal operation Relative to PGND 8 60 V
DC supply voltage PVDD2 for buck converter 3.5 60 V
IDIN_EN Input current of digital pins when EN_GATE is high 100 µA
IDIN_DIS Input current of digital pins when EN_GATE is low 1 µA
CO_OPA Maximum output capacitance on outputs of shunt amplifier 20 pF
RDTC Dead time control resistor range. Time range is 50 ns (–GND) to 500 ns (150 kΩ) with a linear approximation. 0 150
IFAULT FAULT pin sink current. Open drain V = 0.4 V 2 mA
IOCTW OCTW pin sink current. Open drain V = 0.4 V 2 mA
VREF External voltage reference voltage for current shunt amplifiers 2 6 V
fgate Operating switching frequency of gate driver Qg(TOT) = 25 nC or total 30-mA gate drive average current 200 kHz
TA Ambient temperature –40 125 °C

6.4 Thermal Information

THERMAL METRIC(1) DRV8302 UNIT
DCA (HTSSOP)
56 PINS
RθJA Junction-to-ambient thermal resistance 30.3 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 33.5 °C/W
RθJB Junction-to-board thermal resistance 17.5 °C/W
ψJT Junction-to-top characterization parameter 0.9 °C/W
ψJB Junction-to-board characterization parameter 7.2 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 0.9 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report (SPRA953).

6.5 Electrical Characteristics

PVDD = 8 V to 60 V, TC = 25°C, unless specified under test condition
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
INPUT PINS: INH_X, INL_X, M_PWM, M_OC, GAIN, EN_GATE, DC_CAL
VIH High input threshold 2 V
VIL Low input threshold 0.8 V
REN_GATE Internal pulldown resistor for EN_GATE 100
RINH_X Internal pulldown resistor for high side PWMs (INH_A, INH_B, and INH_C) EN_GATE high 100
RINH_X Internal pulldown resistor for low side PWMs (INL_A, INL_B, and INL_C) EN_GATE high 100
RM_PWM Internal pulldown resistor for M_PWM EN_GATE high 100
RM_OC Internal pulldown resistor for M_OC EN_GATE high 100
RDC_CAL Internal pulldown resistor for DC_CAL EN_GATE high 100
OUTPUT PINS: nFAULT AND nOCTW
VOL Low output threshold IO = 2 mA 0.4 V
VOH High output threshold External 47-kΩ pullup resistor connected to 3-5.5 V 2.4 V
IOH Leakage current on open-drain pins When logic high (nFAULT and nOCTW) 1 µA
GATE DRIVE OUTPUT: GH_A, GH_B, GH_C, GL_A, GL_B, GL_C
VGX_NORM Gate driver Vgs voltage PVDD = 8 V to 60 V 9.5 11.5 V
Ioso1 Maximum source current setting 1, peak Vgs of FET equals to 2 V 1.7 A
Iosi1 Maximum sink current setting 1, peak Vgs of FET equals to 8 V 2.3 A
Rgate_off Gate output impedance during standby mode when EN_GATE low (pins GH_x, GL_x) 1.6 2.4
SUPPLY CURRENTS
IPVDD1_STB PVDD1 supply current, standby EN_GATE is low. PVDD1 = 8 V. 20 50 µA
IPVDD1_OP PVDD1 supply current, operating EN_GATE is high, no load on gate drive output, switching at 10 kHz,
100-nC gate charge
15 mA
IPVDD1_HIZ PVDD1 Supply current, HiZ EN_GATE is high, gate not switching 2 5 11 mA
INTERNAL REGULATOR VOLTAGE
AVDD AVDD voltage 6 6.5 7 V
DVDD DVDD voltage 3 3.3 3.6 V
VOLTAGE PROTECTION
VPVDD_UV Undervoltage protection limit, PVDD 6 V
VGVDD_UV Undervoltage protection limit, GVDD 8 V
VGVDD_OV Overvoltage protection limit, GVDD 16 V
CURRENT PROTECTION, (VDS SENSING)
VDS_OC Drain-source voltage protection limit 0.125 2.4 V
Toc OC sensing response time 1.5 µs
TOC_PULSE OCTW pin reporting pulse stretch length for OC event 64 µs

6.6 Gate Timing and Protection Characteristics

MIN NOM MAX UNIT
TIMING, OUTPUT PINS
tpd,If-O Positive input falling to GH_x falling CL=1 nF, 50% to 50% 45 ns
tpd,Ir-O Positive input rising to GL_x falling CL=1 nF, 50% to 50% 45 ns
Td_min Minimum dead time after hand shaking(1) 50 ns
Tdtp Dead Time With RDTC set to different values 50 500 ns
tGDr Rise time, gate drive output CL=1 nF, 10% to 90% 25 ns
tGDF Fall time, gate drive output CL=1 nF, 90% to 10% 25 ns
TON_MIN Minimum on pulse Not including handshake communication. Hiz to on state, output of gate driver 50 ns
Tpd_match Propagation delay matching between high side and low side 5 ns
Tdt_match Deadtime matching 5 ns
TIMING, PROTECTION AND CONTROL
tpd,R_GATE-OP Start-up time, from EN_GATE active high to device ready for normal operation PVDD is up before start-up, all charge pump caps and regulator caps as in recommended condition 5 10 ms
tpd,R_GATE-Quick If EN_GATE goes from high to low and back to high state within quick reset time, it will only reset all faults and gate driver without powering down charge pump, current amp, and related internal voltage regulators. Maximum low pulse time 10 us
tpd,E-L Delay, error event to all gates low 200 ns
tpd,E-FAULT Delay, error event to FAULT low 200 ns
OTW_CLR Junction temperature for resetting overtemperature warning 115 °C
OTW_SET/OTSD_CLR Junction temperature for overtemperature warning and resetting overtemperature shut down 130 °C
OTSD_SET Junction temperature for overtemperature shut down 150 °C
(1) Dead time programming definition: Adjustable delay from GH_x falling edge to GL_X rising edge, and GL_X falling edge to GH_X rising edge. This is a minimum dead-time insertion. It is not added to the value set by the microcontroller externally.

6.7 Current Shunt Amplifier Characteristics

TC = 25°C unless otherwise specified
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
G1 Gain option 1 (GAIN = 0 V) 9.5 10 10.5 V/V
G2 Gain option 2 (GAIN = 2 V) 38 40 42 V/V
Tsettling Settling time to 1% Tc = 0°C to 60°C, G = 10, Vstep = 2 V 300 ns
Tsettling Settling time to 1% Tc = 0°C to 60°C, G = 40, Vstep = 2 V 1.2 µs
Vswing Output swing linear range 0.3 5.7 V
Slew Rate G = 10 10 V/µs
DC_offset Offset error RTI G = 10 with input shorted 4 mV
Drift_offset Offset drift RTI 10 µV/C
Ibias Input bias current 100 µA
Vin_com Common input mode range –0.15 0.15 V
Vin_dif Differential input range –0.3 0.3 V
Vo_bias Output bias With zero input current, Vref up to 6 V –0.5% 0.5×Vref 0.5% V
CMRR_OV Overall CMRR with gain resistor mismatch CMRR at DC, gain = 10 70 85 dB

6.8 Buck Converter Characteristics

TC = 25°C unless otherwise specified
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VUVLO Internal undervoltage lockout threshold No voltage hysteresis, rising and falling 2.5 V
ISD(PVDD2) Shutdown supply current EN = 0 V, 25°C, 3.5 V ≤ VIN ≤ 60 V 1.3 4 µA
INON_SW(PVDD2) Operating: nonswitching supply current VSENSE = 0.83 V, VIN = 12 V 116 136 µA
VEN_BUCK Enable threshold voltage No voltage hysteresis, rising and falling 1.11 1.25 1.36 V
RDS_ON On-resistance VIN = 12 V, BOOT-PH = 6 V 200 410
ILIM Current limit threshold VIN = 12 V, TJ = 25°C 1.8 2.7 A
OTSD_BK Thermal shutdown 150 °C
Fsw Switching frequency RT = 200 kΩ 450 581 720 kHz
PWRGD VSENSE threshold VSENSE falling 92%
VSENSE rising 94%
VSENSE rising 109%
VSENSE falling 107%
Hysteresis VSENSE falling 2%
Output high leakage VSENSE = VREF, V(PWRGD) = 5.5 V, 25°C 10 nA
On resistance I(PWRGD) = 3 mA, VSENSE < 0.79 V 50 Ω

6.9 Typical Characteristics

DRV8302 C001_SLOS719.png
Figure 1. IPVDD1 vs Temperature
(PVDD1 = 8 V, EN_GATE = LOW)
DRV8302 C003_SLOS719.png
Figure 3. GVDD vs Temperature (PVDD1 = 60 V, EN_GATE = HIGH)

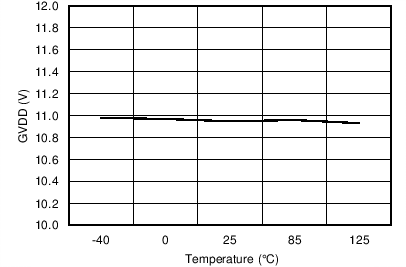

DRV8302 C002_SLOS719.png
Figure 2. GVDD vs Temperature
(PVDD1 = 8 V, EN_GATE = HIGH)
