10 器件和文档支持

10.1 器件支持

10.1.1 器件命名规则

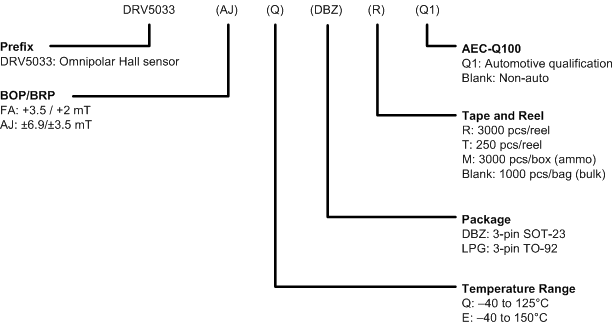

Figure 23 显示了读取 DRV5033-Q1 器件完整器件名称的图例。

DRV5033-Q1 device_nomen_lis164.gif Figure 23. 器件命名规则

10.1.2 器件标记

DRV5033-Q1 package_sot_slis150.gif Figure 24. SOT-23 (DBZ) 封装
DRV5033-Q1 package_sip_slis150.gif Figure 25. TO-92 (LPG) 封装
DRV5033-Q1 inline_hall_sensor_slis150.gif 表示霍尔效应传感器（未按比例显示）。霍尔元件置于封装中央位置，容差为 ±100µm。在 DBZ 封装中，霍尔元件与封装底部的距离为 0.7mm ± 50µm；在 LPG 封装中，霍尔元件与封装底部的距离为 0.987mm ± 50µm。
