Application Curve

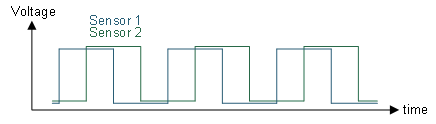

Two signals in quadrature provide movement and direction information. Figure 21 shows how each 2-bit state has unique adjacent 2-bit states for clockwise and counterclockwise.

DRV5015 quad.gifFigure 21. Quadrature Output (2-Bit)
