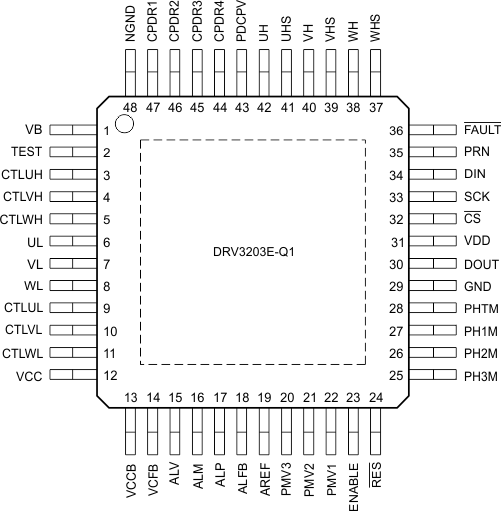

5 Pin Configuration and Functions

PHP Package
48-PIN HTQFP
(Top View)
DRV3203E-Q1 PinOut_PHP-48_SLVSCE5.gif

Pin Functions

PIN MAXIMUM RATING FUNCTION
NAME NO. TYPE
ALFB 18 O –0.3 V to 40 V Motor current-sense amplifier feedback
ALM 16 I –0.3 V to 40 V Motor current- sense amplifier negative input
ALP 17 I –0.3 V to 40 V Motor current- sense amplifier positive input
ALV 15 O –0.3 V to 3.6 V Motor current- sense amplifier output
AREF 19 O –0.3 V to 40 V Reference output of motor current- sense amplifier
CPDR1 47 O –0.3 V to 40 V Charge-pump output
CPDR2 46 O –0.3 V to 40 V Charge- pump output
CPDR3 45 O –0.3 V to 40 V Charge- pump output
CPDR4 44 O –0.3 V to 40 V Charge- pump output
CS 32 I –0.3 V to 3.6 V SPI chip select
CTLUH 3 I –0.3 V to 3.6 V Pre-driver parallel input
CTLUL 9 I –0.3 V to 3.6 V Pre-driver parallel input
CTLVH 4 I –0.3 V to 3.6 V Pre-driver parallel input
CTLVL 10 I –0.3 V to 3.6 V Pre-driver parallel input
CTLWH 5 I –0.3 V to 3.6 V Pre-driver parallel input
CTLWL 11 I –0.3 V to 3.6 V Pre-driver parallel input
DIN 34 I –0.3 V to 3.6 V SPI data input
DOUT 30 O –0.3 V to 3.6 V SPI data output
ENABLE 23 I –0.3 V to 40 V Enable input
FAULT 36 O –0.3 V to 3.6 V Diagnosis output
GND 29 I –0.3 V to 0.3 V GND
NGND 48 I –0.3 V to 0.3 V Power GND
PDCPV 43 O –0.3 V to 40 V Charge pump output
PH1M 27 I –1 V to 40 V Phase comparator input
PH2M 26 I –1 V to 40 V Phase comparator input
PH3M 25 I –1 V to 40 V Phase comparator input
PHTM 28 I –1 V to 40 V Phase comparator reference input
PMV1 22 O –0.3 V to 3.6 V Phase comparator output
PMV2 21 O –0.3 V to 3.6 V Phase comparator output
PMV3 20 O –0.3 V to 3.6 V Phase comparator output
PRN 35 I –0.3 V to 3.6 V Watchdog timer-pulse input
RES 24 O –0.3 V to 3.6 V MCU reset output
SCK 33 I –0.3 V to 3.6 V SPI clock
TEST 2 I –0.3 V to 20 V TEST input
UH 42 O –5 V to 40 V Pre-driver output
UHS 41 O –5 V to 40 V Pre-driver reference
UL 6 O –0.3 V to 20 V Pre-driver output
VB 1 I –0.3 V to 40 V VB input
VCC 12 I –0.3 V to 3.6 V VCC supply input
VCCB 13 O –0.3 V to 40 V VCC regulator base driver of PNP external transistor
VCFB 14 I –0.3 V to 40 V VCC regulator current-sense input
VDD 31 O –0.3 V to 3.6 V VDD supply output
VH 40 O –5 V to 40 V Pre-driver output
VHS 39 O –5 V to 40 V Pre-driver reference
VL 7 O –0.3 V to 20 V Pre-driver output
WH 38 O –5 V to 40 V Pre-driver output
WHS 37 O –5 V to 40 V Pre-driver reference
WL 8 O –0.3 V to 20 V Pre-driver output
