SLVSCE5B November 2013 – July 2016 DRV3203E-Q1

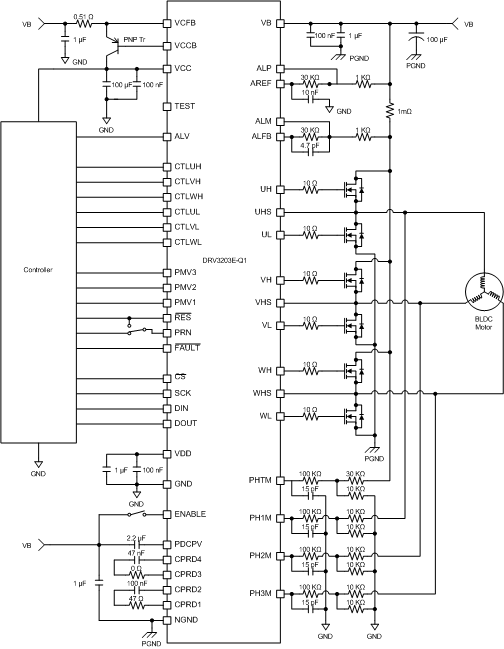

The DRV3203E-Q1 device is a field-effect transistor (FET) pre-driver designed for three-phase motor control for applications such as an oil pump or a water pump. The device has three high-side pre-FET drivers and three low-side drivers which are under the control of an external MCU. A charge pump supplies the power for the high side, and there is no requirement for a bootstrap capacitor. For commutation, this integrated circuit (IC) sends a conditional motor signal and output to the MCU. Diagnostics provide undervoltage, overvoltage, overcurrent, overtemperature and power-bridge faults. One can measure the motor current using an integrated current-sense amplifier and comparator in a battery common-mode range, which allows the use of the motor current in a high-side current-sense application. External resistors set the gain. One can configure the pre-drivers and other internal settings through the SPI.
PART NUMBER | PACKAGE | BODY SIZE (NOM) |
---|---|---|
DRV3203E-Q1 | HTQFP (48) | 7.00 mm × 7.00 mm |
Changes from A Revision (January 2014) to B Revision
Changes from * Revision (November 2013) to A Revision
