7.7 Typical Characteristics

at TA = 25°C, VDD = VAA = 5 V, VREFIN = 2.5 V. Unipolar ranges: VSS = 0 V and VCC ≥ VMAX + 1.5 V for the DAC range. Bipolar ranges: VSS ≤ VMIN – 1.5 V and VCC ≥ VMAX + 1.5 V for the DAC range. DAC outputs unloaded, unless otherwise noted.
DAC81408 DAC71408 DAC61408 D001_SLASER3.gif

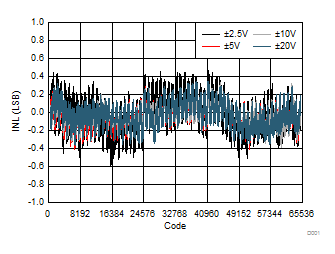

Figure 1. Integral Linearity Error vs Digital Input Code (Bipolar Outputs)
DAC81408 DAC71408 DAC61408 D003_SLASER3.gif

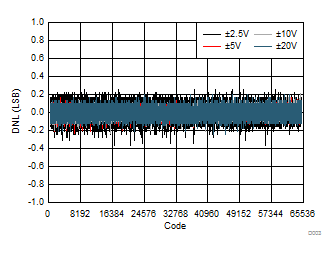

Figure 3. Differential Linearity Error vs Digital Input Code (Bipolar Outputs)
DAC81408 DAC71408 DAC61408 D005_SLASER3.gif

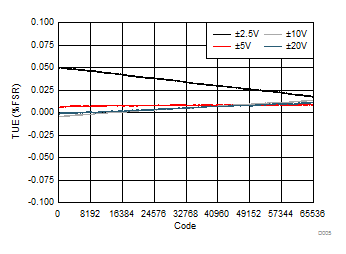

Figure 5. Total Unadjusted Error vs Digital Input Code (Bipolar Outputs)

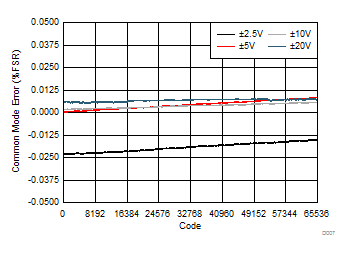

DAC81408 DAC71408 DAC61408 D007_SLASER3.gif
Figure 7. Common Mode Error vs Digital Input Code (Differential Bipolar Outputs)

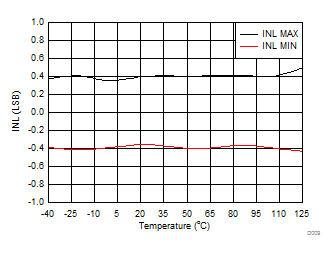

DAC81408 DAC71408 DAC61408 D009_SLASER3.gif
±20-V Output Range
Figure 9. Integral Linearity Error vs Temperature
DAC81408 DAC71408 DAC61408 D011_SLASER3.gif

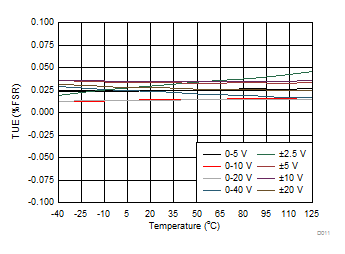

Figure 11. Total Unadjusted Error vs Temperature
DAC81408 DAC71408 DAC61408 D013_SLASER3.gif

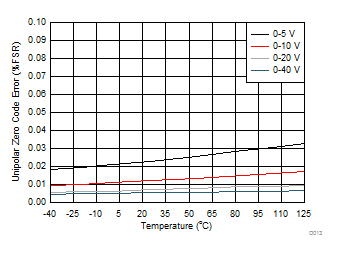

Figure 13. Unipolar Zero Code Error vs Temperature
DAC81408 DAC71408 DAC61408 D015_SLASER3.gif

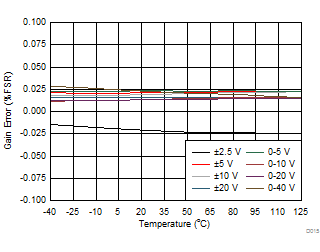

Figure 15. Gain Error vs Temperature
DAC81408 DAC71408 DAC61408 D017_SLASER3.gif

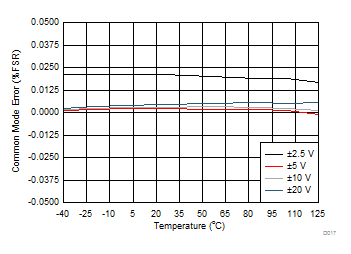

Figure 17. Common Mode Error vs Temperature (Differential Bipolar Outputs)
DAC81408 DAC71408 DAC61408 D019_SLASER3.gif
±20-V Output Range

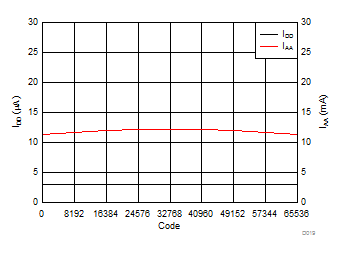

Figure 19. Supply Current (IDD, IAA) vs Digital Input Code
DAC81408 DAC71408 DAC61408 D021_SLASER3.gif
±20-V Output Range

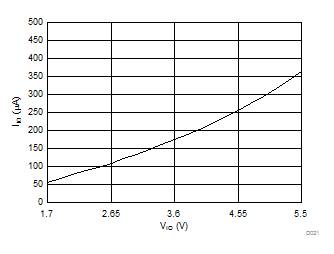

Figure 21. Supply Current (IIO) vs Supply Voltage
DAC81408 DAC71408 DAC61408 D023_SLASER3.gif
±20-V Output Range
Figure 23. Power-Down Current vs Temperature
DAC81408 DAC71408 DAC61408 D025_SLASER3.gif
Full-scale Code

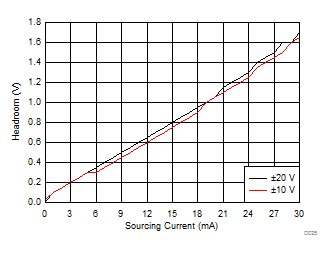

Figure 25. VCC Headroom vs Sourcing Current

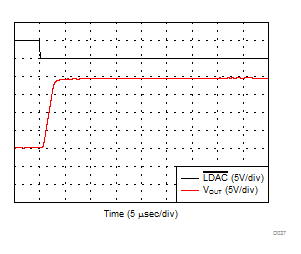

DAC81408 DAC71408 DAC61408 D027_SLASER3.gif
±20-V Output Range
Figure 27. Full-Scale Settling Time, Rising Edge
DAC81408 DAC71408 DAC61408 D029_SLASER3.gif
Power-down to Active DAC Mode
±20-V Output Range
Figure 29. DAC Output Enable Glitch
DAC81408 DAC71408 DAC61408 D031_SLASER3.gif
±20-V Output Range
Toggle signal: 1 VPP
DC Change: Midscale to 3/4 Full-scale

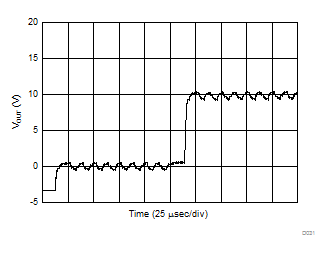

Figure 31. Toggle Output Change Response
DAC81408 DAC71408 DAC61408 D033_SLASER3.gif

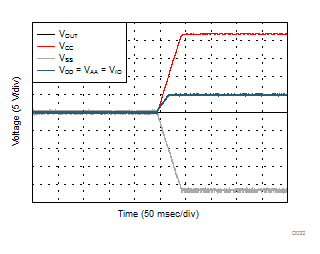

Figure 33. Power-Up Response
DAC81408 DAC71408 DAC61408 D035_SLASER3.gif
±20-V Output Range
Full-scale Code to 0 V

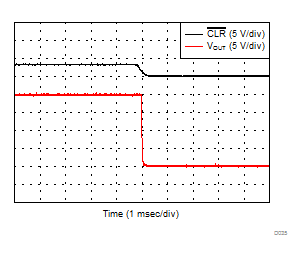

Figure 35. Clear Command Response
DAC81408 DAC71408 DAC61408 D037_SLASER3.gif
0 to 5-V Output Range
Midscale Code
Figure 37. DAC Output Noise Density vs Frequency
DAC81408 DAC71408 DAC61408 D039_SLASER3.gif

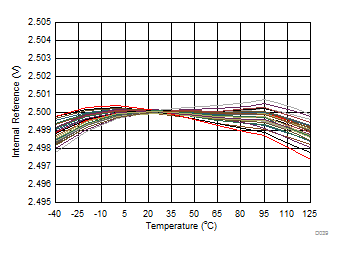

Figure 39. Internal Reference Voltage vs Temperature
DAC81408 DAC71408 DAC61408 D041_SLASER3.gif

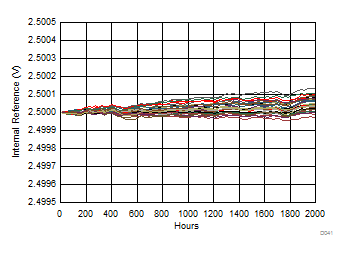

Figure 41. Internal Reference Voltage vs Time
DAC81408 DAC71408 DAC61408 D043_SLASER3.gif
Figure 43. Internal Reference Noise
DAC81408 DAC71408 DAC61408 D002_SLASER3.gif
Figure 2. Integral Linearity Error vs Digital Input Code (Unipolar Outputs)

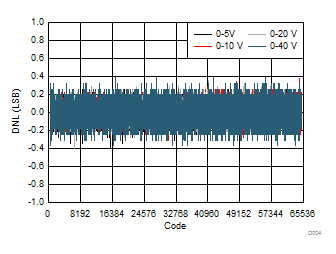

DAC81408 DAC71408 DAC61408 D004_SLASER3.gif
Figure 4. Differential Linearity Error vs Digital Input Code (Unipolar Outputs)

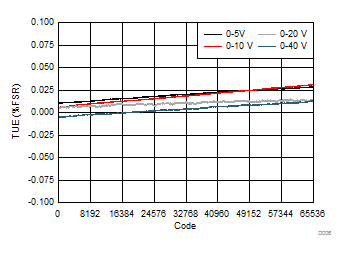

DAC81408 DAC71408 DAC61408 D006_SLASER3.gif
Figure 6. Total Unadjusted Error vs Digital Input Code (Unipolar Outputs)
DAC81408 DAC71408 DAC61408 D008_SLASER3.gif

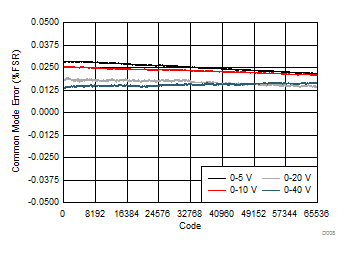

Figure 8. Common Mode Error vs Digital Input Code (Differential Unipolar Outputs)
DAC81408 DAC71408 DAC61408 D010_SLASER3.gif
±20-V Output Range

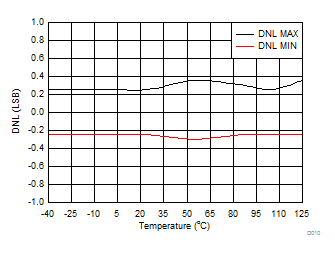

Figure 10. Differential Linearity Error vs Temperature
DAC81408 DAC71408 DAC61408 D012_SLASER3.gif
Figure 12. Unipolar Offset Error vs Temperature
DAC81408 DAC71408 DAC61408 D014_SLASER3.gif

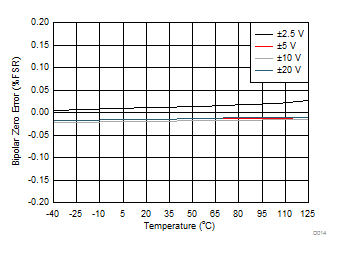

Figure 14. Bipolar Zero Error vs Temperature
DAC81408 DAC71408 DAC61408 D016_SLASER3.gif

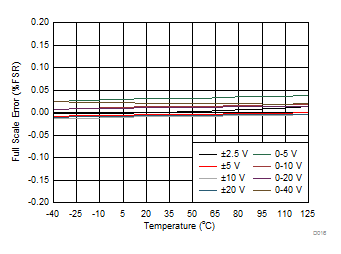

Figure 16. Full-Scale Error vs Temperature
DAC81408 DAC71408 DAC61408 D018_SLASER3.gif
Figure 18. Common Mode Error vs Temperature (Differential Unipolar Outputs)
DAC81408 DAC71408 DAC61408 D020_SLASER3.gif
±20-V Output Range

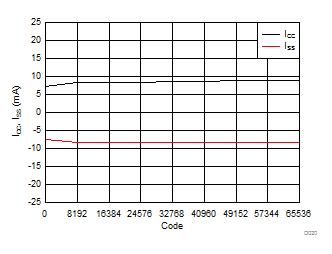

Figure 20. Supply Current (ICC, ISS) vs Digital Input Code

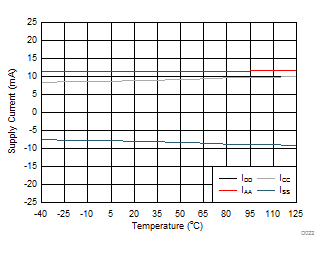

DAC81408 DAC71408 DAC61408 D022_SLASER3.gif
±20-V Output Range
Figure 22. Supply Current vs Temperature

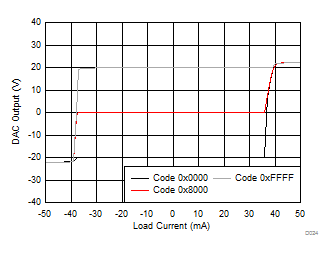

DAC81408 DAC71408 DAC61408 D024_SLASER3.gif
±20-V Output Range
Figure 24. Source and Sink Capability
DAC81408 DAC71408 DAC61408 D026_SLASER3.gif
Zero Code

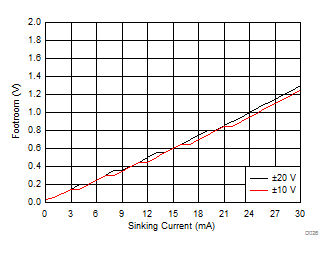

Figure 26. VSS Footroom vs Sinking Current
DAC81408 DAC71408 DAC61408 D028_SLASER3.gif
±20-V Output Range
Figure 28. Full-Scale Settling Time, Falling Edge
DAC81408 DAC71408 DAC61408 D030_SLASER3.gif
0 to 5-V Output Range

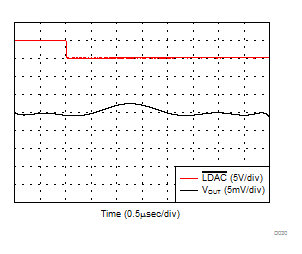

Figure 30. Glitch Impulse, 1 LSB Step
DAC81408 DAC71408 DAC61408 D032_SLASER3.gif
±20-V Output Range
Toggle signal: 1 VPP
DC value: 3/4 Full-scale

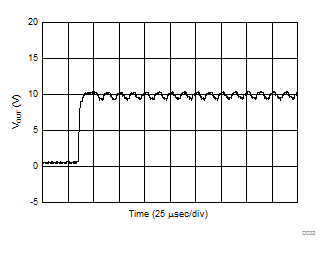

Figure 32. Toggle Enable Response
DAC81408 DAC71408 DAC61408 D034_SLASER3.gif

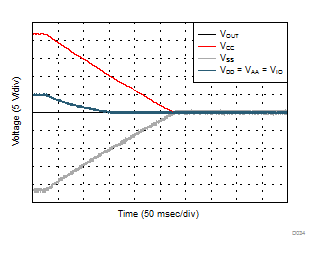

Figure 34. Power-Down Response
DAC81408 DAC71408 DAC61408 D036_SLASER3.gif
±20-V Output Range
Toggle signal: 1 VPP
DC value at 20 V

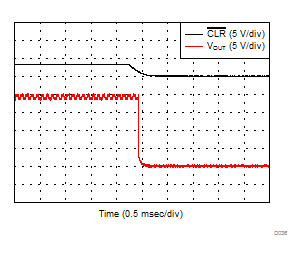

Figure 36. Clear Command Response in Toggle Mode

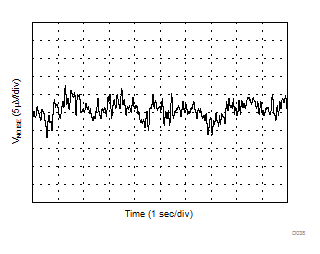

DAC81408 DAC71408 DAC61408 D038_SLASER3.gif
0 to 5-V Output Range
Midscale Code
Figure 38. DAC Output Noise
DAC81408 DAC71408 DAC61408 D040_SLASER3.gif

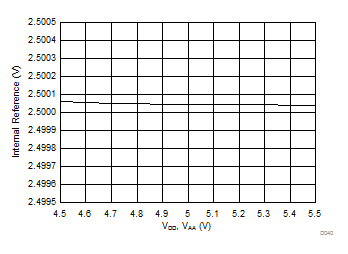

Figure 40. Internal Reference Voltage vs Supply Voltage
DAC81408 DAC71408 DAC61408 D042_SLASER3.gif

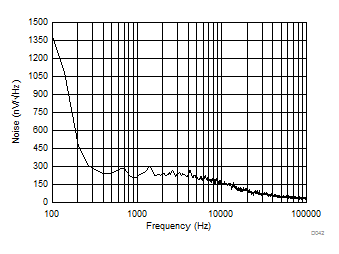

Figure 42. Internal Reference Noise Density vs Frequency
DAC81408 DAC71408 DAC61408 D044_SLASER3.gif

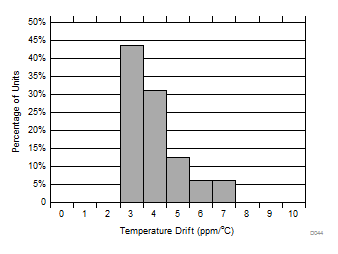

Figure 44. Internal Reference Temperature Drift Histogram
