9 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

9.1 Application Information

The DAC082S085 is designed for single-supply operation and thus has a unipolar output. However, a bipolar output may be obtained with the circuit in Figure 35. This circuit provides an output voltage range of ±5 V. A rail-to-rail amplifier must be used if the amplifier supplies are limited to ±5 V.

9.2 Typical Application

9.2.1 Bipolar Operation

DAC082S085 20195617.gif Figure 35. Bipolar Operation

9.2.1.1 Design Requirements

  • The DAC082S085 uses a single supply.
  • The output is required to be bipolar with a voltage range of ±5 V.
  • Dual supplies are used for the output amplifier.

9.2.1.2 Detailed Design Procedure

The output voltage of this circuit for any code is found to be

Equation 2. VO = (VA × (D / 256) × ((R1 + R2) / R1) – VA × R2 / R1)
Equation 3. VO = (10 × D / 256) – 5 V

where

  • D is the input code in decimal form (With VA = 5 V and R1 = R2)

Table 2 lists the rail-to-rail amplifiers suitable for this application.

Table 2. Some Rail-to-Rail Amplifiers

AMP PKGS  TYP VOS TYP ISUPPLY
LMC7111 8-pin PDIP, 5-pin SOT-23 0.9 mV 25 µA
LM7301 8-pin SO, 5-pin SOT-23 0.03 mV 620 µA
LM8261 5-pin SOT-23 0.7 mV 1 mA

9.2.1.3 Application Curve

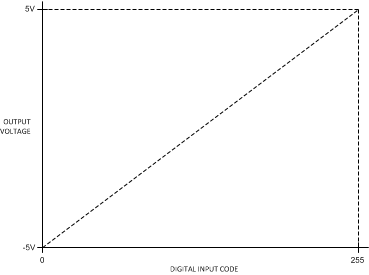

DAC082S085 Application1.gif Figure 36. Bipolar Input / Output Transfer Characteristic
