5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
¨STATIC CHARACTERISTICS
BVDSS Drain-to-Source Voltage VGS = 0 V, ID = 250 μA 60 V
IDSS Drain-to-Source Leakage Current VGS = 0 V, VDS = 48 V 1 μA
IGSS Gate-to-Source Leakage Current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-Source Threshold Voltage VDS = VGS, ID = 250 μA 1.5 1.9 2.3 V
RDS(on) Drain-to-Source On-Resistance VGS = 4.5 V, ID = 18 A 6.5 8.5 mΩ
VGS = 10 V, ID = 18 A 4.7 5.9 mΩ
gƒs Transconductance VDS = 30 V, ID = 18 A 122 S
DYNAMIC CHARACTERISTICS
Ciss Input Capacitance VGS = 0 V, VDS = 30 V, ƒ = 1 MHz 2200 2750 pF
Coss Output Capacitance 292 365 pF
Crss Reverse Transfer Capacitance 7 9 pF
RG Series Gate Resistance 1.3 2.6 Ω
Qg Gate Charge Total (4.5 V) VDS = 30 V, ID = 18 A 14 18 nC
Qg Gate Charge Total (10 V) 29 36
Qgd Gate Charge Gate-to-Drain 5.4 nC
Qgs Gate Charge Gate-to-Source 6.6 nC
Qg(th) Gate Charge at Vth 4.7 nC
Qoss Output Charge VDS = 30 V, VGS = 0 V 31 nC
td(on) Turn On Delay Time VDS = 30 V, VGS = 10 V, IDS = 18 A, RG = 0 Ω 5.2 ns
tr Rise Time 5.5 ns
td(off) Turn Off Delay Time 15 ns
tƒ Fall Time 2.0 ns
DIODE CHARACTERISTICS
VSD Diode Forward Voltage ISD = 18 A, VGS = 0 V 0.8 1 V
Qrr Reverse Recovery Charge VDS= 30 V, IF = 18 A, di/dt = 300 A/μs 68 nC
trr Reverse Recovery Time 40 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Thermal Resistance Junction to Case(1) 1.3 °C/W
RθJA Thermal Resistance Junction to Ambient(1)(2) 50
(1) RθJC is determined with the device mounted on a 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu pad on a 1.5 inch × 1.5 inch (3.81 cm × 3.81 cm), 0.06 inch (1.52 mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu.
CSD18533Q5A M0137-01_LPS198.gif
 Max RθJA = 50°C/W when mounted on 1 inch2 (6.45 cm2) of
2 oz. (0.071 mm thick) Cu.
CSD18533Q5A M0137-02_LPS198.gif
 Max RθJA = 125°C/W when mounted on a minimum pad area of
2 oz. (0.071 mm thick) Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)
CSD18533Q5A graph01_SLPS444B.png

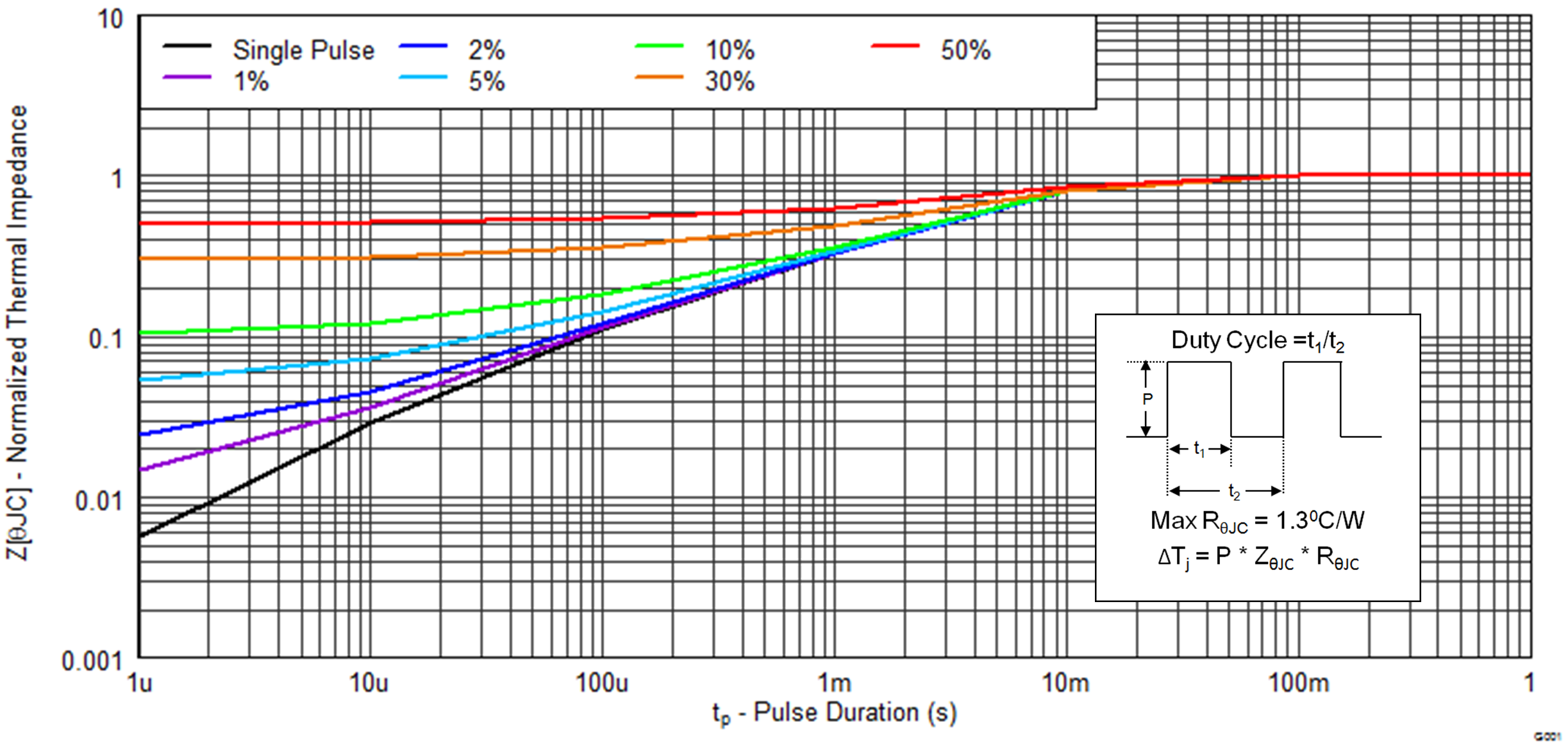

Figure 1. Transient Thermal Impedance
CSD18533Q5A graph02_SLPS388.png

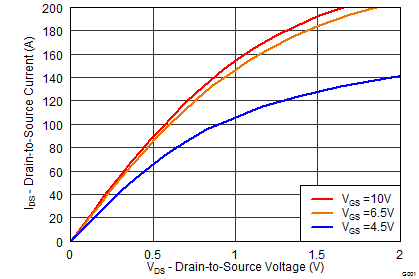

Figure 2. Saturation Characteristics
CSD18533Q5A graph04_SLPS388.png
Figure 4. Gate Charge
CSD18533Q5A graph06_SLPS388.png

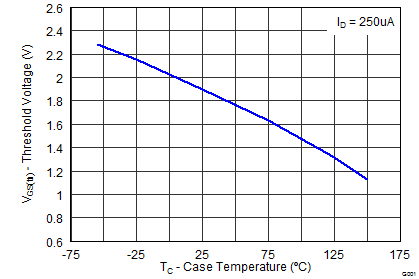

Figure 6. Threshold Voltage vs Temperature
CSD18533Q5A graph08p2_SLPS388.png
Figure 8. Normalized On-State Resistance vs Temperature
CSD18533Q5A graph10_SLPS388B.png

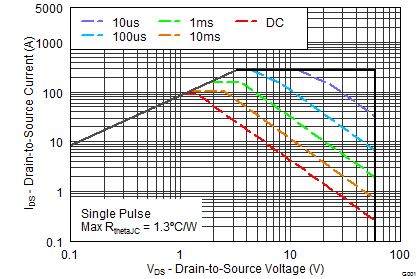

Figure 10. Maximum Safe Operating Area
CSD18533Q5A graph12p3_SLPS388.png
Figure 12. Maximum Drain Current vs Temperature
CSD18533Q5A graph03_SLPS388.png
Figure 3. Transfer Characteristics
CSD18533Q5A graph05_SLPS388.png

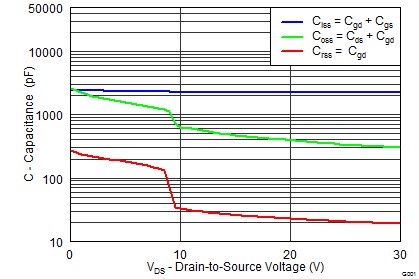

Figure 5. Capacitance
CSD18533Q5A graph07p2_SLPS388.png
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD18533Q5A graph09_SLPS388.png

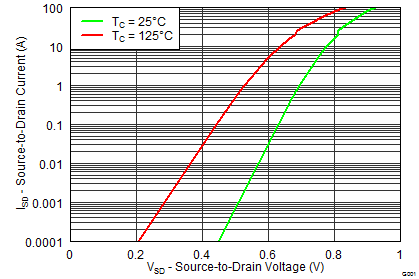

Figure 9. Typical Diode Forward Voltage
CSD18533Q5A graph11_SLPS388.png
Figure 11. Single Pulse Unclamped Inductive Switching
