9 Parameter Measurement Information

9.1 Characterization Test Setup

This section describes the characterization test setup of each block in the CDCM6208V2G.

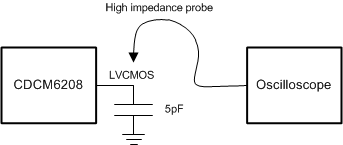

CDCM6208V2G LVCMOS_Output_AC_VOH_VOL_SCAS931.gif Figure 8. LVCMOS Output AC Configuration During Device Test (VOH, VOL, tSLEW)

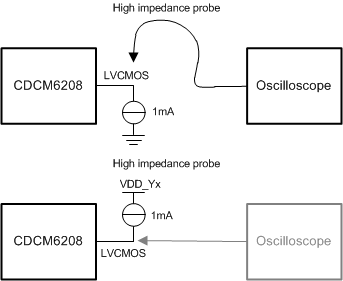

CDCM6208V2G LVCMOS_Output_DC_SCAS931.gif Figure 9. LVCMOS Output DC Configuration During Device Test
CDCM6208V2G LVCMOS_Output_AC_SCAS931.gif Figure 10. LVCMOS Output AC Configuration During Device Phase Noise Test
CDCM6208V2G LVDS_CML_and_LVPECL_SCAS931.gif Figure 11. LVDS, CML, and LVPECL Output AC Configuration During Device Test
CDCM6208V2G HCSL_Output_DC_SCAS931.gif Figure 12. HCSL Output DC Configuration During Device Test

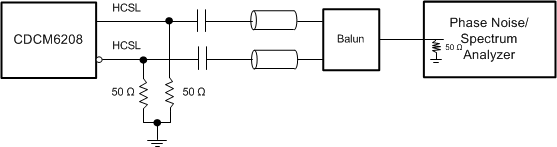

CDCM6208V2G HCSL_Output_AC_SCAS931.gif Figure 13. HCSL Output AC Configuration During Device Test
CDCM6208V2G LVCMOS_Input_DC_SCAS931.gif Figure 14. LVCMOS Input DC Configuration During Device Test

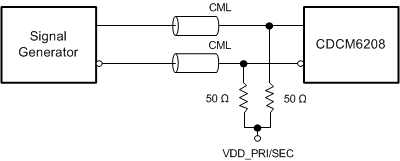

CDCM6208V2G CML_Input_DC_SCAS931.gif Figure 15. CML Input DC Configuration During Device Test
CDCM6208V2G LVDS_Input_DC_SCAS931.gif Figure 16. LVDS Input DC Configuration During Device Test

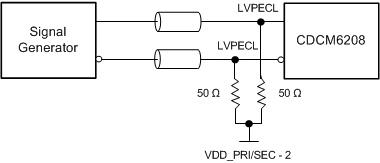

CDCM6208V2G LVPECL_Input_DC_SCAS931.gif Figure 17. LVPECL Input DC Configuration During Device Test

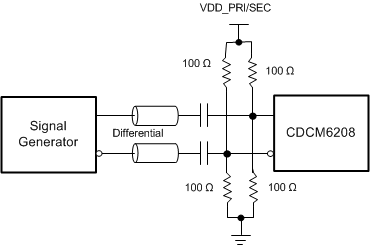

CDCM6208V2G Differential_Input_AC_SCAS931.gif Figure 18. Differential Input AC Configuration During Device Test
CDCM6208V2G Crystal_Reference_Input_SCAS931.gif Figure 19. Crystal Reference Input Configuration During Device Test

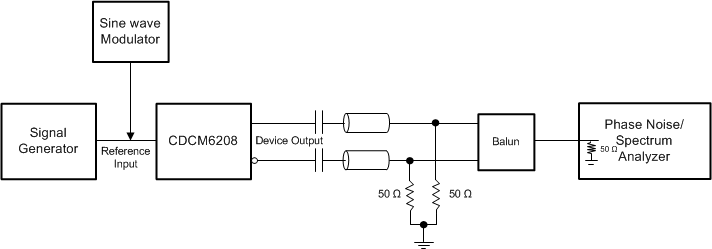

CDCM6208V2G Jitter_transfer_SCAS931.gif Figure 20. Jitter transfer Test Setup

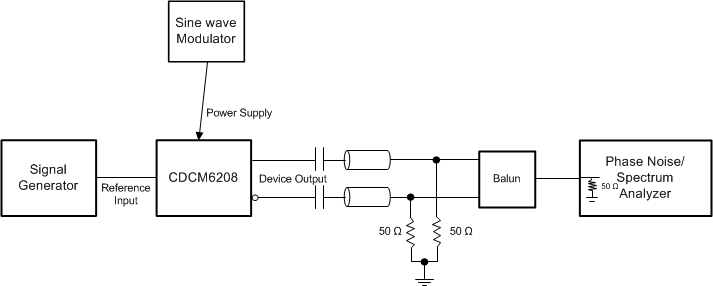

CDCM6208V2G PSNR_test_setup_SCAS931.gif Figure 21. PSNR Test Setup
CDCM6208V2G Differential_Output_Voltage_SCAS931.gif Figure 22. Differential Output Voltage and Rise and Fall Time

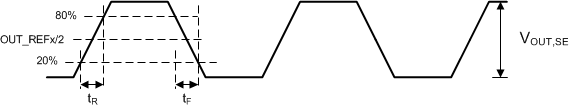

CDCM6208V2G Single_ended_Output_Voltage_SCAS931.gif Figure 23. Single Ended Output Voltage and Rise and Fall Time
CDCM6208V2G Differential_and_single_ended_output_SCAS931.gif Figure 24. Differential and Single Ended Output Skew and Propagation Delay
