Jitter Considerations in SERDES Systems

As shown in Figure 50, the bandwidth of TX and RX is the frequency range in which clock jitter adds without any attenuation to the jitter budget of the link. Outside of these frequencies, the SERDES link will attenuate clock jitter with a 20 dB/dec or even steeper roll-off.

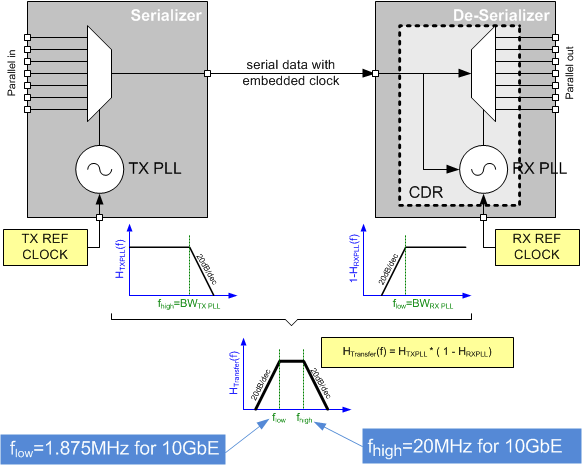

CDCM6208 Serial_Link_Jitter_SCAS931.gifFigure 50. Serial Link Jitter Budget Explanation

Example: SERDES link with KeyStone™ I DSP

The SERDES TX PLL of the TI KeyStone™ I DSP family (see Hardware Design Guide for KeyStone Devices (SPRABI2)) for the SRIO interface has a 13-MHz PLL bandwidth (Low Pass Characteristic, see Figure 50). The CDCM6208V2, pin-mode 27, was characterized in this example over Process, Voltage and Temperature (PVT) with a low-pass filter of 13 MHz to simulate the TX PLL. The attenuation is higher or equal to 20 dB/dec; therefore, the characterization used 20 dB/dec as worst case.

Table 41 shows the maximum total jitter over PVT with and without a low-pass filter.

Table 41. Maximum Total Jitter(1) Over PVT With and Without Low-Pass Filter

OUTPUT FREQUENCY
[MHz]
MAX TJ [ps]
DSP SPEC
MAX TJ [ps]
WITHOUT LOW-PASS FILTER
MAX TJ [ps]
WITH 13-MHZ LOW-PASS FILTER
Y0 122.88 56 9.43 8.19
Y2 30.72 56 9.60 7.36
Y3 30.72 56 9.47 7.42
Y4 156.25
(6 bit fraction)
56 57.66 17.48
Y5 156.25
(20 bit fraction)
56 76.87 32.32
Y6 100.00 56 86.30 33.86
Y7 66.667 300 81.71 35.77
Input signal: 250-fs RMS (Integration Range 12 kHz to 5 MHz)

Figure 51 shows the maximum Total Jitter with and without low-pass filter characteristic and the maximum TI KeyStone™ I specification.

CDCM6208 Max_Jitter_cas931.pngFigure 51. Maximum Jitter Over PVT

NOTE

Due to the damping characteristic of the DSP SERDES PLLs, the actual TJ data can be worse.
