Parameter Measurement Information

CDCLVD1208 DC_conf_tst_cas899.gif Figure 3. LVDS Output DC Configuration During Device Test
CDCLVD1208 AC_conf_tst_cas899.gif Figure 4. LVDS Output AC Configuration During Device Test
CDCLVD1208 DC_coup_tst_cas899.gif Figure 5. DC-Coupled LVCMOS Input During Device Test

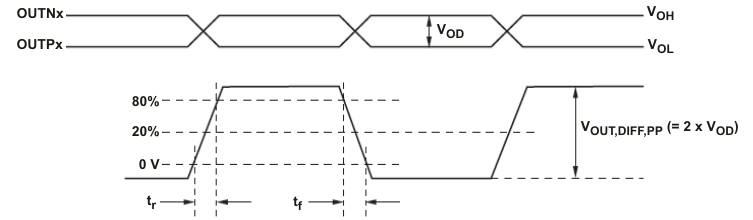

CDCLVD1208 rise_fall_tim_cas899.gif Figure 6. Output Voltage and Rise/Fall Time
CDCLVD1208 op_skew_cas899.gif

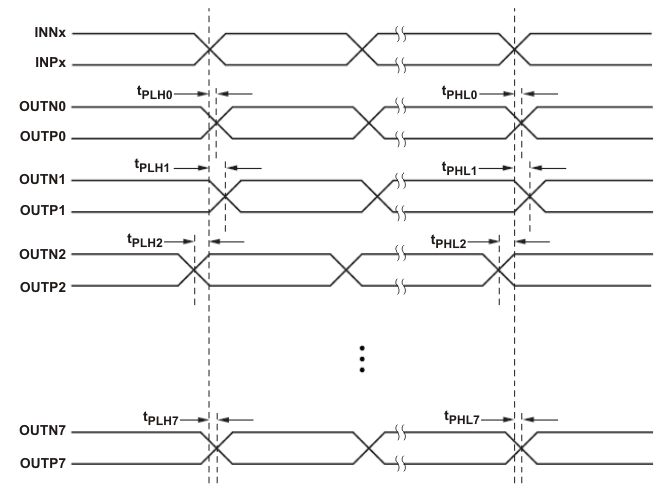

Output skew is calculated as the greater of the following: the difference between the fastest and the slowest tPLHn or the difference between the fastest and the slowest tPHLn (n = 0, 1, 2, ..7)
Part to part skew is calculated as the greater of the following: the difference between the fastest and the slowest tPLHn or the difference between the fastest and the slowest tPHLn across multiple devices (n = 0, 1, 2, ..7)
Figure 7. Output Skew and Part-to-Part Skew
CDCLVD1208 overshoot_cas899.gif Figure 8. Output Overshoot and Undershoot

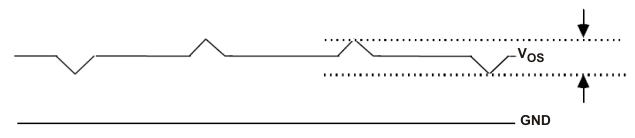

CDCLVD1208 AC_comm_mode_cas899.gif Figure 9. Output AC Common Mode
