Features

  • Schmitt-Trigger Inputs
  • Hysteresis Voltage (Typical):
    • 0.9 V at VDD = 5 V
    • 2.3 V at VDD = 10 V
    • 3.5 V at VDD = 15 V
  • Noise Immunity Greater Than 50%
  • No Limit On Input Rise and Fall Times
  • Standardized, Symmetrical Output Characteristics
  • For Quiescent Current at 20 V
  • Maximum Input Current Of 1 µA at 18 V Over Full Package Temperature Range:
    • 100 nA at 18 V and 25°C
  • Low VDD and VSS Current During Slow Input Ramp
  • 5-V, 10-V, and 15-V Parametric Ratings

Applications

  • Wave and Pulse Shapers
  • High-Noise-Environment Systems
  • Monostable Multivibrators
  • Astable Multivibrators

Description

The CD40106B device consists of six Schmitt-Trigger inputs. Each circuit functions as an inverter with Schmitt-Trigger input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (VP) and the negative-going voltages (VN) is defined as hysteresis voltage (VH).

The CD40106B device is supplied in ceramic packaging (J) as well as standard packaging (D, N, NS, PW). All CD40106B devices are rated for –55°C to +125°C ambient temperature operation.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
CD40106BF CDIP (14) 6.92 mm x 19.94 mm
CD40106BE PDIP (14) 6.30 mm x 19.31 mm
CD40106BM SOIC (14) 3.90 mm x 8.65 mm
CD40106BNSR SO (14) 5.30 mm x 10.20 mm
CD40106BPWR TSSOP (14) 4.40 mm x 5.00 mm
  1. For all available packages, see the orderable addendum at the end of the data sheet.

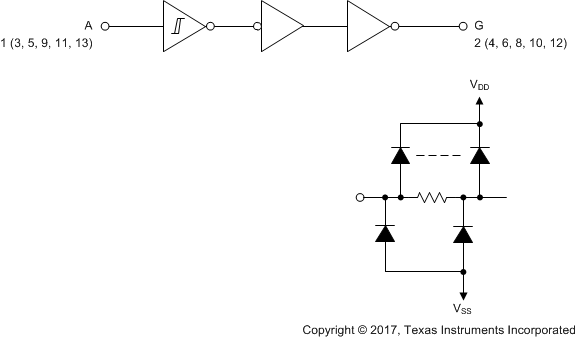

Logic Diagram

CD40106B Logic_Diag_SCHS097.gif
All inputs protected by the protection network shown to the right
