3 说明

BQ25618/619 将充电、升压转换器和电压保护功能集成在单个器件中。该器件为开关充电器提供了业界超低的终止电流，从而以最大电池容量为可穿戴设备充电。BQ25618/619 具有出色的低静态电流，可在运输模式下将电池泄漏降低至 6uA，从而节约电池电量，将器件的货架期延长一倍。BQ25619 采用 4mm x 4mm QFN 封装，以便于布局。BQ25618 采用 2.0mm x 2.4mm WCSP 封装，适用于空间受限的设计。

封装信息
器件型号 封装(1) 封装尺寸(2) 封装尺寸（标称值）
BQ25618 YFF（DSBGA，30） 2.20mm × 2.60mm 2.00mm × 2.40mm
BQ25619 RTW (WQFN, 24) 4.00mm × 4.00mm 4.00mm × 4.00mm
(1) 有关所有可用封装，请参阅节 13。
(2) 封装尺寸（长 × 宽）为标称值，并包括引脚（如适用）。

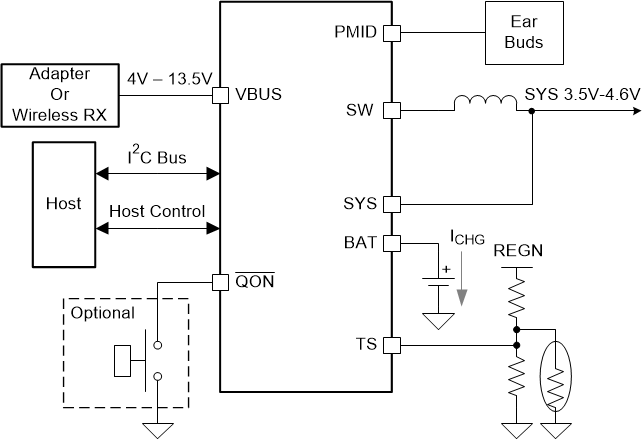

BQ25618 BQ25619 简化版应用简化版应用
