9.2.3.3 Application Curves

VIN_DC = low impedance voltage source = 1.5 V
VBAT = VSTOR = 100 µF
VSTOR = 500 Ω resistor
Figure 9-16 Startup

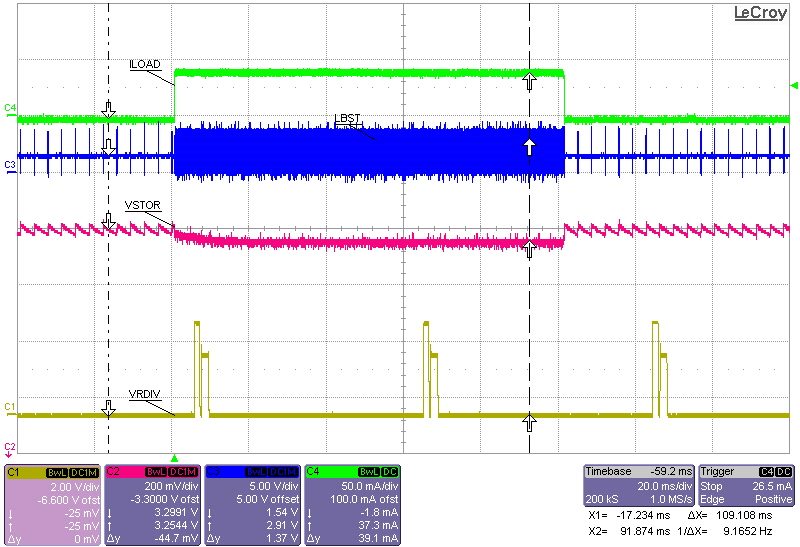

VIN_DC = low impedance voltage source = 1.5 V )
VBAT = VSTOR = 100 µF
VSTOR = open to 75 Ω to open resistive load (IL = load current on VSTOR
Figure 9-18 40 mA Load Transient on VSTOR
VIN_DC = low impedance voltage source = 1.5 V
VBAT = VSTOR = 100 µF
VSTOR artificially ramped from 0 V to 3.3 V to 0 V using a power amp driven by a function generator
Figure 9-20 VBAT_OK Operation

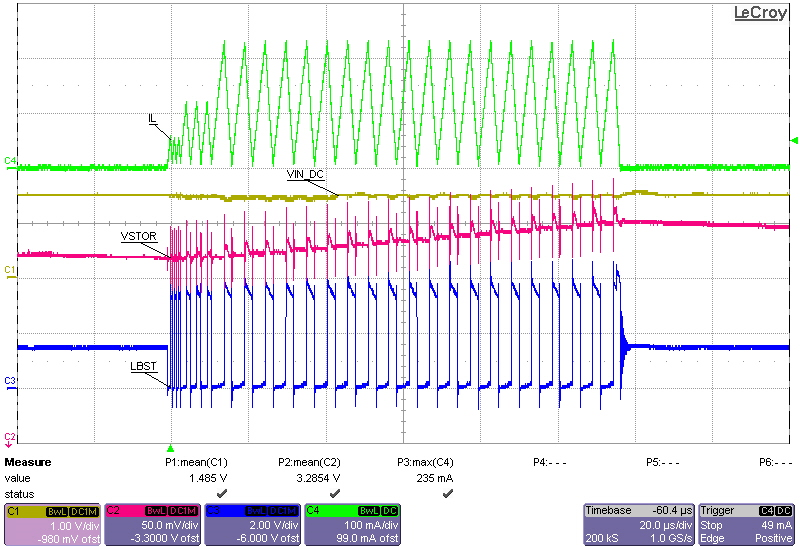

VIN_DC = low impedance voltage source = 1.5 V
VBAT = VSTOR = 100 µF
VSTOR = 330 Ω resistive load (IL = inductor current)
Figure 9-17 Boost Charger Operational Waveforms

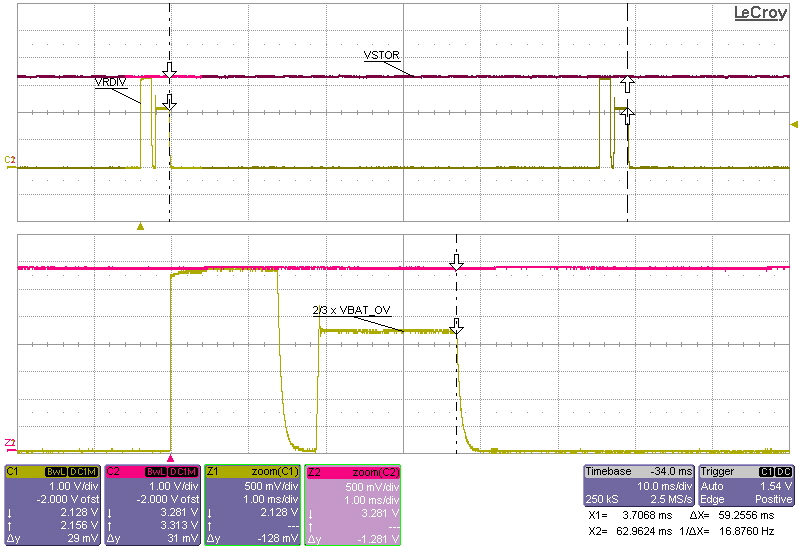

VIN_DC = low impedance voltage source = 1.5 V
VBAT = VSTOR = 100 µF
Figure 9-19 VRDIV Operation
