10.2.3.2 SYS Output Curves

TA = 25°CVSYS = 1.2 V
Figure 10-10 1.2 VSYS System Efficiency
TA = 25°CVSYS = 1.8 V
Figure 10-12 1.8 VSYS System Efficiency
TA = 25°CVSYS = 3.3 V
Figure 10-14 3.3 VSYS System Efficiency
TA = 25°CVSYS = 1.5 V
Figure 10-16 1.5 VSYS Load Regulation
TA = 25°CVSYS = 2.5 V
Figure 10-18 2.5 VSYS Load Regulation

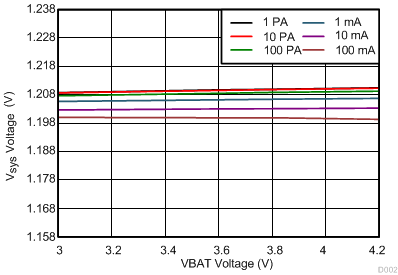

TA = 25°CVSYS = 1.2 V

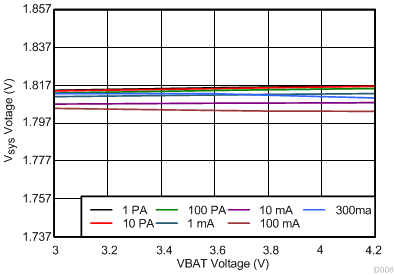

Figure 10-20 1.2 VSYS Line Regulation
TA = 25°CVSYS = 1.8 V
Figure 10-22 1.8 VSYS Line Regulation
TA = 25°CVSYS = 3.3 V
Figure 10-24 3.3 VSYS Line Regulation
ILOAD = 10 µA

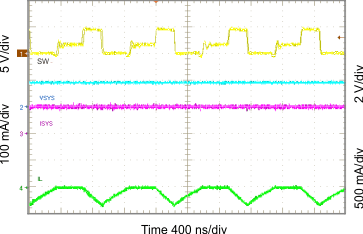

Figure 10-26 Light Load Operation Showing SW
ILOAD = 1 mA

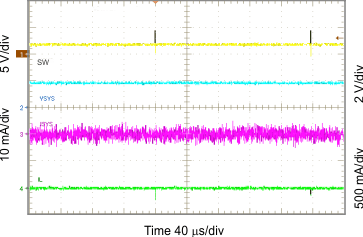

Figure 10-28 Light Load Operation Showing SW
ILOAD = 100 mA
Figure 10-30 Light Load Operation Showing SW
ILOAD = 300 mA
Figure 10-32 Light Load Operation Showing SW
VSYS = 1.8 V

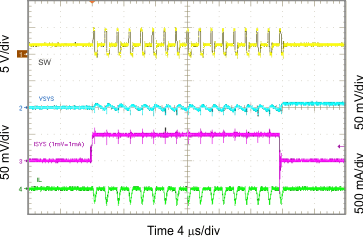

Figure 10-34 1.8 VSYS Load Transient, 0 to 50 mA
VSYS = 2.5 V
Figure 10-36 2.5 VSYS Load Transient, 0 to 50 mA
VSYS = 1.2 V
Figure 10-38 1.2 VSYS Load Transient, 0 to 200 mA
VSYS = 2.1 V
Figure 10-40 2.1 VSYS Load Transient, 0 to 200 mA
VSYS = 3.3 V
Figure 10-42 3.3 VSYS Load Transient, 0 to 200 mA

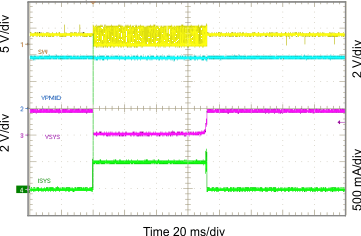

GUID-A4568447-3319-435D-9EB1-976AED2C135F-low.gifFigure 10-44 Short Circuit and Recovery for SYS
TA = 25°CVSYS = 1.5 V
Figure 10-11 1.5 VSYS System Efficiency

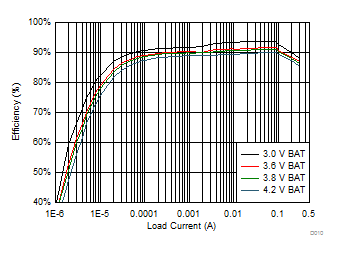

TA = 25°CVSYS = 2.5 V
Figure 10-13 2.5 VSYS System Efficiency
TA = 25°CVSYS = 1.2 V
Figure 10-15 1.2 VSYS Load Regulation
TA = 25°CVSYS = 1.8 V
Figure 10-17 1.8 VSYS Load Regulation
TA = 25°CVSYS = 3.3 V
Figure 10-19 3.3 VSYS Load Regulation
TA = 25°CVSYS = 1.5 V
Figure 10-21 1.5 VSYS Line Regulation
TA = 25°CVSYS = 2.1 V
Figure 10-23 2.1 VSYS Line Regulation

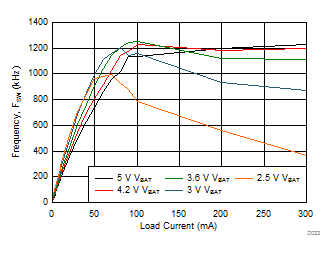

GUID-6A924653-B426-4A9C-9C40-C26FF3E5BC76-low.gifFigure 10-25 1.8 VSYS Switching Frequency vs Load Current
ILOAD = 100 mA

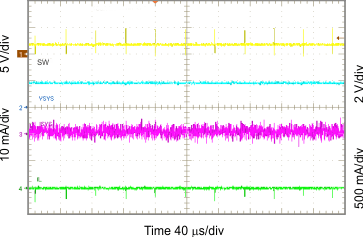

Figure 10-27 Light Load Operation Showing SW
ILOAD = 10 mA

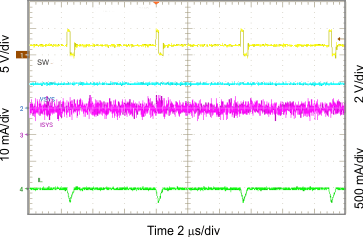

Figure 10-29 Light Load Operation Showing SW
ILOAD = 200 mA
Figure 10-31 Light Load Operation Showing SW
VSYS = 1.2 V
Figure 10-33 1.2 VSYS Load Transient, 0 to 50 mA
VSYS = 2.1 V
Figure 10-35 2.1 VSYS Load Transient, 0 to 50 mA
VSYS = 3.3 V

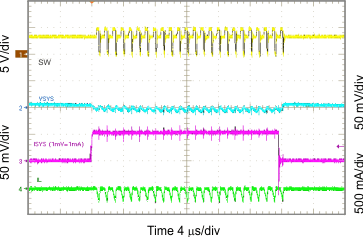

Figure 10-37 3.3 VSYS Load Transient, 0 to 50 mA
VSYS = 1.8 V
Figure 10-39 1.8 VSYS Load Transient, 0 to 200 mA
VSYS = 2.5 V

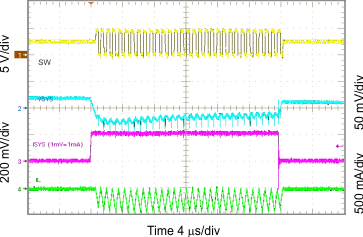

Figure 10-41 2.5 VSYS Load Transient, 0 to 200 mA
GUID-600335E9-AE3B-43D6-9531-8494689F7021-low.gifFigure 10-43 Startup Showing SS on SYS in PWM Mode
