9 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

9.1 Application Information

A typical application consists of the device configured as an I2C controlled power path management device and a single cell Li-Ion battery charger for single cell Li-Ion and Li-polymer batteries used in a wide range of tablets and other portable devices. It integrates an input reverse-blocking FET (RBFET, Q1), high-side switching FET (HSFET, Q2), low-side switching FET (LSFET, Q3), and BATFET (Q4) between the system and battery. The device also integrates a bootstrap diode for the high-side gate drive.

9.2 Typical Application

bq24298 app_diag2_SLUSC59.gifFigure 38. bq24298 with PSEL from PHY, Charging from SDP/DCP, and Optional BATFET Enable Interface

9.2.1 Design Requirements

Table 17. Design Requirements

DESIGN PARAMATER EXAMPLE VALUE
Input voltage range 3.9 V to 6.2 V
Input current limit 3000 mA
Fast charge current 3000 mA
Boost mode output current 1.5 A

9.2.2 Detailed Design Procedure

9.2.2.1 Inductor Selection

The device has 1.5-MHz switching frequency to allow the use of small inductor and capacitor values. The Inductor saturation current should be higher than the charging current (ICHG) plus half the ripple current (IRIPPLE):

Equation 4. bq24298 Eq5_slusaw5.gif

The inductor ripple current depends on input voltage (VBUS), duty cycle (D = VBAT/VVBUS), switching frequency (fs) and inductance (L):

Equation 5. bq24298 Eq6_slusaw5.gif

The maximum inductor ripple current happens with D = 0.5 or close to 0.5. Usually inductor ripple is designed in the range of (20 – 40%) maximum charging current as a trade-off between inductor size and efficiency for a practical design.

9.2.2.2 Input Capacitor

Input capacitor should have enough ripple current rating to absorb input switching ripple current. The worst case RMS ripple current is half of the charging current when duty cycle is 0.5. If the converter does not operate at 50% duty cycle, then the worst case capacitor RMS current ICIN occurs where the duty cycle is closest to 50% and can be estimated by the following equation:

Equation 6. bq24298 Eq7_slusaw5.gif

For best performance, VBUS should be decouple to PGND with 1-μF capacitance. The remaining input capacitor should be place on PMID.

Low ESR ceramic capacitor such as X7R or X5R is preferred for input decoupling capacitor and should be placed to the drain of the high side MOSFET and source of the low side MOSFET as close as possible. Voltage rating of the capacitor must be higher than normal input voltage level. 25-V rating or higher capacitor is preferred for 15-V input voltage. 22-μF capacitance is suggested for typical of 3-A to 4-A charging current.

9.2.2.3 Output Capacitor

Output capacitor also should have enough ripple current rating to absorb output switching ripple current. The output capacitor RMS current ICOUT is given:

Equation 7. bq24298 Eq8_slusaw5.gif

The output capacitor voltage ripple can be calculated as follows:

Equation 8. bq24298 Eq9_slusaw5.gif

At certain input/output voltage and switching frequency, the voltage ripple can be reduced by increasing the output filter LC.

The charger device has internal loop compensator. To get good loop stability, the resonant frequency of the output inductor and output capacitor should be designed between 15 kHz and 25 kHz. The preferred ceramic capacitor is 6 V or higher rating, X7R or X5R.

9.2.3 Application Performance Plots

bq24298 scope_1_lusbc1.gif
VBAT = 3.2 V
Figure 39. Power Up with Charge Enabled
bq24298 scope_5_lusbc1.gif
Figure 41. Charge Disable
bq24298 scope_7_lusbc1.gif
VBUS = 5 V, VBAT = 3.6 V, ICHG = 2.5 A
Figure 43. PFM Switching in Buck Mode
bq24298 scope_9_lusbc1.gif
VBUS = 5 V, IIN = 1.5 A, VBAT = 3.8 V
Figure 45. Load Transient During Supplement Mode
bq24298 scope_11_lusbc1.gif
VBAT = 3.8 V
Figure 47. Boost Mode Load Transient

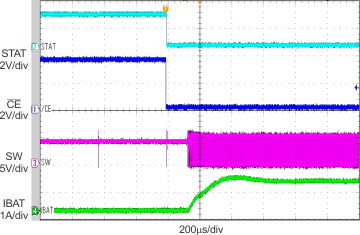

bq24298 scope_4_lusbc1.gif
VBAT = 5 V
Figure 40. Charge Enable
bq24298 scope_6_lusbc1.gif
VBUS = 5 V, No Battery, ISYS = 40 mA, Charge Disable
Figure 42. PWM Switching in Buck Mode
bq24298 scope_8_lusbc1.gif
VBUS = 5 V, IIN = 3 A, No Battery, Charge Disable
Figure 44. Input Current DPM Response without Battery
bq24298 scope_10_lusbc1.gif
VBAT = 3.8 V, ILOAD = 1 A
Figure 46. Boost Mode Switching
