7.2.3 Application Curve

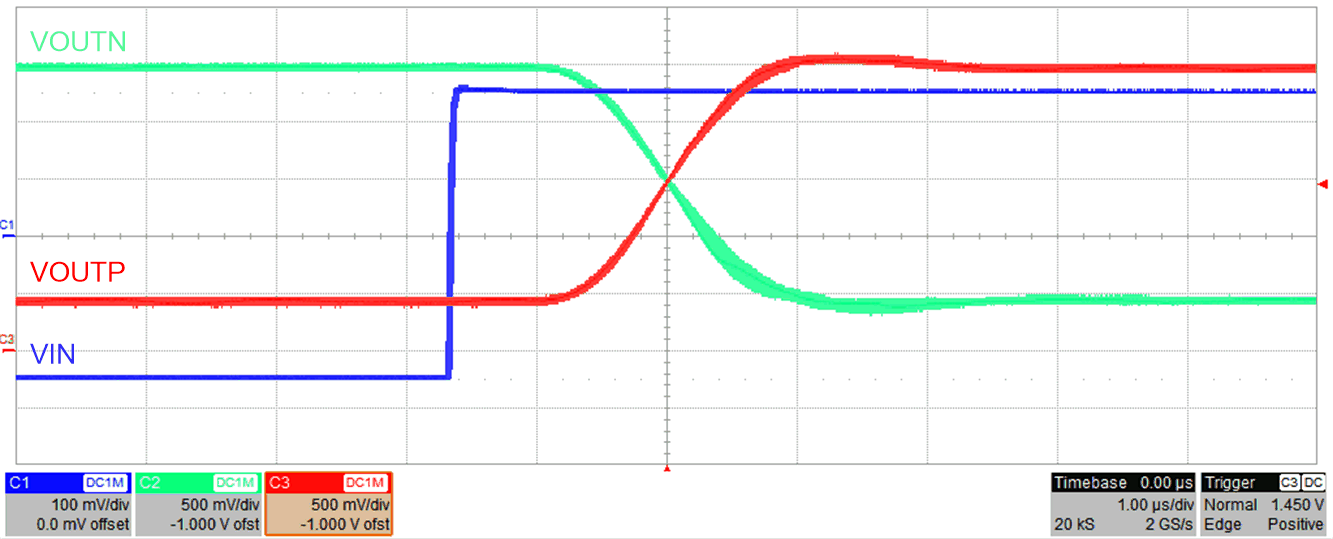

In frequency inverter applications, the power switches must be protected in case of an overcurrent condition. To allow for fast powering off of the system, a low delay caused by the isolated amplifier is required. Figure 7-4 shows the typical full-scale step response of the AMC3301. Consider the delay of the required window comparator and the MCU to calculate the overall response time of the system.

AMC3301 Step Response of the AMC3301
Figure 7-4 Step Response of the AMC3301
