6.8 Typical Characteristics

at TA = 25°C, AVDD = 5 V, DVDD = 3 V, internal reference VREF = 4.096 V, and fSAMPLE = 500 kSPS (unless otherwise noted)

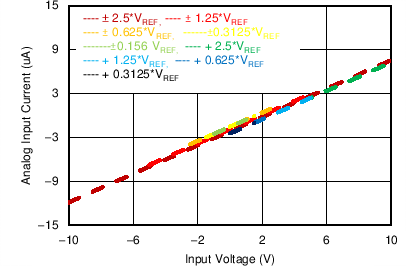

ADS8688AT C001_SBAS680.png
Figure 2. Input I-V Characteristic
ADS8688AT D005_SBAS813.gif

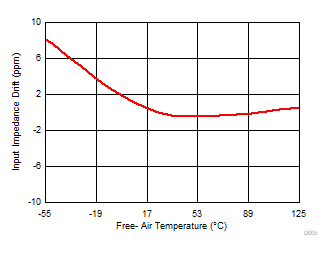

All input ranges
Figure 4. Input Impedance Variation vs Temperature
ADS8688AT C007_SBAS680.png

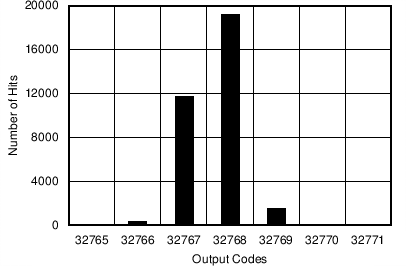

Mean = 32768.67, sigma = 0.58, input = 0 V,
range = ±2.5 × VREF
Figure 6. DC Histogram for Mid-Scale Inputs
(±2.5 × VREF)

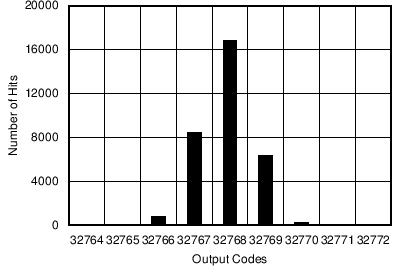

ADS8688AT C009_SBAS680.png
Mean = 32768.8, sigma = 0.76, input = 0 V,
range = ±0.625 × VREF
Figure 8. DC Histogram for Mid-Scale Inputs
(±0.625 × VREF)

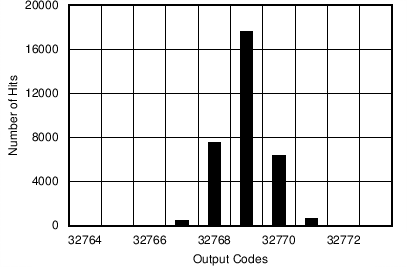

ADS8688AT C011_SBAS680.png
Mean = 32768.2, sigma = 0.75, input = 0.625 × VREF,
range = 1.25 × VREF
Figure 10. DC Histogram for Mid-Scale Inputs
(1.25 × VREF)
ADS8688AT C013_SBAS680.png
Mean = 32768.5, sigma = 2.68, input = 0 V,
range = ±0.15625 × VREF
Figure 12. DC Histogram for Mid-Scale Inputs
(±0.15625 × VREF)

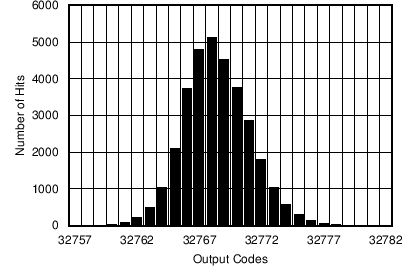

ADS8688AT C015_SBAS680.png
Mean = 32768.5, sigma = 2.68, input = 0.15625 × VREF,
range = 0.3125 × VREF
Figure 14. DC Histogram for Mid-Scale Inputs
(0.3125 × VREF)
ADS8688AT D017_SBAS813.gif
All input ranges

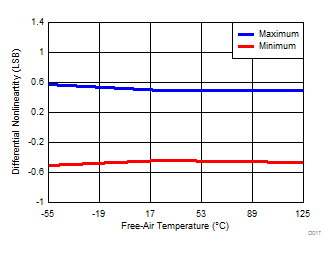

Figure 16. DNL vs Temperature

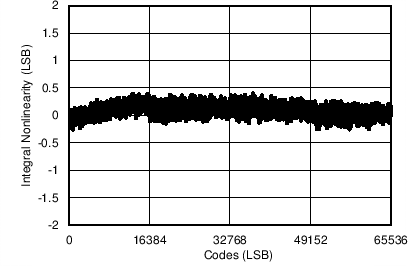

ADS8688AT C019_SBAS680.png
Range = ±1.25 × VREF
Figure 18. Typical INL for All Codes

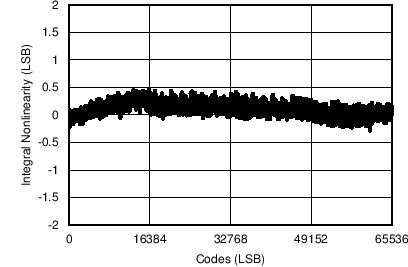

ADS8688AT C021_SBAS680.png
Range = 2.5 × VREF
Figure 20. Typical INL for All Codes

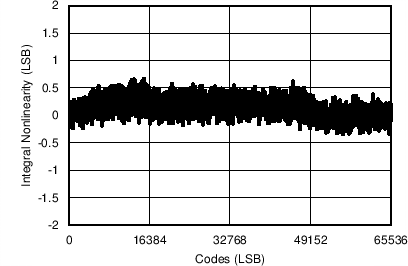

ADS8688AT C023_SBAS680.png
Range = ±0.3125 × VREF
Figure 22. Typical INL for All Codes
ADS8688AT C025_SBAS680.png

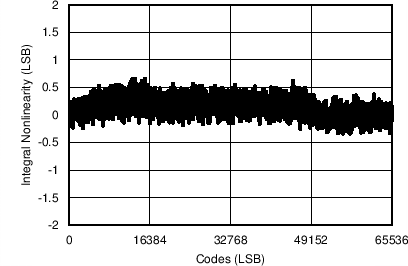

Range = 0.625 × VREF
Figure 24. Typical INL for All Codes

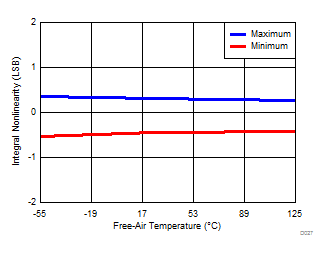

ADS8688AT D027_SBAS813.gif
Range = ±2.5 × VREF
Figure 26. INL vs Temperature (±2.5 × VREF)
ADS8688AT D029_SBAS813.gif
Range = ±0.625 × VREF
Figure 28. INL vs Temperature (±0.625 × VREF)

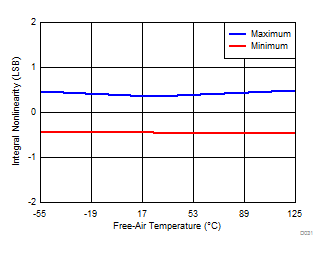

ADS8688AT D031_SBAS813.gif
Range = 1.25 × VREF
Figure 30. INL vs Temperature (1.25 × VREF)
ADS8688AT D033_SBAS813.gif
Range = ±0.15625 × VREF
Figure 32. INL vs Temperature (±0.15625 × VREF)

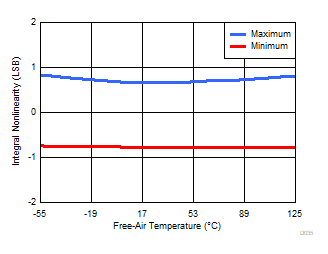

ADS8688AT D035_SBAS813.gif
Range = 0.3125 × VREF
Figure 34. INL vs Temperature (0.3125 × VREF)
ADS8688AT C037_SBAS680.png
Range = ±2.5 × VREF

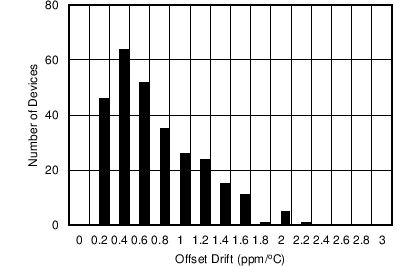

Figure 36. Typical Histogram for Offset Drift

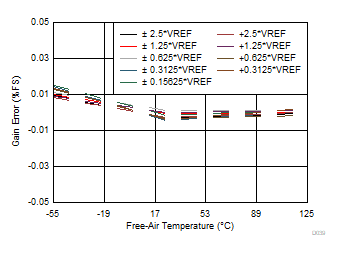

ADS8688AT D039_SBAS813.gif
Figure 38. Gain Error vs Temperature Across Input Ranges

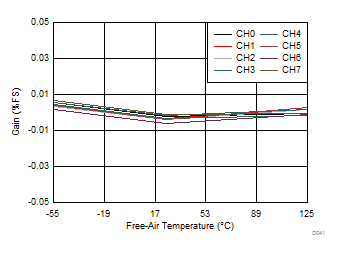

ADS8688AT D041_SBAS813.gif
Range = ±2.5 × VREF
Figure 40. Gain Error vs Temperature Across Channels

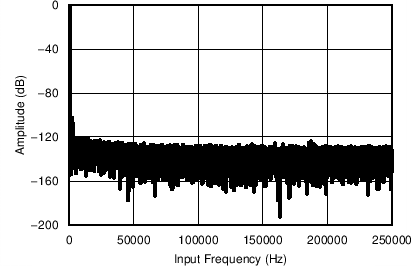

ADS8688AT C043_SBAS680.png
Number of points = 64k, fIN = 1 kHz, SNR = 92.3 dB,
SINAD = 91.9 dB, THD = 101 dB, SFDR = 104 dB
Figure 42. Typical FFT Plot (±2.5 × VREF)
ADS8688AT C045_SBAS680.png
Number of points = 64k, fIN = 1 kHz, SNR = 89.6 dB,
SINAD = 89.5 dB, THD = 106 dB, SFDR = 107 dB
Figure 44. Typical FFT Plot (±0.625 × VREF)

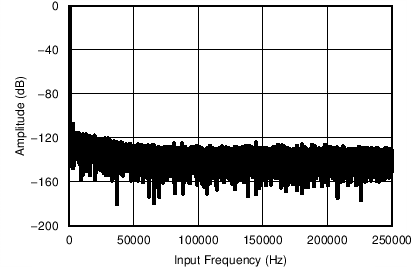

ADS8688AT C047_SBAS680.png
Number of points = 64k, fIN = 1 kHz, SNR = 89.6 dB,
SINAD = 89.5 dB, THD = –106 dB, SFDR = 107 dB
Figure 46. Typical FFT Plot (1.25 × VREF)
ADS8688AT C049_SBAS680.png
Number of points = 64k, fIN = 1 kHz, SNR = 77.6 dB,
SINAD = 77.6 dB, THD = –106 dB, SFDR = 107 dB
Figure 48. Typical FFT Plot (±0.15625 × VREF)
ADS8688AT C051_SBAS680.png
Number of points = 64k, fIN = 1 kHz, SNR = 77.55 dB,
SINAD = 77.5 dB, THD = –100 dB, SFDR = 107 dB
Figure 50. Typical FFT Plot (0.3125 × VREF)

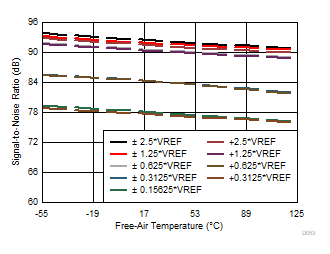

ADS8688AT D053_SNR_SBAS813.gif
fIN = 1 kHz
Figure 52. SNR vs Temperature

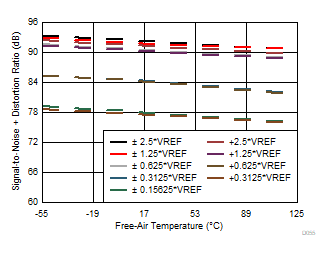

ADS8688AT D055_SINAD_SBAS813.gif
fIN = 1 kHz
Figure 54. SINAD vs Temperature

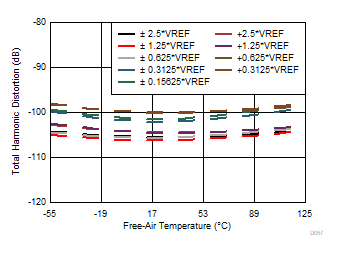

ADS8688AT D057_SBAS813.gif
fIN = 1 kHz
Figure 56. THD vs Temperature
ADS8688AT C059_SBAS680.png

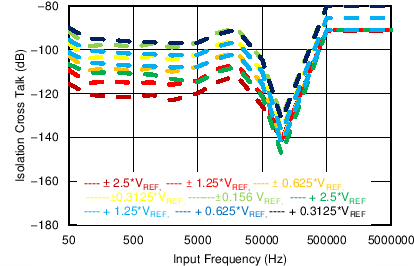

Figure 58. Isolation Crosstalk vs Frequency
ADS8688AT C061_SBAS680.png
Input = 2 × maximum input voltage
Figure 60. Isolation Crosstalk vs Frequency for
Overrange Inputs

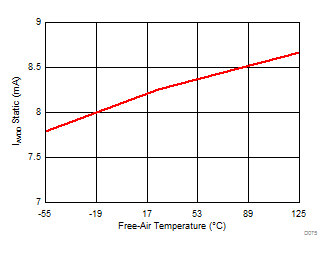

ADS8688AT D075_SBAS813.gif
Figure 62. AVDD Current vs Temperature
(During Sampling)

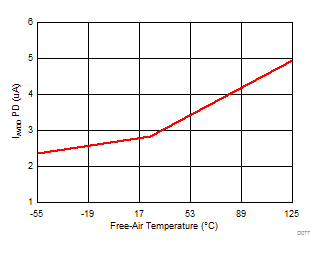

ADS8688AT D077_SBAS813.gif
Figure 64. AVDD Current vs Temperature
(Power Down)
ADS8688AT D002_SBAS813.gif
Input range = ±2.5 × VREF
Figure 3. Input Current vs Temperature

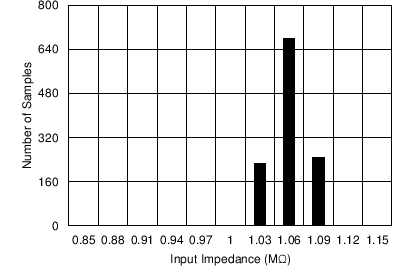

ADS8688AT C006_SBAS680.png
Number of samples = 1160
Figure 5. Typical Distribution of Input Impedance

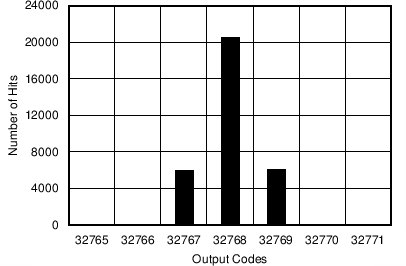

ADS8688AT C008_SBAS680.png
Mean = 32768.60, sigma = 0.63, input = 0 V,
range = ±1.25 × VREF
Figure 7. DC Histogram for Mid-Scale Inputs
(±1.25 × VREF)
ADS8688AT C010_SBAS680.png

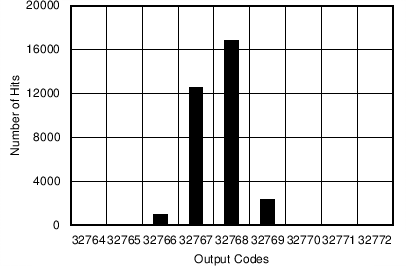

Mean = 32767.75, sigma = 0.65, input = 1.25 × VREF,
range = 2.5 × VREF
Figure 9. DC Histogram for Mid-Scale Inputs
(2.5 × VREF)

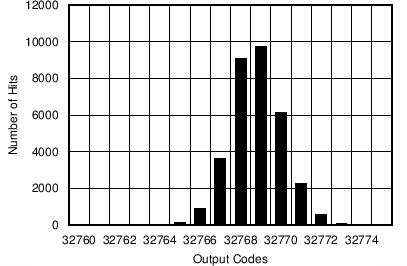

ADS8688AT C012_SBAS680.png
Mean = 32768.5, sigma = 1.30, input = 0 V,
range = ±0.3125 × VREF
Figure 11. DC Histogram for Mid-Scale Inputs
(±0.3125 × VREF)

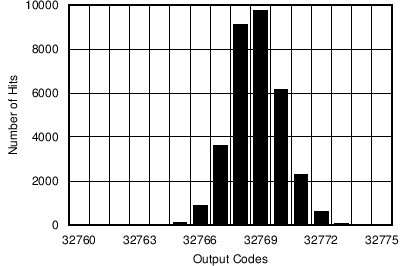

ADS8688AT C014_SBAS680.png
Mean = 32768.5, sigma = 1.30, input = 0.3125 × VREF,
range = 0.625 × VREF
Figure 13. DC Histogram for Mid-Scale Inputs
(0.625 × VREF)

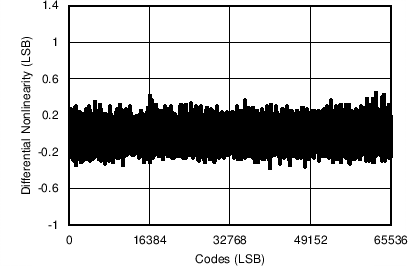

ADS8688AT C016_SBAS680.png
All input ranges
Figure 15. Typical DNL for All Codes
ADS8688AT C018_SBAS680.png

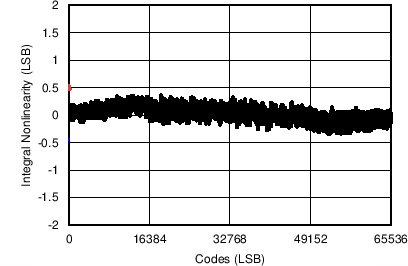

Range = ±2.5 × VREF
Figure 17. Typical INL for All Codes

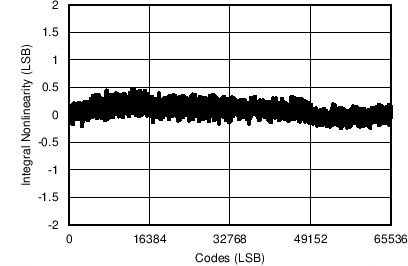

ADS8688AT C020_SBAS680.png
Range = ±0.625 × VREF
Figure 19. Typical INL for All Codes
ADS8688AT C022_SBAS680.png

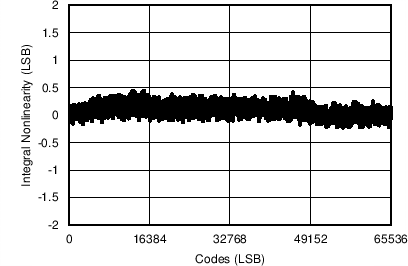

Range = 1.25 × VREF
Figure 21. Typical INL for All Codes
ADS8688AT C024_SBAS680.png
Range = ±0.15625 × VREF
Figure 23. Typical INL for All Codes

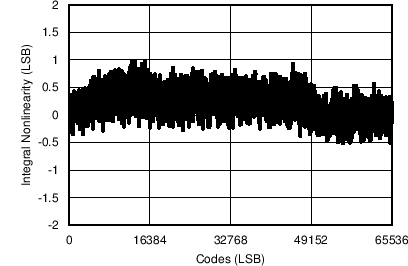

ADS8688AT C026_SBAS680.png
Range = 0.3125 × VREF
Figure 25. Typical INL for All Codes

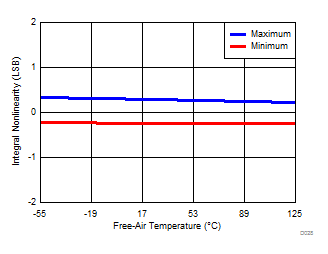

ADS8688AT D028_SBAS813.gif
Range = ±1.25 × VREF
Figure 27. INL vs Temperature (±1.25 × VREF)

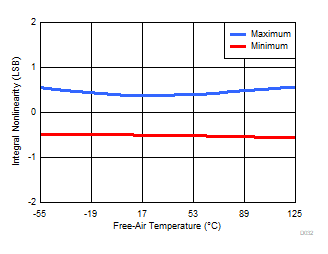

ADS8688AT D030_SBAS813.gif

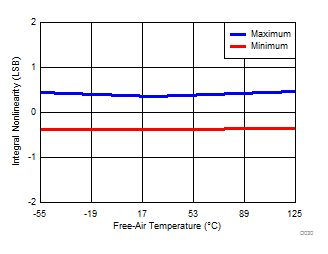

Range = 2.5 × VREF
Figure 29. INL vs Temperature (2.5 × VREF)
ADS8688AT D032_SBAS813.gif
Range = ±0.3125 × VREF
Figure 31. INL vs Temperature (±0.3125 × VREF)
ADS8688AT D034_SBAS813.gif
Range = 0.625 × VREF
Figure 33. INL vs Temperature (0.625 × VREF)
ADS8688AT D036_SBAS813.gif

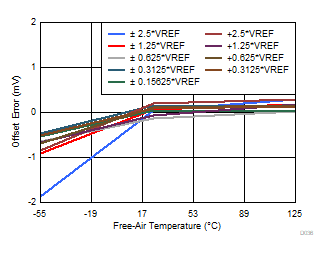

Figure 35. Offset Error vs
Temperature Across Input Ranges

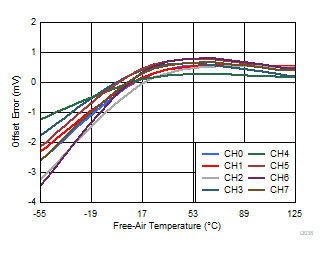

ADS8688AT D038_SBAS813.gif
Range = ±2.5 × VREF
Figure 37. Offset Error vs Temperature Across Channels

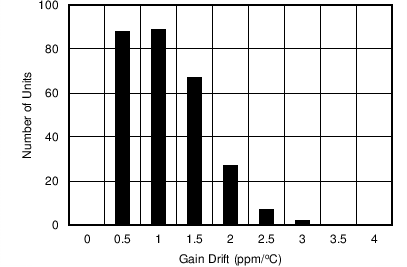

ADS8688AT C040_SBAS680.png
Range = ±2.5 × VREF
Figure 39. Typical Histogram for Gain Error Drift

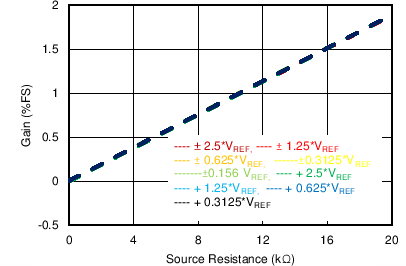

ADS8688AT C042_SBAS680.png
Figure 41. Gain Error vs External Resistance (REXT)

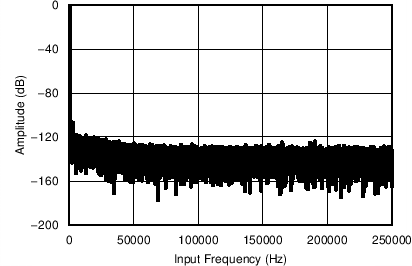

ADS8688AT C044_SBAS680.png
Number of points = 64k, fIN = 1 kHz, SNR = 91.4 dB,
SINAD = 91.2 dB, THD = 105 dB, SFDR = 107 dB
Figure 43. Typical FFT Plot (±1.25 × VREF)

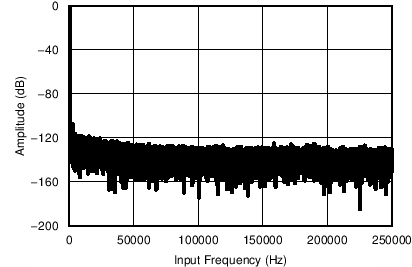

ADS8688AT C046_SBAS680.png
Number of points = 64k, fIN = 1 kHz, SNR = 90.93 dB,
SINAD = 90.48 dB, THD = 100 dB, SFDR = 102 dB
Figure 45. Typical FFT Plot (2.5 × VREF)
ADS8688AT C048_SBAS680.png
Number of points = 64k, fIN = 1 kHz, SNR = 83.55 dB,
SINAD = 83.5 dB, THD = –104 dB, SFDR = 107 dB
Figure 47. Typical FFT Plot (±0.3125 × VREF)
ADS8688AT C050_SBAS680.png
Number of points = 64k, fIN = 1 kHz, SNR = 83.55 dB,
SINAD = 83.5 dB, THD = –103 dB, SFDR = 107 dB
Figure 49. Typical FFT Plot (0.625 × VREF)

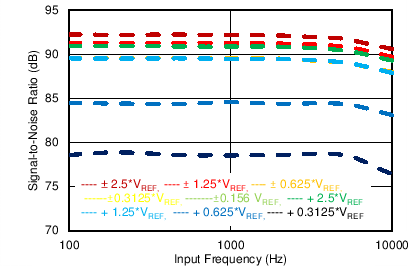

ADS8688AT C052_SBAS680.png
Figure 51. SNR vs Input Frequency
ADS8688AT C054_SBAS680.png
Figure 53. SINAD vs Input Frequency
ADS8688AT C056_SBAS680.png

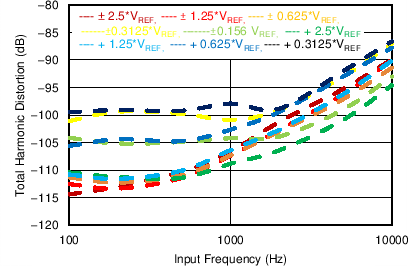

Figure 55. THD vs Input Frequency

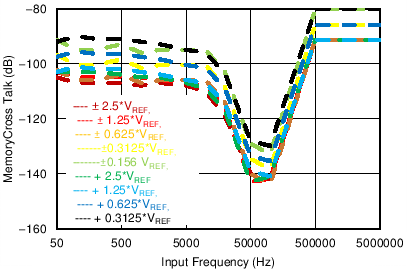

ADS8688AT C058_SBAS680.png

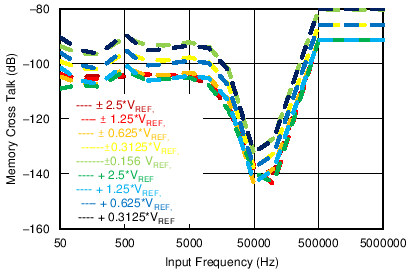

Figure 57. Memory Crosstalk vs Frequency
ADS8688AT C060_SBAS680.png
Input = 2 × maximum input voltage
Figure 59. Memory Crosstalk vs Frequency for
Overrange Inputs
ADS8688AT D074_SBAS813.gif
Figure 61. AVDD Current vs Temperature
(fS = 500 kSPS)
ADS8688AT D076_SBAS813.gif

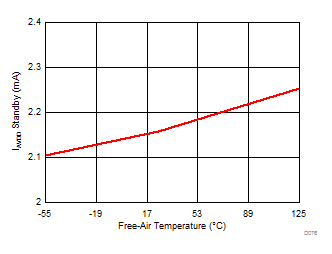

Figure 63. AVDD Current vs Temperature
(STANDBY)
