7 Specifications

7.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
AIN_nP, AIN_nGND to GND(2) –20 20 V
AIN_nP, AIN_nGND to GND(3) –11 11 V
AUX_GND to GND –0.3 0.3 V
AUX_IN to GND –0.3 AVDD + 0.3 V
AVDD to GND or DVDD to GND –0.3 7 V
REFCAP to REFGND or REFIO to REFGND –0.3 5.7 V
GND to REFGND –0.3 0.3 V
Digital input pins to GND –0.3 DVDD + 0.3 V
Digital output pins to GND –0.3 DVDD + 0.3 V
Operating temperature, TA –40 125 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) AVDD = 5 V or offers a low impedance of < 30 kΩ.
(3) AVDD = floating with an impedance > 30 kΩ.

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) Analog input pins (AIN_nP; AIN_nGND) ±4000 V
All other pins ±2000
Charged device model (CDM), per JEDEC specification JESD22-C101(2) ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
AVDD Analog supply voltage 4.75 5 5.25 V
DVDD Digital supply voltage 1.65 3.3 AVDD V

7.4 Thermal Information

THERMAL METRIC(1) ADS8674, ADS8678 UNIT
DBT (TSSOP)
38 PINS
RθJA Junction-to-ambient thermal resistance 68.8 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 19.9 °C/W
RθJB Junction-to-board thermal resistance 30.4 °C/W
ψJT Junction-to-top characterization parameter 1.3 °C/W
ψJB Junction-to-board characterization parameter 29.8 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance NA °C/W
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics

Minimum and maximum specifications are at TA = –40°C to 125°C. Typical specifications are at TA = 25°C.
AVDD = 5 V, DVDD = 3 V, VREF = 4.096 V (internal), and fSAMPLE = 500 kSPS, unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT TEST LEVEL(1)
ANALOG INPUTS
Full-scale input span(2)
(AIN_nP to AIN_nGND)
Input range = ±2.5 × VREF –2.5 × VREF 2.5 × VREF V A
Input range = ±1.25 × VREF –1.25 × VREF 1.25 × VREF A
Input range = ±0.625 × VREF –0.625 × VREF 0.625 × VREF A
Input range = ±0.3125 × VREF –0.3125 × VREF 0.3125 × VREF A
Input range = ±0.15625 × VREF –0.15625 × VREF 0.15625 × VREF A
Input range = 2.5 × VREF 0 2.5 × VREF A
Input range = 1.25 × VREF 0 1.25 × VREF A
Input range = 0.625 × VREF 0 0.625 × VREF A
Input range = 0.3125 × VREF 0 0.3125 × VREF A
AIN_nP Operating input range,
positive input
Input range = ±2.5 × VREF –2.5 × VREF 2.5 × VREF V A
Input range = ±1.25 × VREF –1.25 × VREF 1.25 × VREF A
Input range = ±0.625 × VREF –0.625 × VREF 0.625 × VREF A
Input range = ±0.3125 × VREF –0.3125 × VREF 0.3125 × VREF A
Input range = ±0.15625 × VREF –0.15625 × VREF 0.15625 × VREF A
Input range = 2.5 × VREF 0 2.5 × VREF A
Input range = 1.25 × VREF 0 1.25 × VREF A
Input range = 0.625 × VREF 0 0.625 × VREF A
Input range = 0.3125 × VREF 0 0.3125 × VREF A
AIN_nGND Operating input range,
negative input
All input ranges –0.1 0 0.1 V B
zi Input impedance At TA = 25°C,
all input ranges
0.85 1 1.15 B
Input impedance drift All input ranges 7 25 ppm/°C B
IIkg(in) Input leakage current With voltage at AIN_nP pin = VIN,
input range = ±2.5 × VREF
VIN – 2.25
————
RIN
µA A
With voltage at AIN_nP pin = VIN,
input range = ±1.25 × VREF
VIN – 2.00
————
RIN
A
With voltage at AIN_nP pin = VIN,
input ranges = ±0.625 × VREF; ±0.3125 × VREF; ±0.15625 × VREF
VIN – 1.60
————
RIN
A
With voltage at AIN_nP pin = VIN,
input range = 2.5 × VREF
VIN – 2.50
————
RIN
A
With voltage at AIN_nP pin = VIN,
input range = 1.25 × VREF; 0.625 × VREF; 0.3125 × VREF
VIN – 2.50
————
RIN
A
INPUT OVERVOLTAGE PROTECTION
VOVP Overvoltage protection voltage AVDD = 5 V or offers low impedance < 30 kΩ, all input ranges –20 20 V B
AVDD = floating with impedance
> 30 kΩ, all input ranges
–11 11 B
SYSTEM PERFORMANCE
Resolution 14 Bits A
NMC No missing codes 14 Bits A
DNL Differential nonlinearity –0.5 ±0.2 0.5 LSB(3) A
INL Integral nonlinearity(6) –0.75 ±0.25 0.75 LSB A
EG Gain error At TA = 25°C, all input ranges ±0.02 ±0.05 %FSR(4) A
Gain error matching
(channel-to-channel)
At TA = 25°C, all input ranges ±0.02 ±0.05 %FSR A
Gain error temperature drift All input ranges 1 4 ppm/°C B
EO Offset error At TA = 25°C,
input range = ±2.5 × VREF(10)
±0.5 ±1 mV A
At TA = 25°C,
all other input ranges
±0.5 ±2 A
Offset error matching
(channel-to-channel)
At TA = 25°C,
input range = ±2.5 × VREF(10)
±0.5 ±1 mV A
At TA = 25°C,
all other input ranges
±0.5 ±2 A
Offset error temperature drift Input range = ±2.5 × VREF 1 3 ppm/°C B
Input range = ±1.25 × VREF 1 3 B
Input range = ±0.625 × VREF 1 3 B
Input range = ±0.3125 × VREF 2 6 B
Input range = ±0.15625 × VREF 4 12 B
Input range = 0 to 2.5 × VREF 1 3 B
Input range = 0 to 1.25 × VREF 1 3 B
Input range = 0 to 0.625 × VREF 2 6 B
Input range = 0 to 0.3125 × VREF 4 12 B
SAMPLING DYNAMICS
tCONV Conversion time 850 ns A
tACQ Acquisition time 1150 ns A
fS Maximum throughput rate
without latency
500 kSPS A
DYNAMIC CHARACTERISTICS
SNR Signal-to-noise ratio
(VIN – 0.5 dBFS at 1 kHz)
Input range = ±2.5 × VREF 84.5 85 dB A
Input range = ±1.25 × VREF 84.2 85 A
Input range = ±0.625 × VREF 83.5 84.5 A
Input range = ±0.3125 × VREF 80 82 A
Input range = ±0.15625 × VREF 75 77 A
Input range = 2.5 × VREF 84 85 A
Input range = 1.25 × VREF 83.5 84.5 A
Input range = 0.625 × VREF 80 82 A
Input range = 0.3125 × VREF 75 77 A
THD Total harmonic distortion(5)
(VIN – 0.5 dBFS at 1 kHz)
All input ranges –100 dB B
SINAD Signal-to-noise ratio
(VIN – 0.5 dBFS at 1 kHz)
Input range = ±2.5 × VREF 84.3 84.8 dB A
Input range = ±1.25 × VREF 84 84.8 A
Input range = ±0.625 × VREF 83.3 84.3 A
Input range = ±0.3125 × VREF 80 82 A
Input range = ±0.15625 × VREF 75 77 A
Input range = 2.5 × VREF 83.8 84.8 A
Input range = 1.25 × VREF 83.3 84.3 A
Input range = 0.625 × VREF 80 82 A
Input range = 0.3125 × VREF 75 77 A
SFDR Spurious-free dynamic range
(VIN – 0.5 dBFS at 1 kHz)
All input ranges 101 dB B
Crosstalk isolation(7) Aggressor channel input overdriven to 2 × maximum input voltage 110 dB B
Crosstalk memory(8) Aggressor channel input overdriven to 2 × maximum input voltage 90 dB B
BW(–3 dB) Small-signal bandwidth, –3 dB At TA = 25°C, all input ranges 15 kHz B
BW(–0.1 dB) Small-signal bandwidth, –0.1 dB At TA = 25°C, all input ranges 2.5 kHz B
AUXILIARY CHANNEL
Resolution 14 Bits A
V(AUX_IN) AUX_IN voltage range (AUX_IN – AUX_GND) 0 VREF V A
Operating input range AUX_IN 0 VREF V A
AUX_GND 0 V A
Ci Input capacitance During sampling 75 pF C
During conversion 5 pF C
IIkg(in) Input leakage current 100 nA A
DNL Differential nonlinearity –0.75 ±0.5 0.75 LSB A
INL Integral nonlinearity –1 ±0.5 1 LSB A
EG(AUX) Gain error At TA = 25°C ±0.02 ±0.2 %FSR A
EO(AUX) Offset error At TA = 25°C –5 5 mV A
SNR Signal-to-noise ratio V(AUX_IN) = –0.5 dBFS at 1 kHz 83.3 84.4 dB A
THD Total harmonic distortion(5) V(AUX_IN) = –0.5 dBFS at 1 kHz –100 dB B
SINAD Signal-to-noise + distortion V(AUX_IN) = –0.5 dBFS at 1 kHz 83 84.3 dB A
SFDR Spurious-free dynamic range V(AUX_IN) = –0.5 dBFS at 1 kHz 100 dB B
INTERNAL REFERENCE OUTPUT
V(REFIO_INT)(9) Voltage on REFIO pin
(configured as output)
At TA = 25°C 4.094 4.096 4.098 V A
Internal reference temperature drift 8 20 ppm/°C B
C(OUT_REFIO) Decoupling capacitor on REFIO 10 22 µF B
V(REFCAP) Reference voltage to ADC
(on REFCAP pin)
At TA = 25°C 4.094 4.096 4.098 V A
Reference buffer output impedance 0.5 1 Ω B
Reference buffer temperature drift 0.6 1.5 ppm/°C B
C(OUT_REFCAP) Decoupling capacitor on REFCAP 10 22 μF B
Turn-on time C(OUT_REFCAP) = 22 µF,
C(OUT_REFIO) = 22 µF
15 ms B
EXTERNAL REFERENCE INPUT
VREFIO_EXT External reference voltage on REFIO (configured as input) 4.046 4.096 4.146 V C
POWER-SUPPLY REQUIREMENTS
AVDD Analog power-supply voltage Analog supply 4.75 5 5.25 V B
DVDD Digital power-supply voltage Digital supply range 1.65 3.3 AVDD V B
Digital supply range for specified performance 2.7 3.3 5.25 B
IAVDD_DYN Analog supply current Dynamic, AVDD For the ADS8678; AVDD = 5 V, fS = maximum and internal reference 13 16 mA A
For the ADS8674; AVDD = 5 V, fS = maximum and internal reference 8.5 11.5 A
IAVDD_STC Static For the ADS8678; AVDD = 5 V, device not converting and internal reference 10 12 mA A
For the ADS8674; AVDD = 5 V, device not converting and internal reference 5.5 8.5 A
ISTDBY Standby At AVDD = 5 V, device in STDBY mode and internal reference 3 4.5 mA A
IPWR_DN Power-down At AVDD = 5 V, device in PWR_DN 3 20 μA B
IDVDD_DYN Digital supply current At DVDD = 3.3 V, output = 0000h 0.5 mA A
DIGITAL INPUTS (CMOS)
VIH Digital input logic levels
DVDD > 2.1 V
0.7 × DVDD DVDD + 0.3 V A
VIL –0.3 0.3 × DVDD A
VIH Digital input logic levels
DVDD ≤ 2.1 V
0.8 × DVDD DVDD + 0.3 V A
VIL –0.3 0.2 × DVDD A
Input leakage current 100 nA A
Input pin capacitance 5 pF C
DIGITAL OUTPUTS (CMOS)
VOH Digital output logic levels IO = 500-μA source 0.8 × DVDD DVDD V A
VOL IO = 500-μA sink 0 0.2 × DVDD A
Floating state leakage current Only for SDO 1 µA A
Internal pin capacitance 5 pF C
TEMPERATURE RANGE
TA Operating free-air temperature –40 125 °C B
(1) Test Levels: (A) Tested at final test. Over temperature limits are set by characterization and simulation. (B) Limits set by characterization and simulation, across temperature range. (C) Typical value only for information, provided by design simulation.
(2) Ideal input span, does not include gain or offset error.
(3) LSB = least significant bit.
(4) FSR = full-scale range.
(5) Calculated on the first nine harmonics of the input frequency.
(6) This parameter is the endpoint INL, not best-fit INL.
(7) Isolation crosstalk is measured by applying a full-scale sinusoidal signal up to 10 kHz to a channel, not selected in the multiplexing sequence, and measuring its effect on the output of any selected channel.
(8) Memory crosstalk is measured by applying a full-scale sinusoidal signal up to 10 kHz to a channel that is selected in the multiplexing sequence, and measuring its effect on the output of the next selected channel for all combinations of input channels.
(9) Does not include the variation in voltage resulting from solder-shift and long-term effects.
(10) Does not include the shift in offset over time.

7.6 Timing Requirements: Serial Interface

Minimum and maximum specifications are at TA = –40°C to 125°C. Typical specifications are at TA = 25°C.
AVDD = 5 V, DVDD = 3 V, VREF = 4.096 V (internal), SDO load = 20 pF, and fSAMPLE = 500 kSPS, unless otherwise noted.
MIN TYP MAX UNIT
TIMING SPECIFICATIONS
fS Sampling frequency (fCLK = max) 500 kSPS
tS ADC cycle time period (fCLK = max) 2 µs
fSCLK Serial clock frequency (fS = max) 17 MHz
tSCLK Serial clock time period (fS = max) 59 ns
tCONV Conversion time 850 ns
tDZ_CSDO Delay time: CS falling to data enable 10 ns
tD_CKCS Delay time: last SCLK falling to CS rising 10 ns
tDZ_CSDO Delay time: CS rising to SDO going to 3-state 10 ns
TIMING REQUIREMENTS
tACQ Acquisition time 1150 ns
tPH_CK Clock high time 0.4 0.6 tSCLK
tPL_CK Clock low time 0.4 0.6 tSCLK
tPH_CS CS high time 30 ns
tSU_CSCK Setup time: CS falling to SCLK falling 30 ns
tHT_CKDO Hold time: SCLK falling to (previous) data valid on SDO 10 ns
tSU_DOCK Setup time: SDO data valid to SCLK falling 25 ns
tSU_DICK Setup time: SDI data valid to SCLK falling 5 ns
tHT_CKDI Hold time: SCLK falling to (previous) data valid on SDI 5 ns
tSU_DSYCK Setup time: DAISY data valid to SCLK falling 5 ns
tHT_CKDSY Hold time: SCLK falling to (previous) data valid on DAISY 5 ns

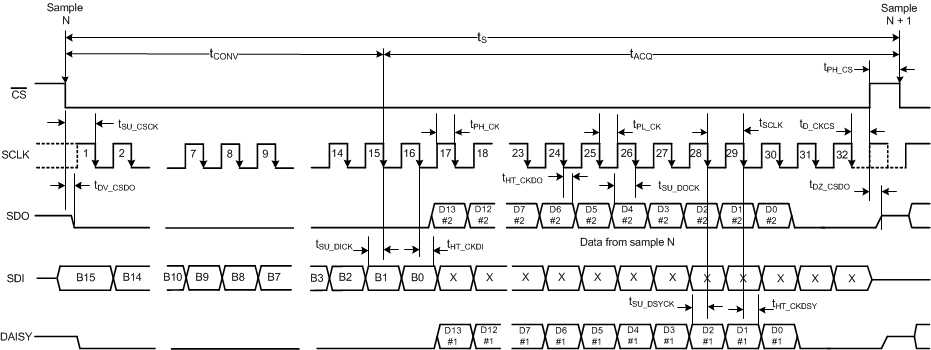

ADS8674 ADS8678 tim_interface_sbas627.gifFigure 1. Serial Interface Timing Diagram

7.7 Typical Characteristics

At TA = 25°C, AVDD = 5 V, DVDD = 3 V, internal reference VREF = 4.096 V, and fSAMPLE = 500 kSPS, unless otherwise noted.

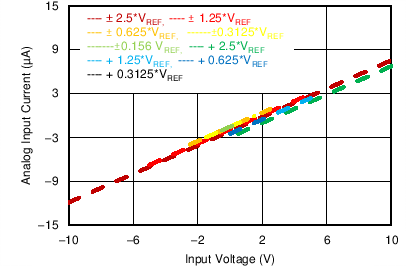

ADS8674 ADS8678 C001_SBAS627.png
Figure 2. Input I-V Characteristic

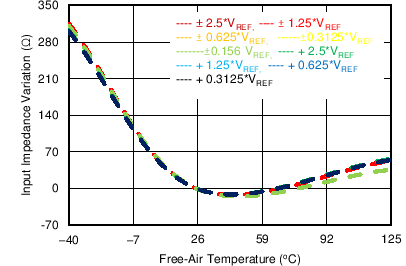

ADS8674 ADS8678 C005_SBAS627.png
Figure 4. Input Impedance Variation vs Temperature

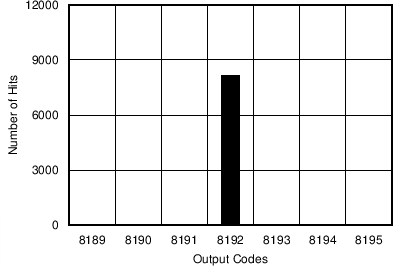

ADS8674 ADS8678 C007_SBAS627.png
Mean = 8192.5, sigma = 0.31, input = 0 V,
range = ±2.5 × VREF
Figure 6. DC Histogram for Mid-Scale Inputs (±2.5 × VREF)

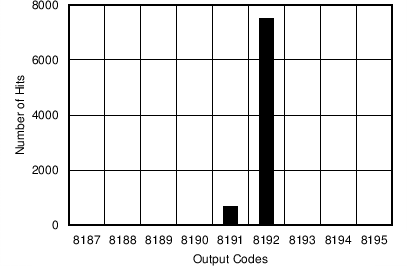

ADS8674 ADS8678 C009_SBAS627.png
Mean = 8192.5, sigma = 0.34, input = 0 V,
range = ±0.625 × VREF
Figure 8. DC Histogram for Mid-Scale Inputs (±0.625 × VREF)

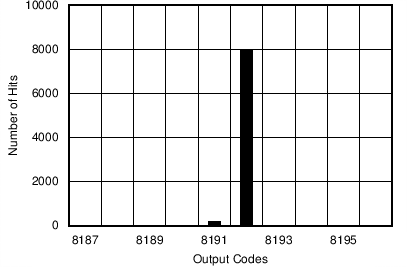

ADS8674 ADS8678 C011_SBAS627.png
Mean = 8192.5, sigma = 0.34, input = 0.625 × VREF,
range = 1.25 × VREF
Figure 10. DC Histogram for Mid-Scale Inputs
(1.25 × VREF)
ADS8674 ADS8678 C013_SBAS627.png
Mean = 8192.5, sigma = 0.72, input = 0 V,
range = ±0.15625 × VREF
Figure 12. DC Histogram for Mid-Scale Inputs
(±0.15625 x VREF)

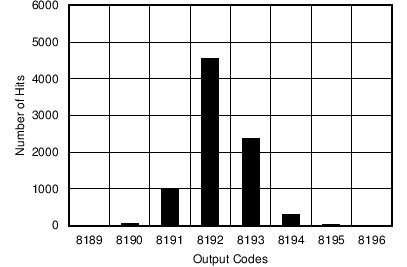

ADS8674 ADS8678 C015_SBAS627.png
Mean = 8192.5, sigma = 0.750.72, input = 0.15625 × VREF,
range = 0.3125 × VREF
Figure 14. DC Histogram for Mid-Scale Inputs
(0.3125 x VREF)
ADS8674 ADS8678 C017_SBAS627.png
All input ranges
Figure 16. DNL vs Temperature
ADS8674 ADS8678 C019_SBAS627.png
Range = ±1.25 × VREF
Figure 18. Typical INL for All Codes

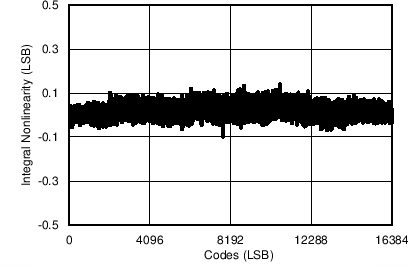

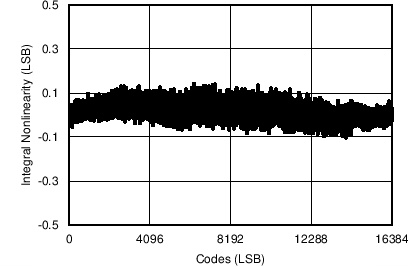

ADS8674 ADS8678 C021_SBAS627.png
Range = 2.5 × VREF
Figure 20. Typical INL for All Codes

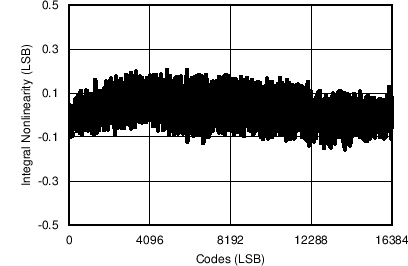

ADS8674 ADS8678 C023_SBAS627.png
Range = ±0.3125 × VREF
Figure 22. Typical INL for All Codes

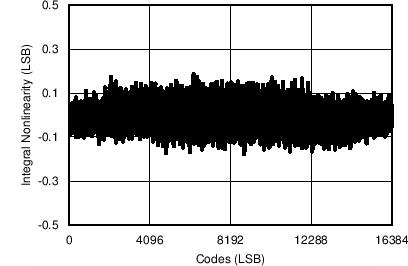

ADS8674 ADS8678 C025_SBAS627.png
Range = 0.625 × VREF
Figure 24. Typical INL for All Codes
ADS8674 ADS8678 C027_SBAS627.png
Range = ±2.5 × VREF
Figure 26. INL vs Temperature (±2.5 × VREF)
ADS8674 ADS8678 C029_SBAS627.png
Range = ±0.625 × VREF
Figure 28. INL vs Temperature (±0.625 × VREF)

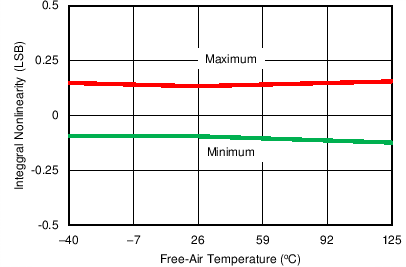

ADS8674 ADS8678 C031_SBAS627.png
Range = 1.25 × VREF
Figure 30. INL vs Temperature (1.25 × VREF)
ADS8674 ADS8678 C033_SBAS627.png
Range = ±0.15625 × VREF
Figure 32. INL vs Temperature (±0.15625 × VREF)
ADS8674 ADS8678 C035_SBAS627.png
Range = 0.3125 × VREF

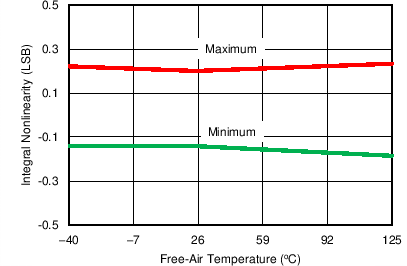

Figure 34. INL vs Temperature (0.3125 × VREF)

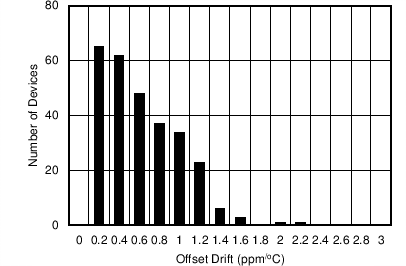

ADS8674 ADS8678 C037_SBAS627.png
Range = ±2.5 × VREF
Figure 36. Typical Histogram for Offset Drift
ADS8674 ADS8678 C039_SBAS627.png
Figure 38. Gain Error vs Temperature Across Input Ranges
ADS8674 ADS8678 C041_SBAS627.png
Range = ±2.5 × VREF
Figure 40. Gain Error vs Temperature Across Channels
ADS8674 ADS8678 C043_SBAS627.png
Number of points = 16k, fIN = 1 kHz, SNR = 85.37 dB,
SINAD = 85.35, THD = –104.68 dB, SFDR = 105 dB
Figure 42. Typical FFT Plot (±2.5 × VREF)

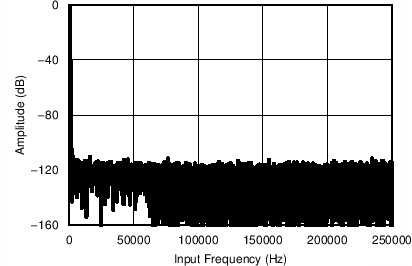

ADS8674 ADS8678 C045_SBAS627.png
Number of points = 16k, fIN = 1 kHz, SNR = 84.69 dB,
SINAD = 84.67 dB, THD = –106.41 dB, SFDR = 105 dB
Figure 44. Typical FFT Plot (±0.625 × VREF)
ADS8674 ADS8678 C047_SBAS627.png
Number of points = 16k, fIN = 1 kHz, SNR = 84.62 dB,
SINAD = 84.65 dB, THD = –103.74 dB, SFDR = 105 dB
Figure 46. Typical FFT Plot (1.25 × VREF)
ADS8674 ADS8678 C049_SBAS627.png
Number of points = 16k, fIN = 1 kHz, SNR = 78.09 dB,
SINAD = 78.06 dB, THD = –99.41 dB, SFDR = 105 dB
Figure 48. Typical FFT Plot (±0.15625 × VREF)
ADS8674 ADS8678 C051_SBAS627.png
Number of points = 16k, fIN = 1 kHz, SNR = 78.09 dB,
SINAD = 78.05 dB, THD = –96.74 dB, SFDR = 105 dB
Figure 50. Typical FFT Plot (0.3125 × VREF)

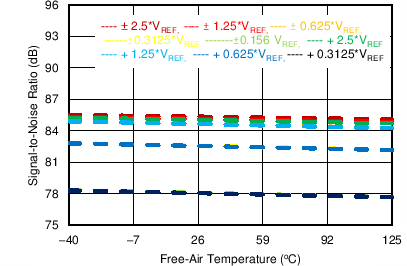

ADS8674 ADS8678 C053_SBAS627.png
fIN = 1 kHz
Figure 52. SNR vs Temperature
ADS8674 ADS8678 C055_SBAS627.png
fIN = 1 kHz
Figure 54. SINAD vs Temperature
ADS8674 ADS8678 C057_SBAS627.png
fIN = 1 kHz
Figure 56. THD vs Temperature
ADS8674 ADS8678 C059_SBAS680.png
Figure 58. Isolation Crosstalk vs Frequency
ADS8674 ADS8678 C061_SBAS627.png
Input = 2 × maximum input voltage
Figure 60. Isolation Crosstalk vs Frequency for
Overrange Inputs

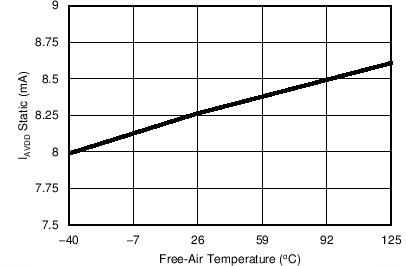

ADS8674 ADS8678 C075_SBAS627.png
Figure 62. AVDD Current vs Temperature for the ADS8678
(During Sampling)
ADS8674 ADS8678 C079_SBAS627.png
Figure 64. AVDD Current vs Temperature for the ADS8674
(During Sampling)

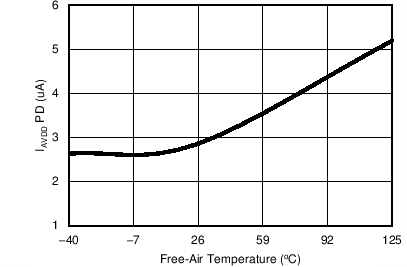

ADS8674 ADS8678 C077_SBAS680.png
Figure 66. AVDD Current vs Temperature
(Power Down)
ADS8674 ADS8678 C002_SBAS627.png
Input range = ±2.5 × VREF
Figure 3. Input Current vs Temperature

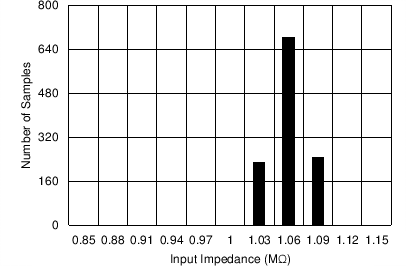

ADS8674 ADS8678 C006_SBAS627.png
Number of samples = 1160
Figure 5. Typical Distribution of Input Impedance
ADS8674 ADS8678 C008_SBAS627.png
Mean = 8192.5, sigma = 0.32, input = 0 V,
range = ±1.25 × VREF
Figure 7. DC Histogram for Mid-Scale Inputs (±1.25 × VREF)

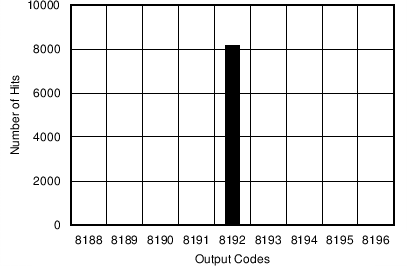

ADS8674 ADS8678 C010_SBAS627.png
Mean = 8192.5, sigma = 0.32, input = 1.25 × VREF,
range = 2.5 × VREF
Figure 9. DC Histogram for Mid-Scale Inputs (2.5 × VREF)
ADS8674 ADS8678 C012_SBAS627.png
Mean = 8192.5, sigma = 0.43, input = 0 V,
range = ±0.3125 × VREF
Figure 11. DC Histogram for Mid-Scale Inputs
(±0.3125 x VREF)

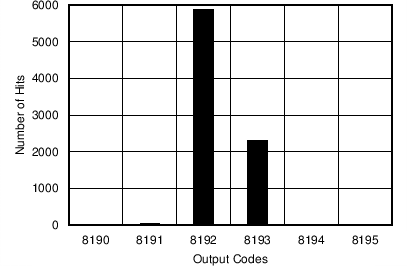

ADS8674 ADS8678 C014_SBAS627.png
Mean = 8192.5, sigma = 0.72, input = 0.3125 × VREF,
range = 0.625 × VREF
Figure 13. DC Histogram for Mid-Scale Inputs
(0.625 x VREF)
ADS8674 ADS8678 C016_SBAS627.png
All input ranges
Figure 15. Typical DNL for All Codes
ADS8674 ADS8678 C018_SBAS627.png
Range = ±2.5 × VREF
Figure 17. Typical INL for All Codes

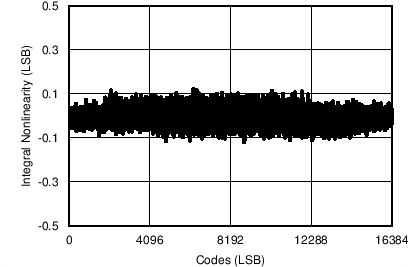

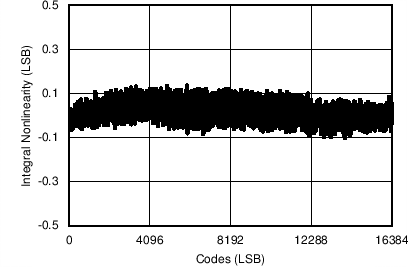

ADS8674 ADS8678 C020_SBAS627.png
Range = ±0.625 × VREF
Figure 19. Typical INL for All Codes
ADS8674 ADS8678 C022_SBAS627.png
Range = 1.25 × VREF
Figure 21. Typical INL for All Codes
ADS8674 ADS8678 C024_SBAS627.png
Range = ±0.15625 × VREF
Figure 23. Typical INL for All Codes
ADS8674 ADS8678 C026_SBAS627.png
Range = 0.3125 × VREF
Figure 25. Typical INL for All Codes
ADS8674 ADS8678 C028_SBAS627.png
Range = ±1.25 × VREF
Figure 27. INL vs Temperature (±1.25 × VREF)

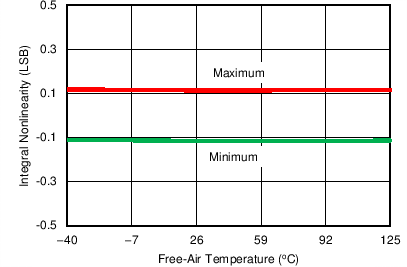

ADS8674 ADS8678 C030_SBAS492.png
Range = 2.5 × VREF
Figure 29. INL vs Temperature (2.5 × VREF)

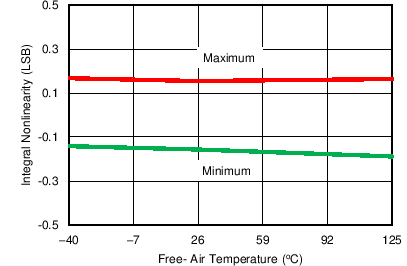

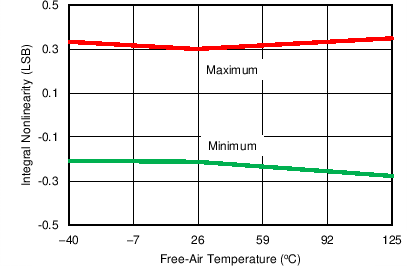

ADS8674 ADS8678 C032_SBAS627.png
Range = ±0.3125 × VREF
Figure 31. INL vs Temperature (±0.3125 × VREF)
ADS8674 ADS8678 C034_SBAS627.png

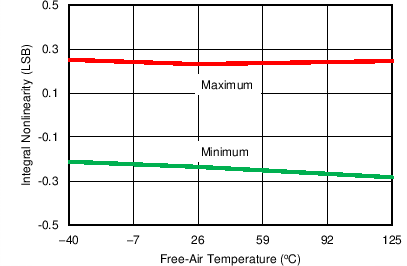

Range = 0.625 × VREF
Figure 33. INL vs Temperature (0.625 × VREF)
ADS8674 ADS8678 C036_SBAS627.png
Figure 35. Offset Error vs
Temperature Across Input Ranges
ADS8674 ADS8678 C038_SBAS627.png
Range = ±2.5 × VREF
Figure 37. Offset Error vs Temperature Across Channels
ADS8674 ADS8678 C040_SBAS627.png
Range = ±2.5 × VREF

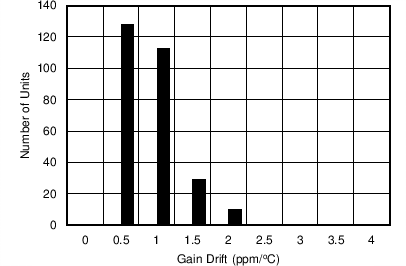

Figure 39. Typical Histogram for Gain Error Drift
ADS8674 ADS8678 C042_SBAS627.png

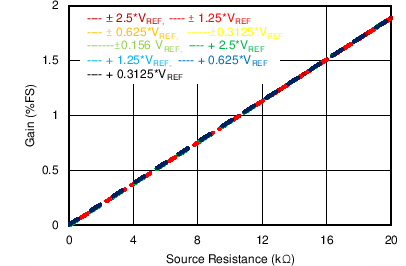

Figure 41. Gain Error vs External Resistance (REXT)

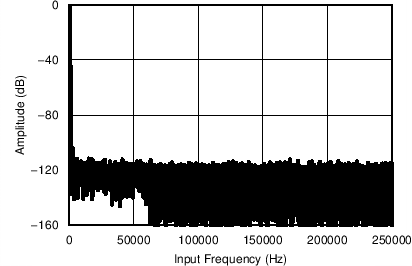

ADS8674 ADS8678 C044_SBAS627.png
Number of points = 16k, fIN = 1 kHz, SNR = 85.11 dB,
SINAD = 85.15 dB, THD = –105.28 dB, SFDR = 105 dB
Figure 43. Typical FFT Plot (±1.25 × VREF)
ADS8674 ADS8678 C046_SBAS627.png
Number of points = 16k, fIN = 1 kHz, SNR = 85.04 dB,
SINAD = 85.04 dB, THD = –106.31 dB, SFDR = 105 dB
Figure 45. Typical FFT Plot (2.5 × VREF)

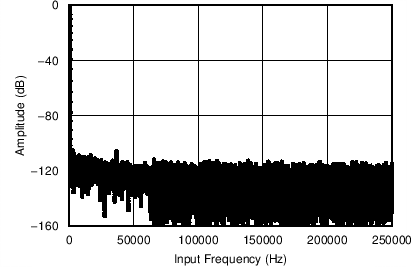

ADS8674 ADS8678 C048_SBAS627.png
Number of points = 16k, fIN = 1 kHz, SNR = 82.59 dB,
SINAD = 82.56 dB, THD = –102.41 dB, SFDR = 105 dB
Figure 47. Typical FFT Plot (±0.3125 × VREF)
ADS8674 ADS8678 C050_SBAS627.png
Number of points = 16k, fIN = 1 kHz, SNR = 82.59 dB,
SINAD = 82.55 dB, THD = –99.74 dB, SFDR = 105 dB
Figure 49. Typical FFT Plot (0.625 × VREF)
ADS8674 ADS8678 C052_SBAS627.png
Figure 51. SNR vs Input Frequency
ADS8674 ADS8678 C054_SBAS627.png
Figure 53. SINAD vs Input Frequency

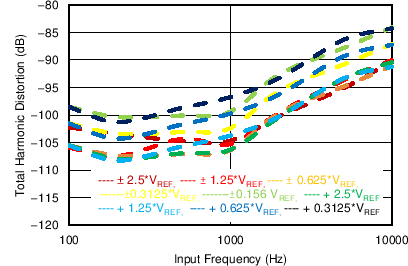

ADS8674 ADS8678 C056_SBAS627.png
Figure 55. THD vs Input Frequency

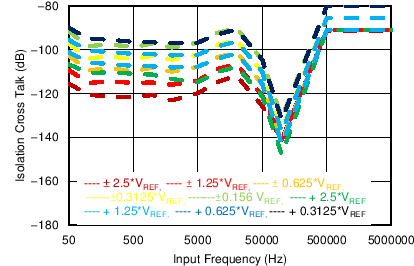

ADS8674 ADS8678 C058_SBAS627.png
Figure 57. Memory Crosstalk vs Frequency
ADS8674 ADS8678 C060_SBAS627.png
Input = 2 × maximum input voltage
Figure 59. Memory Crosstalk vs Frequency for
Overrange Inputs
ADS8674 ADS8678 C074_SBAS627.png
Figure 61. AVDD Current vs Temperature for the ADS8678
(fS = 500 kSPS)
ADS8674 ADS8678 C078_SBAS627.png
Figure 63. AVDD Current vs Temperature for the ADS8674
(fS = 500 kSPS)
ADS8674 ADS8678 C076_SBAS627.png
Figure 65. AVDD Current vs Temperature
(STANDBY)
