8.2.3 Application Curves

fSAMPLE = 1 MSPS, VIN = ±12 V, fIN = 1 kHz, VCM = 50 VDC, SINAD = 84.8 dB, THD = –102 dB
Figure 8-3 FFT Plot With a DC Common-Mode at 1 MSPS

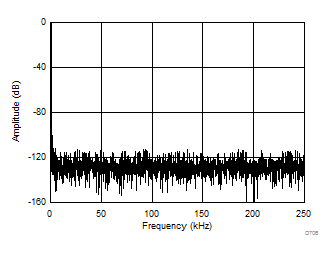

fSAMPLE = 500 kSPS, VIN = ±12 V, fIN = 1 kHz, VCM = 50 VDC, SINAD = 85.2 dB, THD = –102 dB
Figure 8-5 FFT Plot With a DC Common-Mode at 500 kSPS

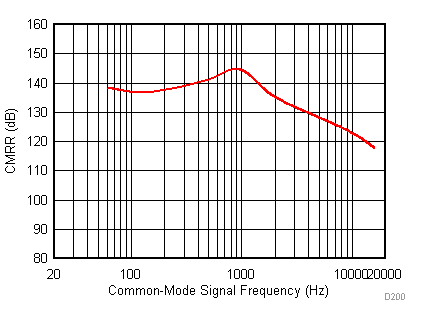

GUID-64C6D6D6-96CB-4BA1-AF26-26BD38839077-low.gifFigure 8-7 Common-Mode Rejection Ratio vs Frequency

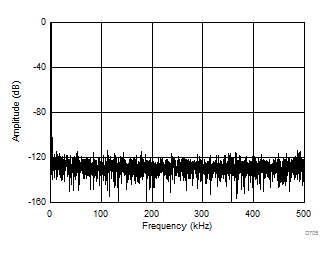

fSAMPLE = 1 Msps, VIN = ±12 V, fIN = 1 kHz, VCM = 155 VPP, SINAD = 84.5 dB, THD = –102 dB
Figure 8-4 FFT Plot With an AC Common-Mode at 1 MSPS
fSAMPLE = 500 kSPS, VIN = ±12 V, fIN = 1 kHz, VCM = 155 VPP, SINAD = 85 dB, THD = –102 dB
Figure 8-6 FFT Plot With an AC Common-Mode at 500 kSPS
