Specifications

Absolute Maximum Ratings(1)

MIN MAX UNIT
AVDD to GND –0.3 3.9 V
DVDD to GND –0.3 3.9 V
AINP to GND –0.3 AVDD + 0.3 V
AINM to GND –0.3 0.3 V
Digital input voltage to GND –0.3 DVDD + 0.3 V
Storage temperature, Tstg –60 150 °C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per AEC Q100-002(1) ±2000 V
Charged-device model (CDM), per AEC Q100-011 ±1000
AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
AVDD Analog supply voltage range 2.35 3.6 V
DVDD Digital supply voltage range 1.65 3.6 V
TA Operating free-air temperature –40 125 °C

Thermal Information

THERMAL METRIC(1) ADS7039-Q1 UNIT
DCU (VSSOP)
8 PINS
RθJA Junction-to-ambient thermal resistance 181.8 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 50.8 °C/W
RθJB Junction-to-board thermal resistance 73.9 °C/W
ψJT Junction-to-top characterization parameter 1.0 °C/W
ψJB Junction-to-board characterization parameter 73.9 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance N/A °C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

Electrical Characteristics

at TA = –40°C to 125°C, AVDD = 3 V, DVDD = 1.65 V to 3.6 V, fSAMPLE = 2 MSPS, and VAINM = 0 V (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
ANALOG INPUT
Full-scale input voltage span(1) 0 AVDD V
Absolute input voltage range AINP to GND –0.1 AVDD + 0.1 V
AINM to GND –0.1 0.1
CS Sampling capacitance 15 pF
SYSTEM PERFORMANCE
Resolution 10 Bits
NMC No missing codes 10 Bits
INL Integral nonlinearity AVDD = 3 V –0.8 ±0.4 0.8 LSB(2)
DNL Differential nonlinearity AVDD = 3 V –0.7 ±0.4 0.7 LSB
EO Offset error Uncalibrated ±3 LSB
Calibrated(6) AVDD = 3 V –2 ±0.5 2
dVOS/dT Offset error drift with temperature ±10 ppm/°C
EG Gain error AVDD = 3 V –0.2 ±0.1 0.2 %FS
Gain error drift with temperature No calibration ±10 ppm/°C
SAMPLING DYNAMICS
tACQ Acquisition time 120 ns
Maximum throughput rate 32-MHz SCLK, AVDD = 2.35 V to 3.6 V 2 MHz
DYNAMIC CHARACTERISTICS
SNR Signal-to-noise ratio(4) fIN = 2 kHz, AVDD = 3 V 60 61 dB
THD Total harmonic distortion(4)(3) fIN = 2 kHz, AVDD = 3 V –75 dB
SINAD Signal-to-noise and distortion(4) fIN = 2 kHz, AVDD = 3 V 60 61 dB
SFDR Spurious-free dynamic range(4) fIN = 2 kHz, AVDD = 3 V 80 dB
BW(fp) Full-power bandwidth At –3 dB, AVDD = 3 V 25 MHz
DIGITAL INPUT/OUTPUT (CMOS Logic Family)
VIH High-level input voltage(5) 0.65 × DVDD DVDD + 0.3 V
VIL Low-level input voltage(5) –0.3 0.35 × DVDD V
VOH High-level output voltage(5) At Isource = 500 µA 0.8 × DVDD DVDD V
At Isource = 2 mA DVDD – 0.45 DVDD
VOL Low-level output voltage(5) At Isink = 500 µA 0 0.2 × DVDD V
At Isink = 2 mA 0 0.45
POWER-SUPPLY REQUIREMENTS
AVDD Analog supply voltage 2.35 3 3.6 V
DVDD Digital I/O supply voltage 1.65 3 3.6 V
IAVDD Analog supply current At 2 MSPS with AVDD = 3 V 365 400 µA
IDVDD Digital supply current AVDD = 3 V, no load, no transitions 10 µA
PD Power dissipation At 2 MSPS with AVDD = 3 V 1.095 1.20 mW
Ideal input span; does not include gain or offset error.
LSB means least significant bit.
Calculated on the first nine harmonics of the input frequency.
All specifications expressed in decibels (dB) refer to the full-scale input (FSR) and are tested with an input signal 0.5 dB below full-scale, unless otherwise specified.
Digital voltage levels comply with the JESD8-7A standard for DVDD from 1.65 V to 1.95 V; see the Digital Voltage Levels section for more details.
See the Offset Calibration section for more details.

Timing Requirements

all specifications are at TA = –40°C to 125°C, AVDD = 2.35 V to 3.6 V, DVDD = 1.65 V to 3.6 V, and CLOAD on SDO = 20 pF (unless otherwise specified)
MIN TYP MAX UNIT
tACQ Acquisition time 120 ns
fSCLK SCLK frequency 0.016 28 MHz
tSCLK SCLK period 35.7 ns
tPH_CK SCLK high time 0.45 0.55 tSCLK
tPL_CK SCLK low time 0.45 0.55 tSCLK
tPH_CS CS high time 30 ns
tSU_CSCK Setup time: CS falling to SCLK falling 12 ns
tD_CKCS Delay time: last SCLK falling to CS rising 10 ns

Switching Characteristics

all specifications are at TA = –40°C to 125°C, AVDD = 2.35 V to 3.6 V, DVDD = 1.65 V to 3.6 V, and CLOAD on SDO = 20 pF (unless otherwise specified)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
fTHROUGHPUT Throughput 2 MSPS
tCYCLE Cycle time 0.5 µs
tCONV Conversion time 10.5 × tSCLK + tSU_CSCK ns
tDV_CSDO Delay time: CS falling to data enable 10 ns
tD_CKDO Delay time: SCLK falling to (next) data valid on DOUT AVDD = 2.35 V to 3.6 V 25 ns
tDZ_CSDO Delay time: CS rising to DOUT going to tri-state 5 ns

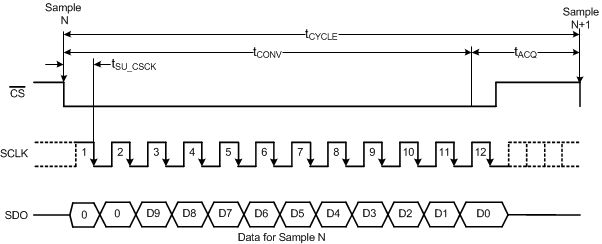

ADS7039-Q1 ai_timing_sbas788.gif Figure 1. Timing Diagram

Typical Characteristics

at TA = 25°C, AVDD = 3 V, DVDD = 1.8 V, and fSAMPLE = 2 MSPS (unless otherwise noted)
ADS7039-Q1 D001_SBAS788.gif
SNR = 61.39 dB, THD = –80.82 dB, fIN = 2 kHz,
AVDD = 3 V
Figure 2. Typical FFT
ADS7039-Q1 D003_SBAS788.gif
fIN = 2 kHz, AVDD = 3 V
Figure 4. SNR and SINAD vs Temperature

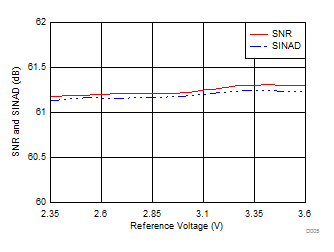

ADS7039-Q1 D005_SBAS788.gif
fIN = 2 kHz
Figure 6. SNR and SINAD vs Reference Voltage (AVDD)
ADS7039-Q1 D007_SBAS788.gif
fIN = 2 kHz, AVDD = 3 V
Figure 8. SFDR vs Temperature
ADS7039-Q1 D009_SBAS788.gif
Figure 10. SFDR vs Input Frequency
ADS7039-Q1 D011_SBAS788.gif
fIN = 2 kHz, AVDD = 3 V
Figure 12. SFDR vs Reference Voltage (AVDD)
ADS7039-Q1 D016_SBAS788.gif
Figure 14. Gain Error vs Reference Voltage (AVDD)
ADS7039-Q1 D018_SBAS788.gif
AVDD = 2.35 V
Figure 16. Typical INL
ADS7039-Q1 D020_SBAS788.gif
AVDD = 3 V
Figure 18. Typical INL
ADS7039-Q1 D022_SBAS788.gif
Figure 20. DNL vs Reference Voltage (AVDD)

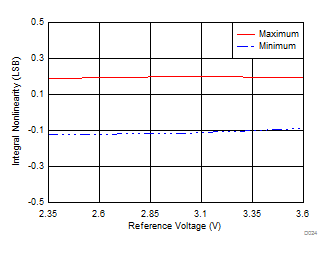

ADS7039-Q1 D024_SBAS788.gif
Figure 22. INL vs Reference Voltage (AVDD)
ADS7039-Q1 D026_SBAS788.gif
AVDD = 3 V
Figure 24. AVDD Supply Current vs Throughput
ADS7039-Q1 D029_SBAS788.gif
AVDD = DVDD = 3.3 V
Figure 26. ENOB vs Sampling Rate

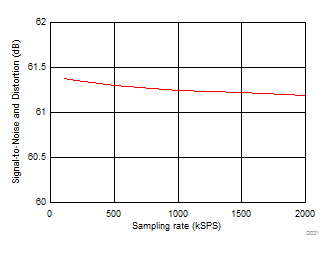

ADS7039-Q1 D031_SBAS788.gif
AVDD = DVDD = 3.3 V
Figure 28. SINAD vs Sampling Rate
ADS7039-Q1 D002_SBAS788.gif
SNR = 61.21 dB, THD = –77.09, fIN = 250 kHz,
AVDD = 3 V
Figure 3. Typical FFT

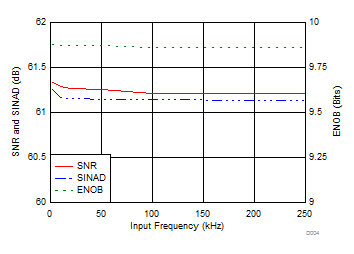

ADS7039-Q1 D004_SBAS788.gif
AVDD = 3 V
Figure 5. SNR and SINAD vs Input Frequency
ADS7039-Q1 D006_SBAS788.gif
fIN = 2 kHz, AVDD = 3 V
Figure 7. THD vs Temperature
ADS7039-Q1 D008_SBAS788.gif
AVDD = 3 V
Figure 9. THD vs Input Frequency
ADS7039-Q1 D010_SBAS788.gif
fIN = 2 kHz, AVDD = 3 V
Figure 11. THD vs Reference Voltage (AVDD)
ADS7039-Q1 D012_SBAS788.gif
Mean code = 512, sigma = 0.06, AVDD = 3 V
Figure 13. DC Input Histogram
ADS7039-Q1 D017_SBAS788.gif
AVDD = 2.35 V
Figure 15. Typical DNL
ADS7039-Q1 D019_SBAS788.gif
AVDD = 3 V
Figure 17. Typical DNL

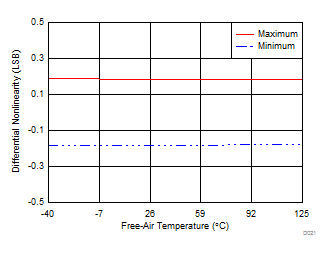

ADS7039-Q1 D021_SBAS788.gif
AVDD = 3 V
Figure 19. DNL vs Temperature
ADS7039-Q1 D023_SBAS788.gif
AVDD = 3 V
Figure 21. INL vs Temperature
ADS7039-Q1 D025_SBAS788.gif
AVDD = 3 V
Figure 23. AVDD Supply Current vs Temperature
ADS7039-Q1 D027_SBAS788.gif
fSample = 2 MSPS
Figure 25. AVDD Supply Current vs Supply Voltage

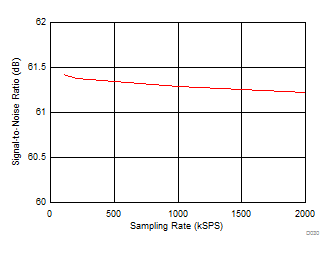

ADS7039-Q1 D030_SBAS788.gif
AVDD = DVDD = 3.3 V
Figure 27. SNR vs Sampling Rate

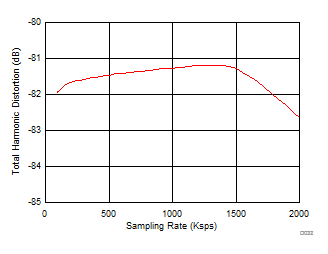

ADS7039-Q1 D032_SBAS788.gif
AVDD = DVDD = 3.3 V
Figure 29. THD vs Sampling Rate
