6 Pin Configuration and Functions

RMP Package
72-Pin VQFNP
Top View

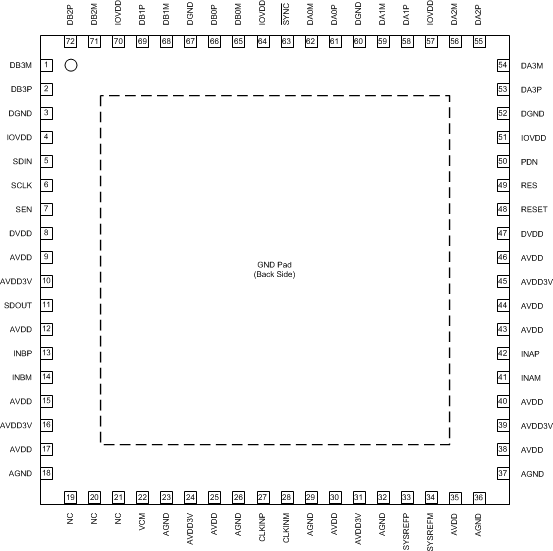

ADS54J42 po_sbas706.gif

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
CLOCK, SYSREF
CLKINM 28 I Negative differential clock input for the ADC
CLKINP 27 I Positive differential clock input for the ADC
SYSREFM 34 I Negative external SYSREF input
SYSREFP 33 I Positive external SYSREF input
CONTROL, SERIAL
PDN 50 I/O Power-down. Can be configured via an SPI register setting.
Can be configured to fast overrange output for channel A via the SPI.
RESET 48 I Hardware reset; active high. This pin has an internal 20-kΩ pulldown resistor.
SCLK 6 I Serial interface clock input
SDIN 5 I Serial interface data input
SDOUT 11 O Serial interface data output.
Can be configured to fast overrange output for channel B via the SPI.
SEN 7 I Serial interface enable
DATA INTERFACE
DA0M 62 O JESD204B serial data negative outputs for channel A
DA1M 59
DA2M 56
DA3M 54
DA0P 61 O JESD204B serial data positive outputs for channel A
DA1P 58
DA2P 55
DA3P 53
DB0M 65 O JESD204B serial data negative outputs for channel B
DB1M 68
DB2M 71
DB3M 1
DB0P 66 O JESD204B serial data positive outputs for channel B
DB1P 69
DB2P 72
DB3P 2
SYNC 63 I Synchronization input for the JESD204B port
INPUT, COMMON MODE
INAM 41 I Differential analog negative input for channel A
INAP 42 I Differential analog positive input for channel A
INBM 14 I Differential analog negative input for channel B
INBP 13 I Differential analog positive input for channel B
VCM 22 O Common-mode voltage, 2.1 V.
Note that analog inputs are internally biased to this pin through 600 Ω (effective), no external connection from the VCM pin to the INxP or INxM pin is required.
POWER SUPPLY
AGND 18, 23, 26, 29, 32, 36, 37 I Analog ground
AVDD 9, 12, 15, 17, 25, 30, 35, 38, 40, 43, 44, 46 I Analog 1.9-V power supply
AVDD3V 10, 16, 24, 31, 39, 45 I Analog 3.0-V power supply for the analog buffer
DGND 3, 52, 60, 67 I Digital ground
DVDD 8, 47 I Digital 1.9-V power supply
IOVDD 4, 51, 57, 64, 70 I Digital 1.15-V power supply for the JESD204B transmitter
NC, RES
NC 19-21 Unused pins, do not connect
RES 49 I Reserved pin. Connect to DGND.
