8.3.4.6.1 Parallel CMOS

In parallel CMOS mode, the ADC3544 device supports complex decimation output with DDR CMOS interface and real output with SDR and DDR CMOS interface as shown in Figure 8-30 (complex decimation) and Figure 8-31 (real decimation). In this illustration the output format is selected to 16-bit.

GUID-C5C9BA4C-6ED2-470D-A247-F24697AC65CF-low.gifFigure 8-30 Output Data Format in Complex Decimation

Table 8-3 illustrates the output interface data rate along with the corresponding DCLK frequency based on complex decimation setting (N).

Furthermore the table shows an actual lane rate example with complex decimation by 4.

Table 8-3 Parallel CMOS Data Rate Examples with Complex Decimation
REAL/COMPLEX DECIMATIONDECIMATION SETTINGADC SAMPLING RATEDCLKDOUT (MHz)
ComplexNFSFS x 2 / NFS x 4 / N
4125 MHz62.5 MHz125 MHz

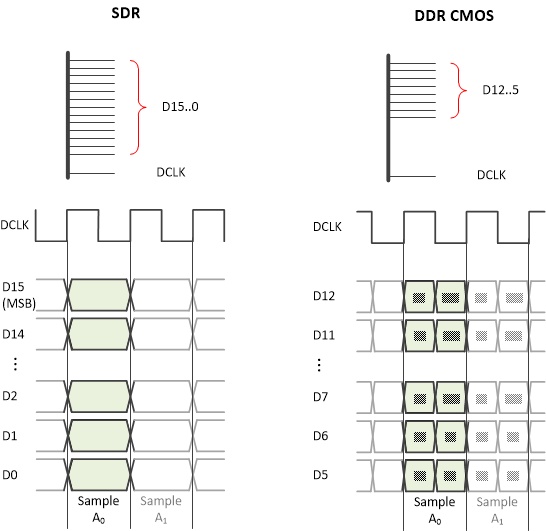

GUID-88900F32-910C-4537-9D27-F4E82FBE6999-low.gifFigure 8-31 Output Data Format in Real Decimation

Table 8-4 illustrates the output interface data rate along with the corresponding DCLK frequency based on real decimation setting (M).

Furthermore the table shows an actual lane rate example with complex decimation by 4.

Table 8-4 Parallel CMOS Data Rate Examples with Decimation
REAL/COMPLEX DECIMATIONDECIMATION SETTINGADC SAMPLING RATESDR/DDR CMOSDCLKDOUT
RealMFSSDRFS / MFS / M
DDRFS x 2 / M
4125 MHzSDR31.25 MHz31.25 MHz
DDR62.5 MHz
