6 Pin Configuration and Functions

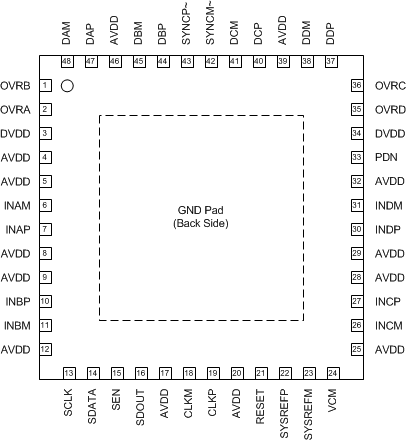

RGZ Package
VQFN-48
(Top View)

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
AVDD 4, 5, 8, 9, 12, 17, 20, 25, 28, 29, 32, 39, 46 I Analog 1.8-V power supply
CLKM 18 I Negative differential clock input for the ADC
CLKP 19 I Positive differential clock input for the ADC
DAM 48 O Negative serial JESD204B output for channel A
DAP 47 O Positive serial JESD204B output for channel A
DBM 45 O Negative serial JESD204B output for channel B
DBP 44 O Positive serial JESD204B output for channel B
DCM 41 O Negative serial JESD204B output for channel C
DCP 40 O Positive serial JESD204B output for channel C
DDM 38 O Negative serial JESD204B output for channel D
DDP 37 O Positive serial JESD204B output for channel D
DVDD 3, 34 I Digital 1.8-V power supply
GND PowerPAD™ I Ground, 0 V
INAM 6 I Negative differential analog input for channel A
INAP 7 I Positive differential analog input for channel A
INBM 11 I Negative differential analog input for channel B
INBP 10 I Positive differential analog input for channel B
INCM 26 I Negative differential analog input for channel C
INCP 27 I Positive differential analog input for channel C
INDM 31 I Negative differential analog input for channel D
INDP 30 I Positive differential analog input for channel D
OVRA 2 O Overrange indicator for channel A
OVRB 1 O Overrange indicator for channel B
OVRC 36 O Overrange indicator for channel C
OVRD 35 O Overrange indicator for channel D
PDN 33 I Power-down control. This pin has an internal 150-kΩ pull-down resistor.
RESET 21 I Hardware reset; active high. This pin has an internal 150-kΩ, pull-down resistor.
SCLK 13 I Serial interface clock input. This pin has an internal 150-kΩ pull-down resistor.
SDATA 14 I Serial interface data input. This pin has an internal 150-kΩ pull-down resistor.
SDOUT 16 O Serial interface data output
SEN 15 I Serial interface enable. Active low.
This pin has an internal 150-kΩ pull-up resistor to AVDD.
SYNCM~ 42 I Negative JESD204B synch input
SYNCP~ 43 I Positive JESD204B synch input
SYSREFM 23 I Negative external SYSREF input
SYSREFP 22 I Positive external SYSREF input
VCM 24 O Common-mode voltage output for the analog inputs
