8 Parameter Measurement Information

8.1 Timing Diagrams

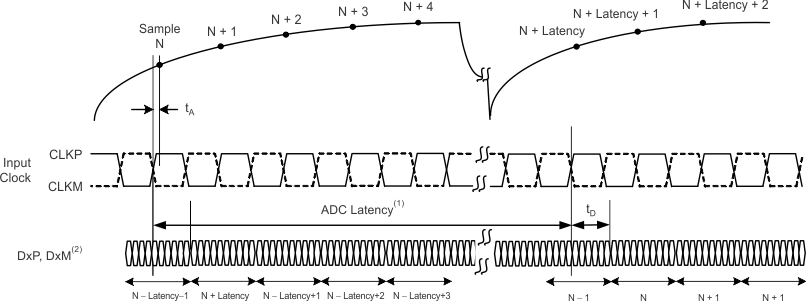

ADC34J22 ADC34J23 ADC34J24 ADC34J25 tim_adc_latency_bas663.gif
1. Overall latency = ADC latency + tD.
2. x = A for channel A and B for channel B.
Figure 143. ADC Latency

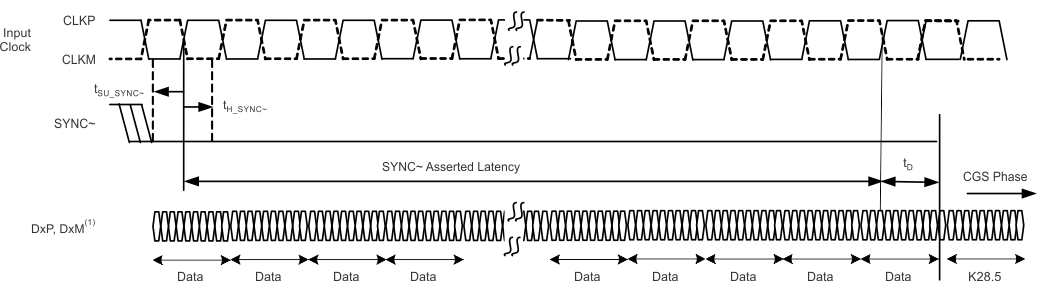

ADC34J22 ADC34J23 ADC34J24 ADC34J25 tim_sync_cgs_bas669.gif
1. x = A for channel A, B for channel B, C for channel C, and D for channel D.
Figure 144. SYNC~ Latency in CGS Phase (Two-Lane Mode)
ADC34J22 ADC34J23 ADC34J24 ADC34J25 tim_sync_ilas_bas669.gif
1. x = A for channel A, B for channel B, C for channel C, and D for channel D.
Figure 145. SYNC~ Latency in ILAS Phase (Two-Lane Mode)

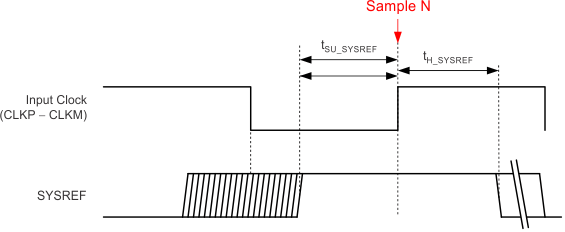

ADC34J22 ADC34J23 ADC34J24 ADC34J25 tim_sysref_subclass1_bas669.gifFigure 146. SYSREF Timing (Subclass 1)
ADC34J22 ADC34J23 ADC34J24 ADC34J25 tim_sync_subclass2_bas669.gifFigure 147. SYNC~ Timing (Subclass 2)
