1 特性

  • 异步开关模式稳压器
  • 适用于汽车电子 应用
  • 3.6V 至 48V 运行范围，可耐受高达 60V 的瞬态电压
  • 2A 最大负载电流
  • 50µA 静态电流（典型值）
  • 200kHz 至 2.2MHz 开关频率
  • 0.8V ± 1.5% 电压基准
  • 耐高压的使能输入
  • 启用周期上的软启动
  • 内部电源开关上的转换率控制
  • 低功耗模式，适用于轻载条件
  • 可通过编程设定的上电复位延迟
  • 误差放大器外部补偿
  • 针对快速负瞬态变化的复位功能滤波时间
  • 可编程过压、欠压输出监测计
  • 热感应和关断
  • 开关电流限制保护
  • 场效应晶体管 (FET) 的短路和过流保护
  • 结温范围：-55°C 至 150°C
  • 20 引脚散热薄型小外形尺寸 (HTSSOP) PowerPAD™的 8 引脚小外形尺寸 (SO) 封装
  • 支持国防、航天和医疗 应用：
    • 可控基线
    • 一个组装/测试场所
    • 一个制造场所
    • 在扩展温度范围（-55°C 至 125°C）内可用
    • 延长的产品生命周期
    • 延长产品的变更通知
    • 产品可追溯性

2 应用范围

  • 汽车远程信息处理和紧急呼叫
  • 汽车信息娱乐系统和仪表板
    • 音响主机
    • 导航
    • 显示屏

3 说明

TPS54262-EP 器件是一款 60V、2A 降压开关模式电源，支持低功耗模式并配有集成N 沟道金属氧化物半导体 (NMOS) 开关 FET 的可编程电压监控器。集成输入电压线路前馈拓扑结构改进了电压模式降压稳压器的线路瞬态稳压性能。稳压器具有逐周期电流限值。此外，该器件还 具备 在轻载条件下以低功耗模式运行的特性，可将电源电流降至 50µA（典型值）。通过将 EN 引脚下拉为低电平，电源关断电流可降至 1µA（典型值）。

开漏复位信号指示标称输出降至通过外部电阻分压器网络设置的复位阈值以下。输出电压启动斜坡由软启动电容控制。内部欠压关断在输入电源电压斜降至 2.6V 时激活。 该器件具有 短路保护电路，能够在过载条件下为器件提供保护，此外还具备热关断保护功能。

器件信息(1)

器件型号 封装 封装尺寸（标称值）
TPS54262-EP HTSSOP (20) 6.50mm x 4.40mm
  1. 要了解所有可用封装，请见数据表末尾的可订购产品附录。

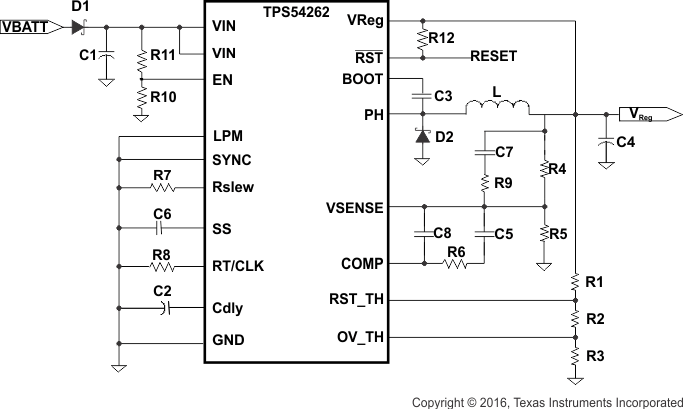

简化电路原理图

TPS54262-EP typ_app_cx_slvsdp3.gif

转换器典型效率

TPS54262-EP page1_graph_slvsdp3.gif
