1 Features

  • 3-State Outputs Drive Bus Lines Directly
  • PNP Inputs Reduce DC Loading on Bus Lines
  • Hysteresis at Bus Inputs Improves Noise Margins
  • Typical Propagation Delay Times Port to Port,
    8 ns

2 Applications

  • Building Automation
  • Electronic Point of Sale
  • Factory Automation and Control
  • Test and Measurement

3 Description

These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.

The SNx4LS245 devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can disable the device so that the buses are effectively isolated.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
SN54LS245J CDIP (20) 24.20 mm × 6.92 mm
SN54LS245W CFP (20) 7.02 mm × 13.72 mm
SN54LS245FK LCCC (20) 8.89 mm × 8.89 mm
SN74LS245DB SSOP (20) 7.20 mm × 5.30 mm
SN74LS245DW SOIC (20) 12.80 mm × 7.50 mm
SN74LS245N PDIP (20) 24.33 mm × 6.35 mm
SN74LS245NS SO (20) 12.60 mm × 5.30 mm
  1. For all available packages, see the orderable addendum at the end of the data sheet.

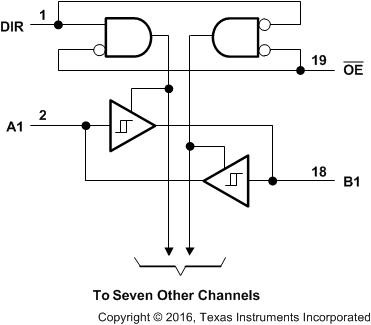

Logic Diagram (Positive Logic)

SN54LS245 SN74LS245 logic_dls146.gif
