Termination

There is an internal pull-up resistor with a serial diode structure to VSUP, so no external pull-up components are required for the LIN responder node applications. An external pull-up resistor (1 kΩ) and a series diode to VSUP must be added when the device is used for commander node applications as per the LIN specification.

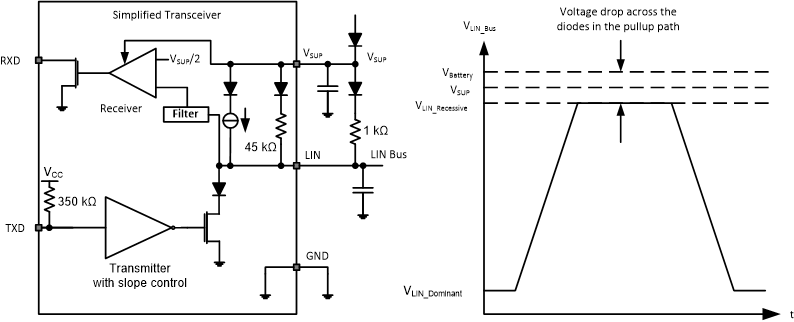

Figure 9-3 shows a commander node configuration and how the voltage levels are defined

GUID-F3679A08-E3B8-40BB-81B9-89372E009501-low.gifFigure 9-3 Commander Node Configuration with Voltage Levels
