Pin Configuration and Functions

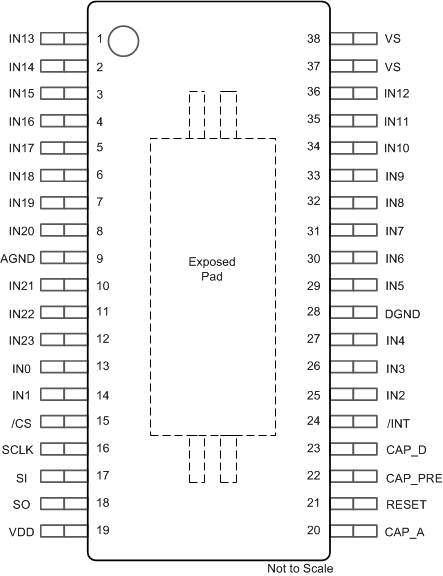

GUID-36D53819-A11D-4DFB-8C6E-2BB2738D38BF-low.gifFigure 5-1 DCP (TSSOP) Package, 38-Pin, Top View
Table 5-1 Pin Functions
PIN TYPE(1) DESCRIPTION
NO. NAME
1 IN13 I/O Ground switch monitoring input with current source
2 IN14 I/O Ground switch monitoring input with current source
3 IN15 I/O Ground switch monitoring input with current source
4 IN16 I/O Ground switch monitoring input with current source
5 IN17 I/O Ground switch monitoring input with current source
6 IN18 I/O Ground switch monitoring input with current source
7 IN19 I/O Ground switch monitoring input with current source
8 IN20 I/O Ground switch monitoring input with current source
9 AGND P Ground for analog circuitry
10 IN21 I/O Ground switch monitoring input with current source
11 IN22 I/O Ground switch monitoring input with current source
12 IN23 I/O Ground switch monitoring input with current source
13 IN0 I/O Ground/VBAT switch monitoring input with configurable current sink or source.
14 IN1 I/O Ground/VBAT switch monitoring input with configurable current sink or source.
15 CS I Active-low input. Chip select from the commander for the SPI Interface.
16 SCLK I Serial clock output from the commander for the SPI Interface
17 SI I Serial data input for the SPI Interface.
18 SO O Serial data output for the SPI Interface
19 VDD P 3.3 V to 5 V logic supply for the SPI communication. The SPI I/Os are not fail-safe protected: VDD needs to be present during any SPI traffic to avoid excessive leakage currents and corrupted SPI I/O logic levels.
20 CAP_A I/O External capacitor connection for the analog LDO. Use capacitance value of 100nF.
21 RESET I Keep RESET low for normal operation and drive RESET high and release it to perform a hardware reset of the device. The RESET pin is connected to ground via a 1MΩ pull-down resistor. If not used, the RESET pin shall be grounded to avoid any accidental device reset due to coupled noise onto this pin.
22 CAP_Pre I/O External capacitor connection for the pre-regulator. Use capacitance value of 1 μF.
23 CAP_D I/O External capacitor connection for the digital LDO. Use capacitance value of 100 nF.
24 INT O Open drain output. Pulled low (internally) upon change of state on the input or occurrence of a special event.
25 IN2 I/O Ground/VBAT switch monitoring input with configurable current sink or source.
26 IN3 I/O Ground/VBAT switch monitoring input with configurable current sink or source.
27 IN4 I/O Ground/VBAT switch monitoring input with configurable current sink or source.
28 DGND P Ground for digital circuitry
29 IN5 I/O Ground/VBAT switch monitoring input with configurable current sink or source.
30 IN6 I/O Ground/VBAT switch monitoring input with configurable current sink or source.
31 IN7 I/O Ground/VBAT switch monitoring input with configurable current sink or source.
32 IN8 I/O Ground/VBAT switch monitoring input with configurable current sink or source.
33 IN9 I/O Ground/VBAT switch monitoring input with configurable current sink or source.
34 IN10 I/O Ground switch monitoring input with current source
35 IN11 I/O Ground switch monitoring input with current source
36 IN12 I/O Ground switch monitoring input with current source
37 VS P Power supply input pin.
38 VS P Power supply input pin.
--- EP P Exposed Pad. The exposed pad is not electrically connected to AGND or DGND. Connect EP to the board ground to achieve rated thermal and ESD performance.
I = input, O = output, I/O = input and output, P = power.
