Typical Characteristics

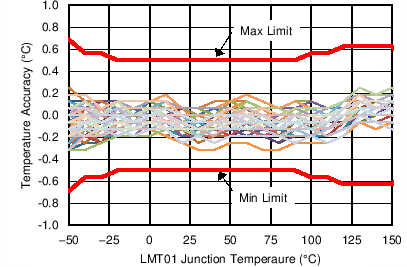

LMT01 C017_2.15V_SNIS189.png Figure 2. Accuracy vs LMT01 Junction Temperature

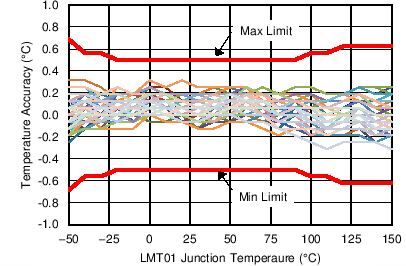

LMT01 C015_2p7V_SNIS189.png Figure 4. Accuracy vs LMT01 Junction Temperature
LMT01 C013_4V_SNIS189.png Figure 6. Accuracy vs LMT01 Junction Temperature

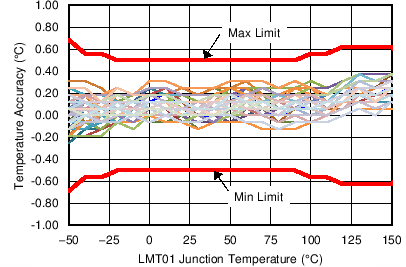

LMT01 C011_5.5V_SNIS189.png Figure 8. Accuracy vs LMT01 Junction Temperature

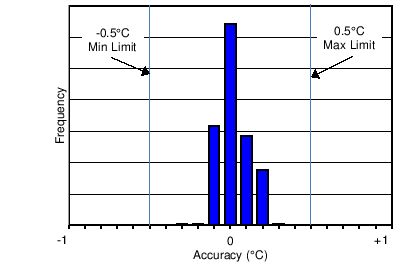

LMT01 C0024_SNIS189.png Figure 10. Accuracy Histogram at 30°C

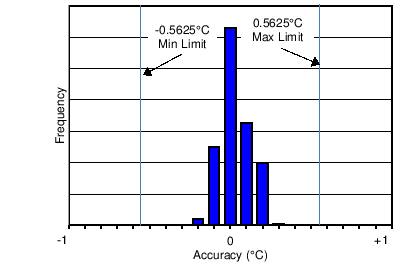

LMT01 C0022_SNIS189.png Figure 12. Accuracy Histogram at -30°C

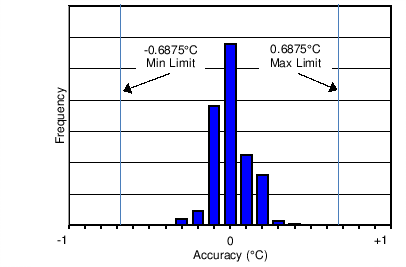

LMT01 C0020_SNIS189.png Figure 14. Accuracy Histogram at -50°C

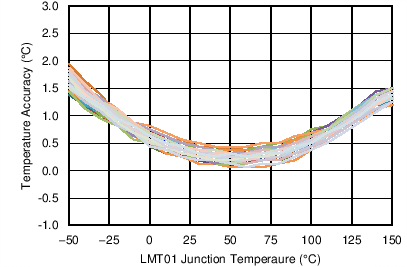

LMT01 C019_5.5V_SNIS189.png
Using Temp = (PC/4096 × 256°C ) – 50°C
VP – VN = 5.5V
Figure 16. Accuracy Using Linear Transfer Function
LMT01 C003_SNIS189.png
VP – VN = 3.3 V

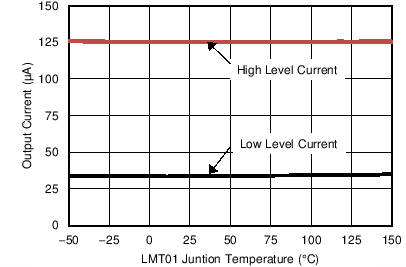

Figure 18. Output Current vs Temperature
LMT01 C032_MovAirRespT_SNIS189.png
VP – VN = 3.3 V Air Flow = 2.34 meters/sec
TINITIAL = 23°C, TFINAL = 70°C

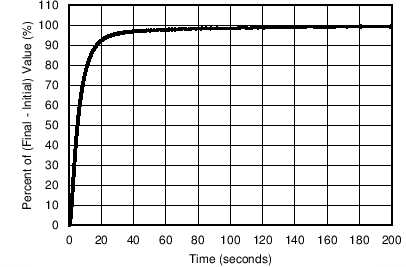

Figure 20. Thermal Response in Moving Air (TO92S/LPG Package)

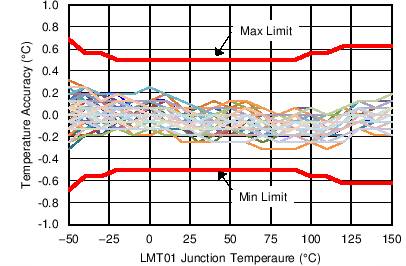

LMT01 C016_2p4V_SNIS189.png Figure 3. Accuracy vs LMT01 Junction Temperature
LMT01 C014_3V_SNIS189.png Figure 5. Accuracy vs LMT01 Junction Temperature

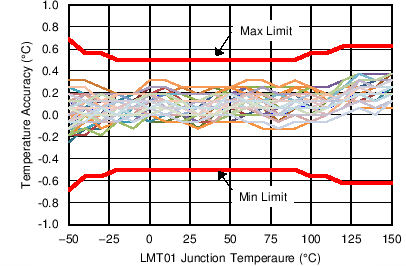

LMT01 C012_5V_SNIS189.png Figure 7. Accuracy vs LMT01 Junction Temperature

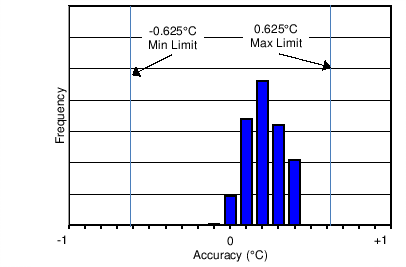

LMT01 C0025_SNIS189.png Figure 9. Accuracy Histogram at 150°C

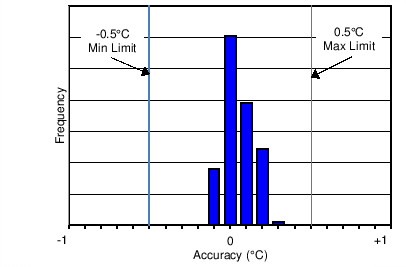

LMT01 C0023_SNIS189.png Figure 11. Accuracy Histogram at –20°C

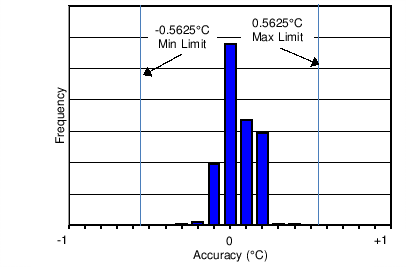

LMT01 C0021_SNIS189.png Figure 13. Accuracy Histogram at -40°C

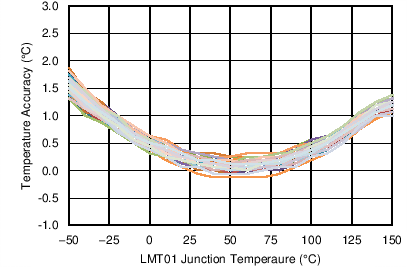

LMT01 C018_2.15V_SNIS189.png
Using Temp = (PC/4096 × 256°C ) – 50°C
VP – VN = 2.15 V
Figure 15. Accuracy Using Linear Transfer Function
LMT01 C004_SNIS189.png
TA = 30°C

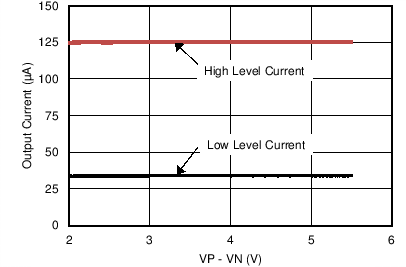

Figure 17. Output Current vs VP-VN Voltage

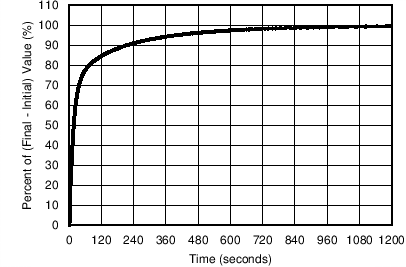

LMT01 C033_StlAirRespT_SNIS189.png
VP – VN = 3.3 V
TINITIAL = 23°C, TFINAL = 70°C
Figure 19. Thermal Response in Still Air (TO92S/LPG Package)
LMT01 C031_OilRespT_SNIS189.png
VP – VN = 3.3 V
TINITIAL = 23°C, TFINAL = 70°C

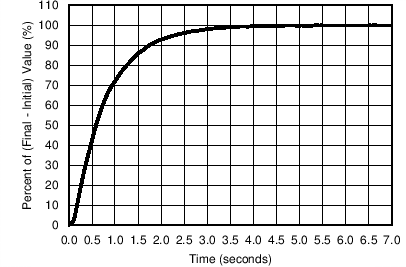

Figure 21. Thermal Response in Stirred Oil (TO92S/LPG Package)
