TIDT362 October   2023



  1.   1
  2.   Description
  3.   Features
  4.   Applications
  5. 1Test Prerequisites
    1. 1.1 Voltage and Current Requirements
    2. 1.2 Required Equipment
    3. 1.3 Considerations
    4. 1.4 Dimensions
  6. 2Testing and Results
    1. 2.1 Efficiency Graphs
    2. 2.2 Efficiency Data
    3. 2.3 Thermal Images
  7. 3Waveforms
    1. 3.1 Switching
    2. 3.2 Output Voltage Ripple
    3. 3.3 Load Transients

2.3 Thermal Images

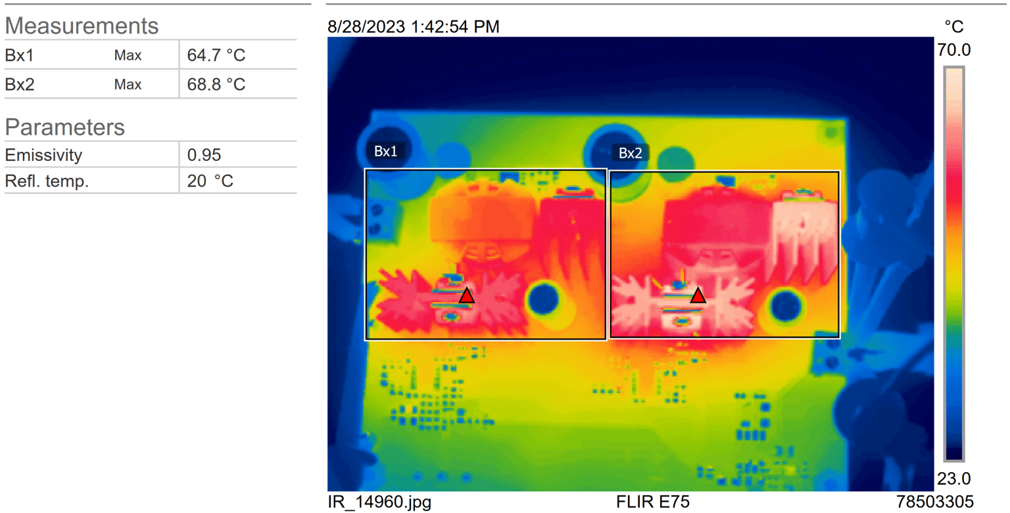

Thermal image was captured after 15 minutes of operation with 48-V input, 3-A loading, with no airflow.

GUID-20231018-SS0I-NLDW-ZKQH-S0K1W9D5SRR0-low.png Figure 2-2 Thermal Image
