Thermal Images

All thermal images were captured with the DUT at 25ºC ambient, after a 30 minute warm up. The output was loaded with 40 W.

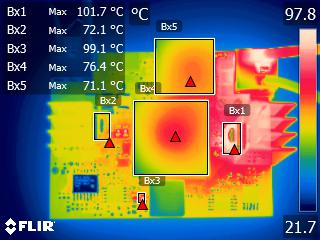

GUID-20220314-SS0I-PJ5B-8NHL-J9G34NBGX39T-low.jpgFigure 2-3 60-VDC Input
GUID-20220314-SS0I-G7BF-VKN8-GBLXGMHR9J7H-low.jpgFigure 2-5 120-VDC Input
GUID-20220314-SS0I-V3GB-GGPZ-VKLWBXN4XBCG-low.jpgFigure 2-4 90-VDC Input
