INSTALLATION GUIDE

Hercules Software Diagnostic Library CSP Without LDRA

Hercules™ Software Diagnostic Library CSP Without LDRA

This document serves as the Installation Guide for the Hercules Software Diagnostic Library-TAU that contains the items:

  • Hercules Software Diagnostic Library CSP Documents and Reports
  • Hercules Software Diagnostic Library Test Automation unit (Hercules Software Diagnostic library TAU)

Trademarks

Hercules, Code Composer Studio are registered trademarks of Texas Instruments.

All other trademarks are the property of their respective owners.

1 Software Prerequisite

  • OS: Windows Operating System version 7 or higher
  • Code Composer Studio™ 5.4 (or higher)
  • Microsoft Office 2007 (or higher)
  • Perl 5.x. Download Link → http://www.perl.org/get.html#win32
  • LDRAunit-TI-Qual 9.4.3 (or higher)
  • NOTE

    LDRA Unit is not provided as a part of the CSP download. To re-run the unit tests using the included Test automation unit software, customers are required to purchase and install LDRA Unit software from LDRA. This guide explains LDRA Unit installation settings required for the Test automation unit. For more information, see the Hercules Software Diagnostic Library CSP without LDRA User's Guide.

2 Steps to Install Hercules Software Diagnostic Library -TAU

  1. Select Installer
  2. Run Software Diagnostic Library-TAU-<device>-xx.yy.zz-installer.exe

  3. Choosing Install Components
  4. Select all the visible components (as shown in Figure 1). Click next to start the installation.

    SDL_CSP_1.gifFigure 1. Install Components

3 Setting Up LDRA Unit

  1. LDRA Unit – Compiler Selection

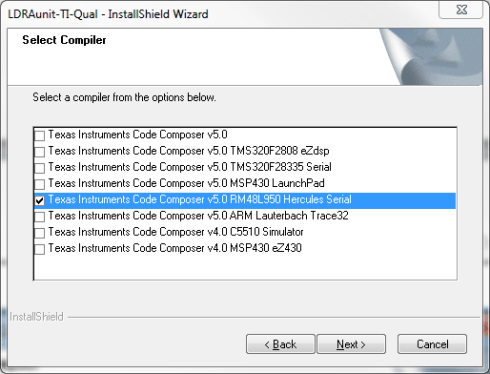

  2. Choose Texas Instruments Code Composer v5.0 RM48L950 Hercules Serial (as shown in Figure 2).

    select_compiler.gifFigure 2. Select Compiler
  3. LDRA Unit – Coverage Selection
  4. Leave it Default.

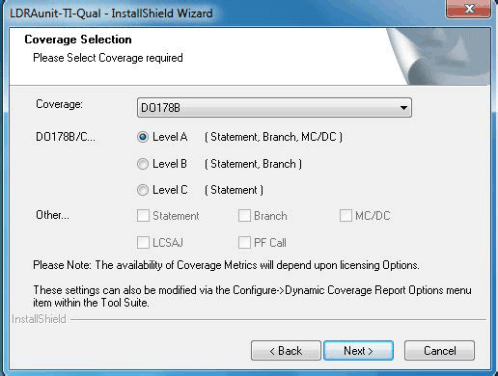

    coverage_selection.gifFigure 3. Coverage Selection
  5. LDRA Unit – Source Code Browser Selection
  6. Leave it Default or Browse to the desired Editor.

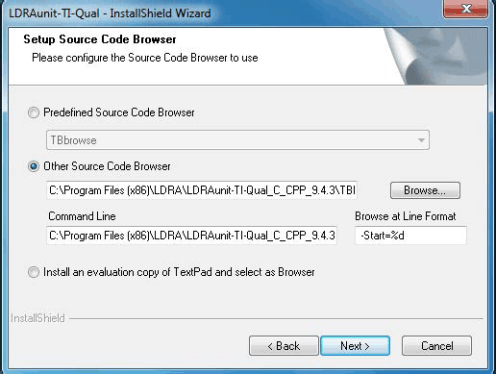

    source_code_browser.gifFigure 4. Source Code Browser Selection
  7. LDRA Unit – Choose TI CCS Install Path
  8. Default: c:\ti\ccs5\, browse to the latest TI CCS installation folder CCS5 or CCS6

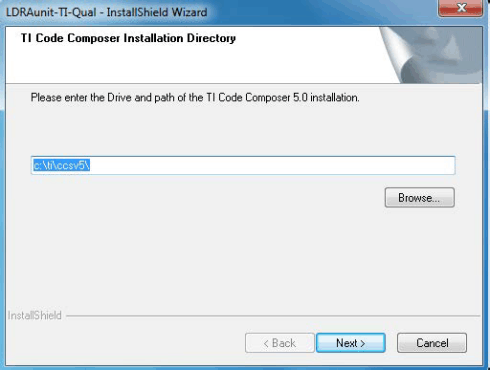

    install_path.gifFigure 5. TI Code Composer Installation Directory
  9. LDRA Unit – Project Configuration
  10. Leave it Default to LDRA.

    project_configuration.gifFigure 6. Project Configuration
  11. LDRA Unit – Check LDRA FlexLM Server Status
  12. After Installation of the LDRA Unit and before using the Hercules Software Diagnostic Library TAU, check whether the LDRA FlexLM license Server is up and running by using the steps shown in Figure 7 and Figure 8.

    NOTE

    License Configuration Manager must be run as Admin.

    license_config_manager.gifFigure 7. License Configuration Manager
    license_config_945.gifFigure 8. License Configuration Manager 9.4.3

    NOTE

    IF you see FlexLM Server Status as red_ex.gif, either the License is expired or the FlexLM service is not started. Restart or Start the FlexLM License Service in Windows as shown in Figure 9.

    flexlm_license_service.gifFigure 9. Start/Restart FlexLM License Service

4 References

  • Texas Instruments: Hercules Software Diagnostic Library CSP Without LDRA User's Guide
