2.8 Input Voltage Ripple

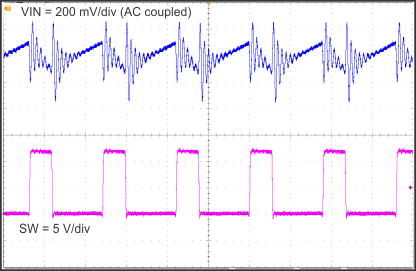

Figure 2-10 shows the TPS54334EVM-722 input voltage ripple. The output current is the rated full load of
3 A and VIN = 12 V. The ripple voltage is measured directly across the input capacitors.

GUID-3EEBC98D-A621-4C4D-B18E-DD82D1E4AC00-low.gif Figure 2-10 TPS54334EVM-722 Input Ripple
