Start-Up

The TPS54339EVM-056 start-up waveforms relative to VIN and EN are shown in Figure 4-9 and Figure 4-10. RLOAD = 1 Ω.

GUID-C0B48226-292D-4854-85A5-947B8042A572-low.gif Figure 4-9 TPS54339EVM-056 Start-Up Relative to VIN with SS

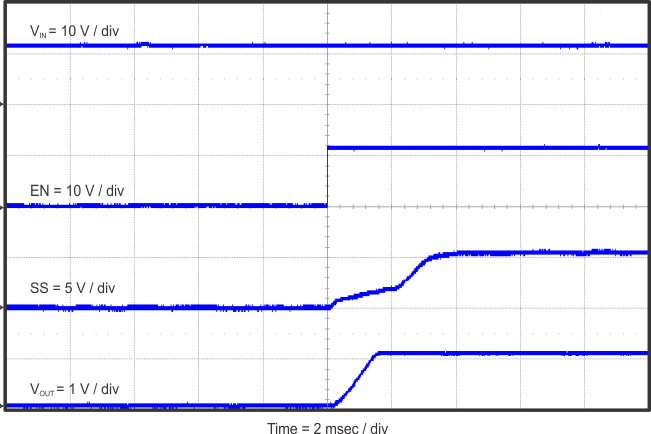

GUID-0DD509B5-88FD-4FA3-AB98-87F537E1599A-low.gif Figure 4-10 TPS54339EVM-056 Start-Up Relative to EN with SS
