Schematic

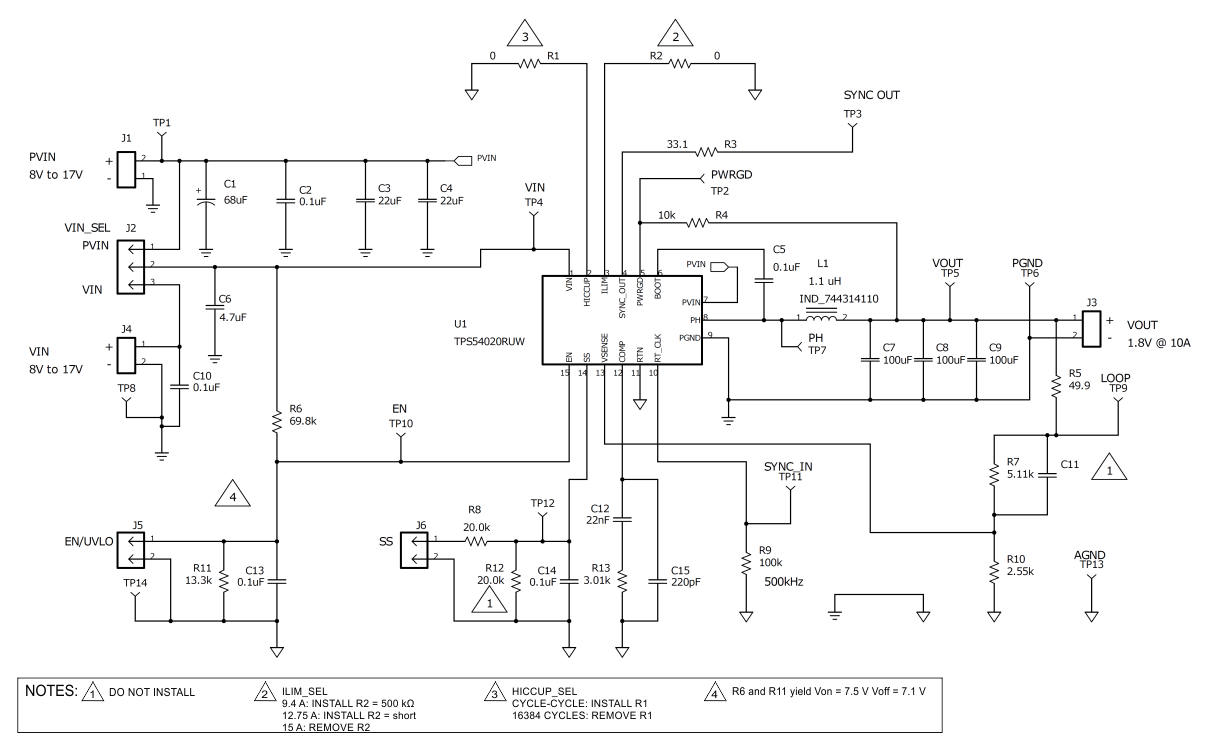

Figure 4-1 shows the schematic for the EVM.

GUID-7C127FE5-63CF-47F5-89E0-8F8C0CE16449-low.gifFigure 4-1 TPS54020EVM-082 Schematic
