Input Voltage Ripple

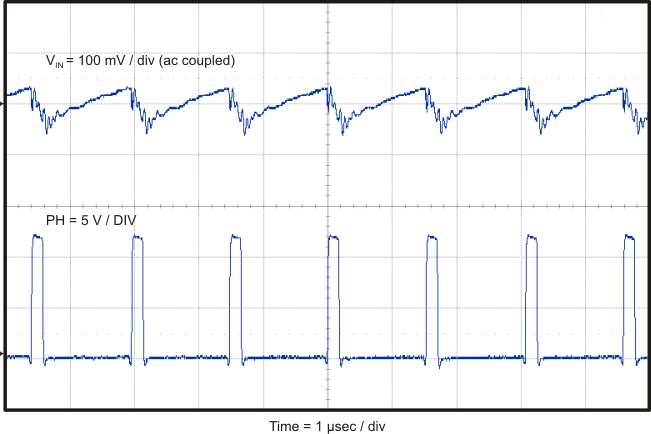

The TPS54528EVM-052 input voltage ripple is shown in Figure 4-10. The output current is the rated full load of 5 A.

GUID-700E090E-9B40-40D8-AFE5-511A72523F5F-low.gifFigure 4-10 TPS54528EVM-052 Input Voltage Ripple
