4.5 Line Regulation

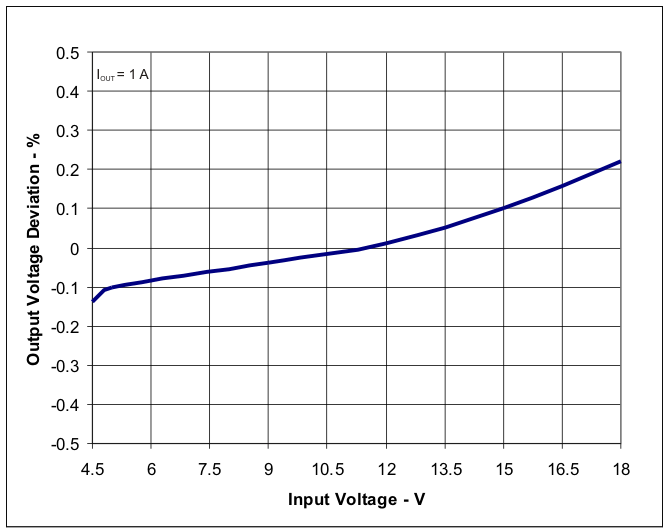

The line regulation for the TPS54227EVM-686 is shown in Figure 4-5.

GUID-1D5CD05C-993F-490C-B836-EE21C031314F-low.gif Figure 4-5 TPS54227EVM-686 Line Regulation
