Output Voltage Ripple

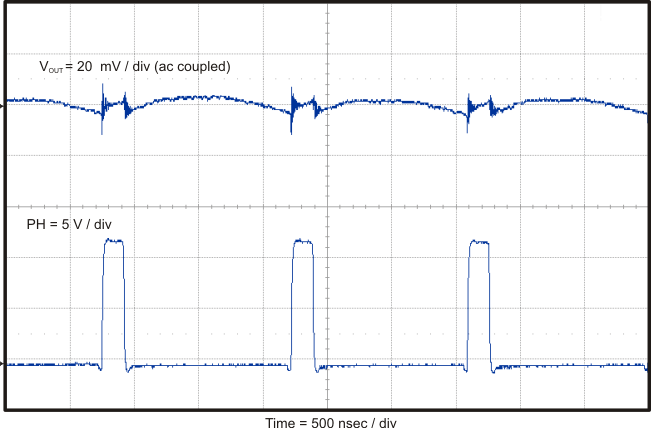

The TPS54429EVM-608 output voltage ripple is shown in Figure 4-6. The output current is the rated full load of 4.5 A.

GUID-D6350D11-A6C2-43FA-82BF-13A1C328BA38-low.gifFigure 4-6 TPS54429EVM-608 Output Voltage Ripple
