Using the eZ-FET to Program the MSP430FR2355

The eZ-FET Debug Probe on the MSP430FR2355 LaunchPad uses a SPI-by-Wire JTAG interface to program the MSP430FR2355 MCU on the MCF8315EVM. Consult the MSP430 LaunchPad Development Kits for MSP430 LaunchPads that include an onboard eZ-FET Debug Probe.

  1. Remove the GND, 3V3, SBWTDIO, and SBWTCK jumpers from the MSP430 LaunchPad.
  2. Connect the top pins on the eZ-FET side of the LaunchPad of the GND, 3V3, SBWTCK, and SBWTDIO signals to their respective pins on J4 of the MCF8315EVM as shown in Table 7-1 and Figure 7-2.
  3. Connect a micro-USB cable to the MSP430 LaunchPad and the PC.
  4. Click on the Build Project icon or “Ctrl” + B to ensure the project builds successfully. Accept any updates if needed from the Console.
  5. Click on Debug Project to set up a debug session and press the Play button to run the code.
  6. Stop the debug session, close Code Composer Studio, disconnect the SPI-by-Wire jumpers, and unplug the micro-USB cable from the MSP430 LaunchPad.
Table 7-1 SPY-BI-Wire Connections Needed to Program MSP430FR2355

MSP430 LaunchPad™ (eZ-FET Debug Probe Side) (J101)

MCF8315EVM 4-pin SPI-by-Wire Header (J4)

GND

GND

3V3

3.3V

SBWTDIO

SBWTDIO

SBWTCK

SBWTCK

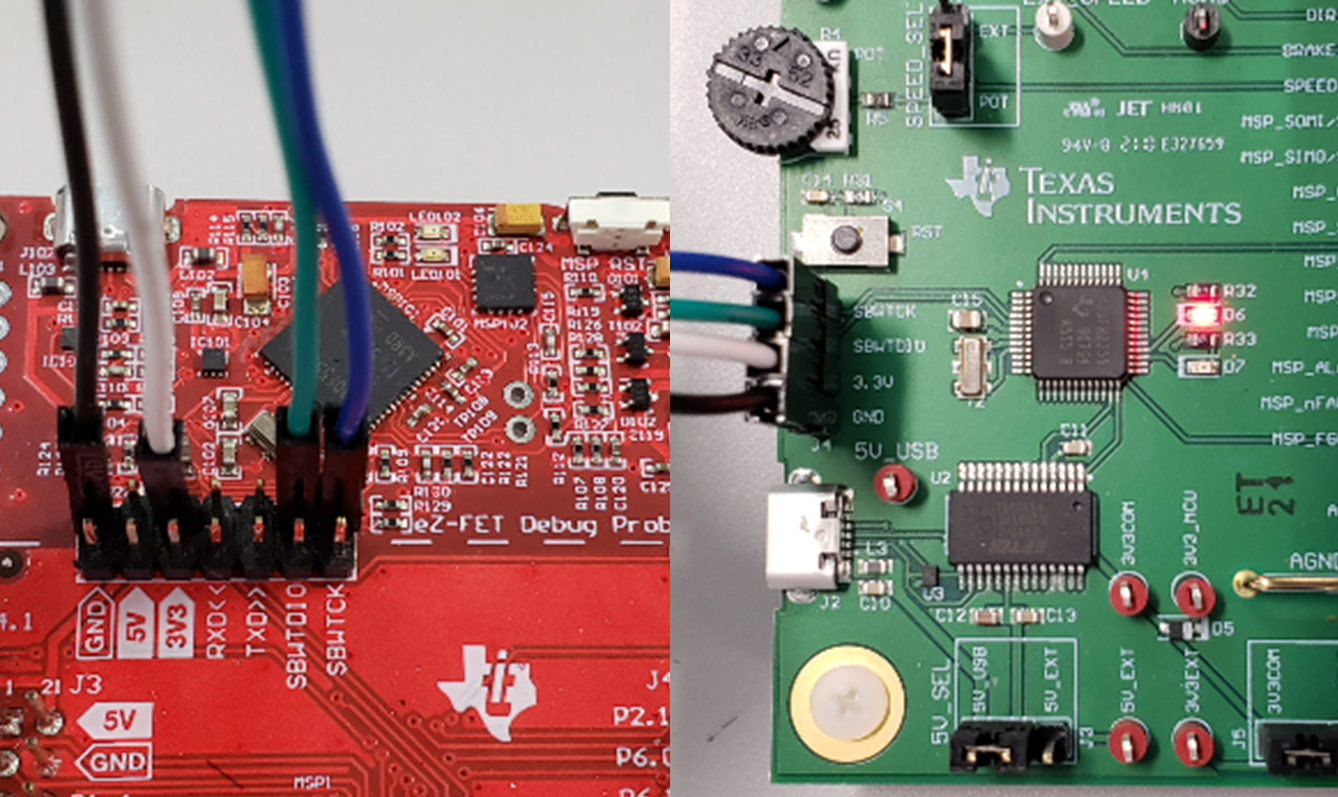

GUID-6EAE3833-7A46-45C0-80DA-1A4BC9380C50-low.pngFigure 7-2 MSP430 LaunchPad™ eZ-FET Probe Connected to MCF8315EVM
